PE42522 SPDT 26.5Ghz Instrumentation Switch

Manufacturing Company :

PE42522 SPDT 26.5Ghz Instrumentation Switch

SPDT, 26.5 GHz, Absorptive, 50Ω Instrumentation Switch

SG$ 32.34

This combination does not exist.

Lead Time : 22.0 weeks

Add to Cart Get Best Price

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Psemi

pSemi Corporation is a Murata company driving semiconductor integration. pSemi builds on Peregrine Semiconductor’s 30-year legacy of technology advancements and strong IP portfolio but with a new mission—to enhance Murata’s world-class capabilities with high-performance semiconductors. With a strong foundation in RF integration, pSemi’s product portfolio now spans power management, connected sensors, optical transceivers, antenna tuning and RF frontends. These intelligent and efficient semiconductors enable advanced modules for smartphones, base stations, personal computers, electric vehicles, data centers, IoT devices and healthcare.

FIND OUT MORE

Overview

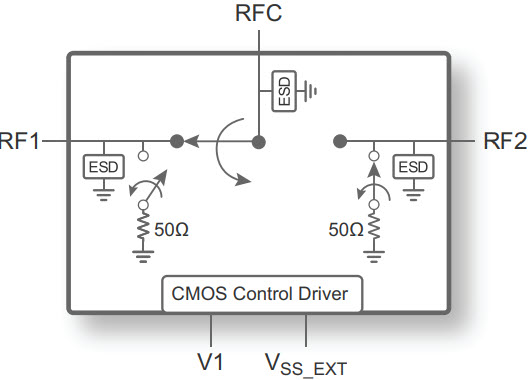

The PE42522 is a HaRP™ technology-enhanced absorptive SPDT RF switch that supports a broad frequency range from 9 kHz to 26.5 GHz. This broadband general-purpose switch offers excellent isolation, high linearity performance, and has exceptional settling time making this device ideal for many broadband wireless applications. No blocking capacitors are required if DC voltage is not present on the RF ports

Features

Broad frequency support from 9 kHz to 26.5 GHz

High port to port isolation

HaRP™ technology-enhanced

Improved high-frequency insertion loss and return loss performance with external matching

High ESD performance of 3.5 kV HBM all pins

Packaging: 29-lead 4 × 4 mm LGA

Datasheet

Material Declaration

RoHS Compliance Certificate

REACH Compliance Certificate

S-Parameters

Schematic/B.O.M.

Gerber Files

Application Note: High Frequency Performance Improvement Through Narrowband Matching

Application Note: Soldering Guidelines for Land Grid Array Packages

Application Note: Thermal Characterization

The PE42522 is a HaRP™ technology-enhanced absorptive SPDT RF switch that supports a broad frequency range from 9 kHz to 26.5 GHz. This broadband general-purpose switch offers excellent isolation, high linearity performance and has exceptional settling time making this device ideal for many broadband wireless applications. No blocking capacitors are required if DC voltage is not present on the RF ports.

Key Features
