PE42543 SP4T, Fast switching Instrumentation Switch

SP4T, 18 GHz, Fast Switching, Absorptive, 50Ω Instrumentation Switch

    SG$ 60.53

    This combination does not exist.

    Lead Time : 22.0 weeks

    Add to Cart Get Best Price

    SP4T, 18 GHz, Fast Switching, Absorptive, 50Ω Instrumentation Switch

    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days

    Psemi


    pSemi Corporation is a Murata company driving semiconductor integration. pSemi builds on Peregrine Semiconductor’s 30-year legacy of technology advancements and strong IP portfolio but with a new mission—to enhance Murata’s world-class capabilities with high-performance semiconductors. With a strong foundation in RF integration, pSemi’s product portfolio now spans power management, connected sensors, optical transceivers, antenna tuning and RF frontends. These intelligent and efficient semiconductors enable advanced modules for smartphones, base stations, personal computers, electric vehicles, data centers, IoT devices and healthcare.


    FIND OUT MORE

    Overview

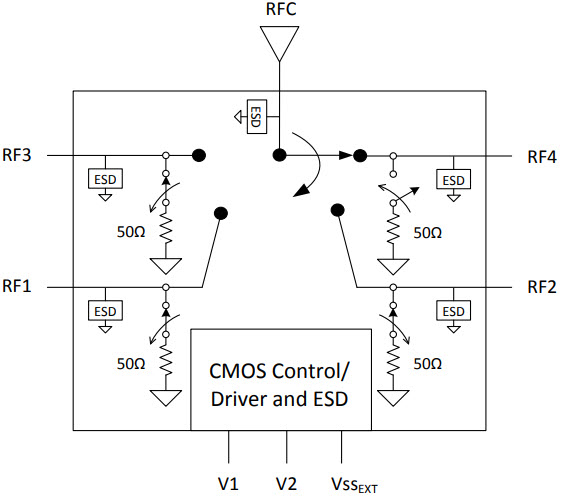

    The PE42543 is an absorptive SP4T RF switch designed for use in test/ATE, microwave, and other wireless applications. This broadband general purpose switch is a pin-compatible version of the PE42542 with a faster switching time and settling time. It exhibits low insertion loss, high isolation, and linearity performance from 9 kHz through 18 GHz. No blocking capacitors are required if DC voltage is not present on the RF ports.

    Features

        Fast switching time of 500 ns
        Low insertion loss
        High isolation
        ESD performance
        Packaging: 29-lead 4 × 4 mm LGA
    This is a preview of the recently viewed products by the user.
    Once the user has seen at least one product this snippet will be visible.

    Recently viewed Products


    The PE42543 is an absorptive SP4T RF switch designed for use in test/ATE, microwave and other wireless applications. This broadband general-purpose switch is a pin-compatible version of the PE42542 with a faster switching time and settling time. It exhibits low insertion loss, high isolation and linearity performance from 9 kHz through 18 GHz. No blocking capacitors are required if DC voltage is not present on the RF ports.

    Key Features

        Fast switching time of 500 ns
        Low insertion loss
        High isolation
        ESD performance
        Packaging: 29-lead 4 × 4 mm LGA


    Specifications

    DescriptionSP4T (A)
    Min Freq.9 kHz
    Max Freq.18 GHz
    Max Typ. IL (dB)4.10
    Min Typ. IL (dB)0.70
    Max Typ. Iso (dB)90
    Min Typ. Iso (dB)29
    P1/0.1dB (dBm)33.0/-
    IIP3 (dBm)59
    Package29L LGA
    Package (mm)4x4
