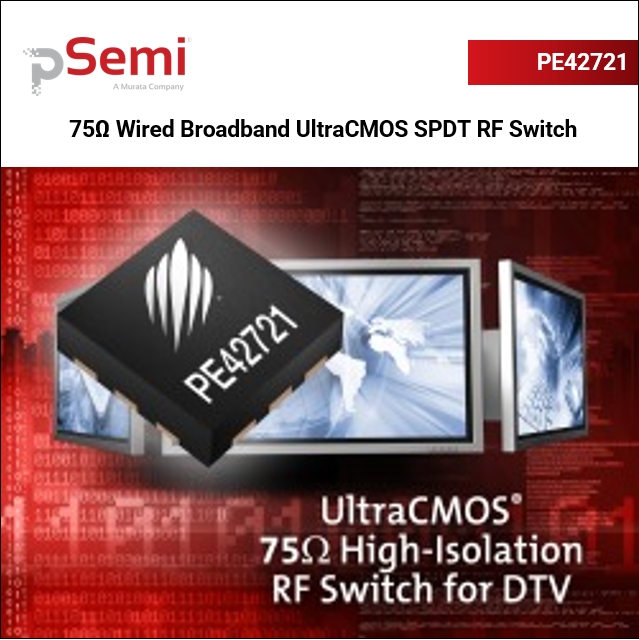

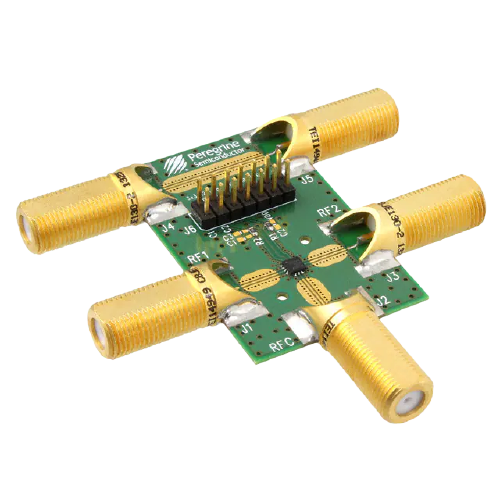

PE42721 75Ω Wired Broadband UltraCMOS SPDT RF Switch
SPDT, CATV, High Iso, Absorptive RF Switch
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Overview
The PE42721 is a HaRP™ technology-enhanced absorptive 75Ω SPDT RF switch developed on the UltraCMOS® process technology. PE42721 is a highly linear device delivering high isolation and very low insertion loss performance. It is designed for broadband applications such as TV tuner modules, CATV signal switching and distribution, DTV, multi-tuner digital video recorders (DVRs), and set-top boxes. PE42721 supports +1.8V control logic and offers high ESD protection. PE42721 is pin-compatible to PE42750. In addition, no blocking capacitors are required if DC voltage is not present on the RF ports.

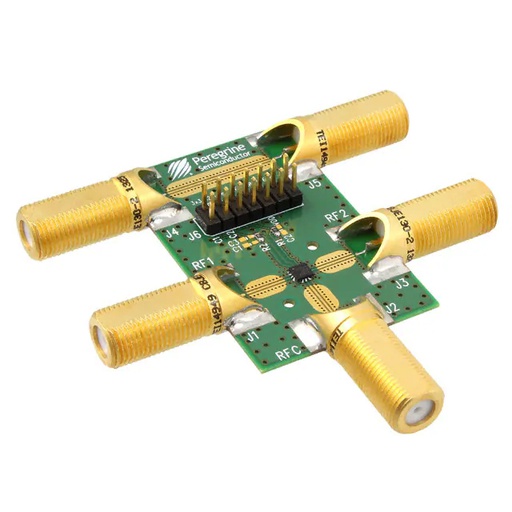

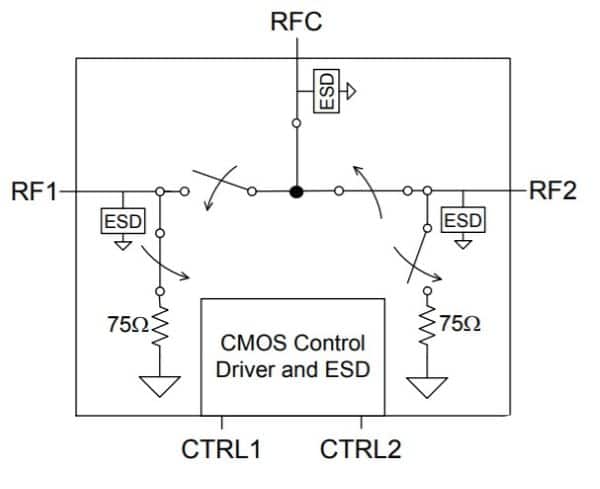

![](/web/image/73182-4e163a3d/pe42721-schem.jpg?access_token=e653bfbc-2a77-4f24-b641-f3bd18ac35e8)
![](/web/image/73183-a0e70671/image-removebg-preview%20%2878%29.png?access_token=8a26106f-0c70-4c85-9202-9c9c65ad64c7)
Features
Once the user has seen at least one product this snippet will be visible.
Recently viewed Products
The PE42721 is a HaRP™ technology-enhanced absorptive 75Ω SPDT RF switch developed on the UltraCMOS® process technology. PE42721 is a highly linear device delivering high isolation and very low insertion loss performance. It is designed for broadband applications such as TV tuner modules, CATV signal switching and distribution, DTV, multi-tuner digital video recorders (DVRs), and set-top boxes. PE42721 supports +1.8V control logic and offers high ESD protection. PE42721 is pin-compatible to PE42750. In addition, no blocking capacitors are required if DC voltage is not present on the RF ports.
Description | SPDT (A) |
Min Freq. | 5 MHz |
Max Freq. | 2200 MHz |
Max Typ. IL (dB) | 0.65 |
Min Typ. IL (dB) | 0.40 |
Max Typ. Iso (dB) | 85 |
Min Typ. Iso (dB) | 53 |
P1/0.1dB (dBm) | 27.0/- |
IIP3 (dBm) | 60 |
Package | 12L QFN |
Package (mm) | 3×3 |
