PE42723 75Ω Wired Broadband SPDT RF Switches

SPDT, DOCSIS3.X, Reflective RF Switch

    SG$ 6.02

    This combination does not exist.

    Lead Time : 22.0 weeks

    Add to Cart Get Best Price

    SPDT, DOCSIS3.X, Reflective RF Switch

    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days

    Psemi


    pSemi Corporation is a Murata company driving semiconductor integration. pSemi builds on Peregrine Semiconductor’s 30-year legacy of technology advancements and strong IP portfolio but with a new mission—to enhance Murata’s world-class capabilities with high-performance semiconductors. With a strong foundation in RF integration, pSemi’s product portfolio now spans power management, connected sensors, optical transceivers, antenna tuning and RF frontends. These intelligent and efficient semiconductors enable advanced modules for smartphones, base stations, personal computers, electric vehicles, data centers, IoT devices and healthcare.


    FIND OUT MORE

    Overview

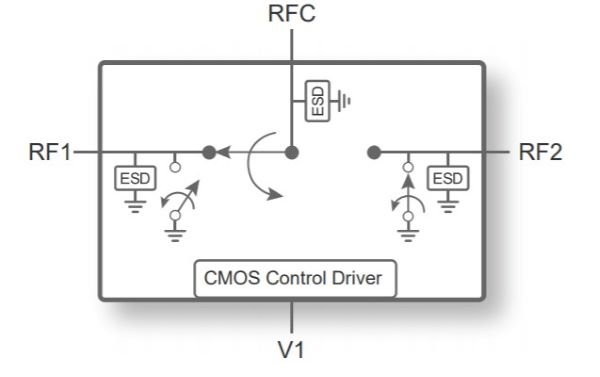

    The PE42723 is a HaRP™­ technology-enhanced reflective SPDT RF switch designed for use in cable applications including DOCSIS 3.0/1 cable modem, set-top box and residential gateway. It delivers high linearity and excellent harmonics performance in the 5–1794 MHz band. It also features low insertion loss and high isolation performance making the PE42723 ideal for DOCSIS 3.1 applications.

    Features

        Supports DOCSIS 3.0/1 requirements
        Exceptional harmonics
        2fo of –121 dBc @ 17 MHz
        3fo of –140 dBc @ 17 MHz
        Best in class linearity across frequency band
        Low insertion loss and high isolation performance
        Insertion loss of 0.3 dB @ 1218 MHz
        Isolation of 54 dB @ 204 MHz
        High ESD performance of 3 kV HBM
        Packaging: 12-lead 3 × 3 mm QFN
    This is a preview of the recently viewed products by the user.
    Once the user has seen at least one product this snippet will be visible.

    Recently viewed Products


    The PE42723 is a HaRP™­ technology-enhanced reflective SPDT RF switch designed for use in cable applications including DOCSIS 3.0/1 cable modem, set-top box and residential gateway. It delivers high linearity and excellent harmonics performance in the 5–1794 MHz band. It also features low insertion loss and high isolation performance making the PE42723 ideal for DOCSIS 3.1 applications.

    Key Features

        Supports DOCSIS 3.0/1 requirements
        Exceptional harmonics
        2fo of –121 dBc @ 17 MHz
        3fo of –140 dBc @ 17 MHz
        Best in class linearity across the frequency band
        Low insertion loss and high isolation performance
        Insertion loss of 0.3 dB @ 1218 MHz
        Isolation of 54 dB @ 204 MHz
        High ESD performance of 3 kV HBM
        Packaging: 12-lead 3 × 3 mm QFN


    Specifications

    DescriptionSPDT (R)
    Min Freq.5 MHz
    Max Freq.1794 MHZ
    Max Typ. IL (dB)0.40
    Min Typ. IL (dB)0.10
    Max Typ. Iso (dB)54
    Min Typ. Iso (dB)34
    P1/0.1dB (dBm)-/38.0
    IIP3 (dBm)-
    Package12L QFN
    Package (mm)3x3
