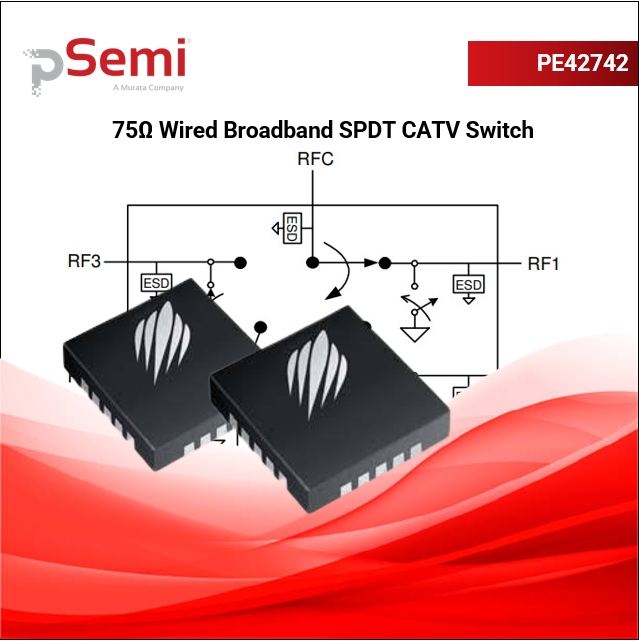

PE42742 75Ω Wired Broadband SPDT CATV Switches

SPDT, CATV, High Iso, Absorptive, Unpowered RF Switch

    SG$ 1.89

    This combination does not exist.

    Lead Time : 22.0 weeks

    Add to Cart Get Best Price

    SPDT, CATV, High Iso, Absorptive, Unpowered RF Switch

    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days

    Psemi


    pSemi Corporation is a Murata company driving semiconductor integration. pSemi builds on Peregrine Semiconductor’s 30-year legacy of technology advancements and strong IP portfolio but with a new mission—to enhance Murata’s world-class capabilities with high-performance semiconductors. With a strong foundation in RF integration, pSemi’s product portfolio now spans power management, connected sensors, optical transceivers, antenna tuning and RF frontends. These intelligent and efficient semiconductors enable advanced modules for smartphones, base stations, personal computers, electric vehicles, data centers, IoT devices and healthcare.


    FIND OUT MORE

    Overview

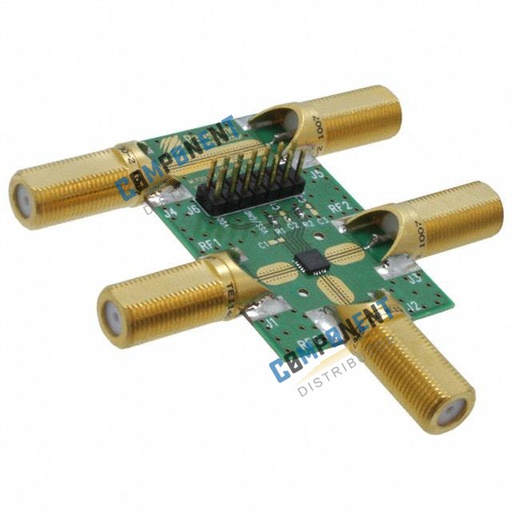

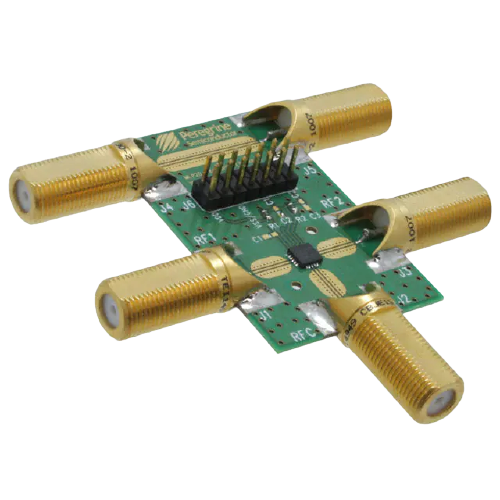

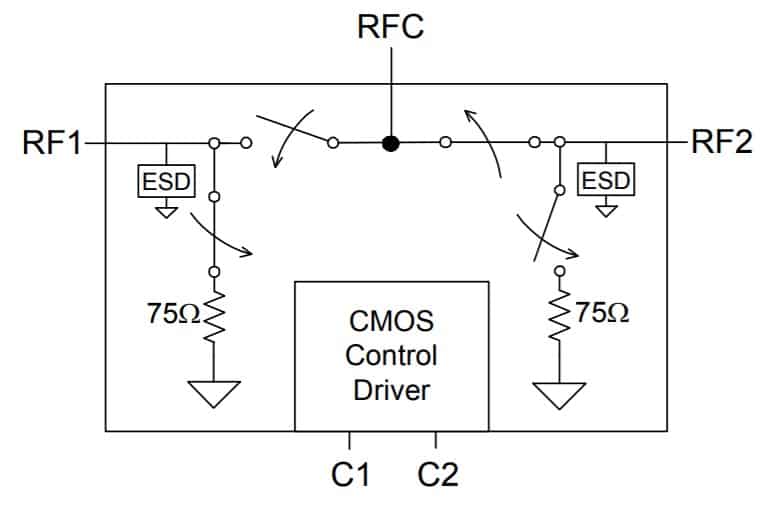

    The PE42742 is an SPDT UltraCMOS® switch designed for broadband applications such as CATV, DTV, multi-tuner DVR, set-top box, PCTV, and game boxes. It meets FCC 15.115 spec of 80 dB isolation @ 216 MHz and offers high isolation and low insertion loss in both a powered and a unique unpowered default state. The PE42742 covers a broad frequency range from 5 MHz to beyond 2200 MHz with a single positive supply and CMOS control. It provides a smaller, cost-effective, more reliable, and manufacturable alternative to mechanical relays in set-top box applications.

    Features

        Meets FCC 15.115 spec of 80 dB isolation @ 216 MHz
        Unpowered operational state
        3500 V HBM ESD tolerance, all pins
        CTB performance of 90 dBc
        High isolation: 63 dB @ 1000 MHz
        Low insertion loss: typically 0.5 dB @ 5 MHz, 0.8 dB @ 1000 MHz
        CMOS single-pin control with logic select
        Single +3V supply operation
        Low current consumption: 8 μA
        Packaging: 20-lead 4 × 4 mm QFN
    This is a preview of the recently viewed products by the user.
    Once the user has seen at least one product this snippet will be visible.

    Recently viewed Products


    The PE42742 is an SPDT UltraCMOS® switch designed for broadband applications such as CATV, DTV, multi-tuner DVR, set-top box, PCTV, and game boxes. It meets FCC 15.115 spec of 80 dB isolation @ 216 MHz and offers high isolation and low insertion loss in both a powered and a unique unpowered default state. The PE42742 covers a broad frequency range from 5 MHz to beyond 2200 MHz with a single positive supply and CMOS control. It provides a smaller, cost-effective, more reliable and manufacturable alternative to mechanical relays in set-top box applications.

    Key Features

        Meets FCC 15.115 spec of 80 dB isolation @ 216 MHz
        Unpowered operational state
        3500 V HBM ESD tolerance, all pins
        CTB performance of 90 dBc
        High isolation: 63 dB @ 1000 MHz
        Low insertion loss: typically 0.5 dB @ 5 MHz, 0.8 dB @ 1000 MHz
        CMOS single-pin control with logic select
        Single +3V supply operation
        Low current consumption: 8 μA
        Packaging: 20-lead 4 × 4 mm QFN

    Specifications

    DescriptionSPDT (A)
    Min Freq.5 MHz
    Max Freq.2200 MHz
    Max Typ. IL (dB)1.70
    Min Typ. IL (dB)0.45
    Max Typ. Iso (dB)94
    Min Typ. Iso (dB)53.6
    P1/0.1dB (dBm)32.0/-
    IIP3 (dBm)53
    Package20L QFN
    Package (mm)4×4
