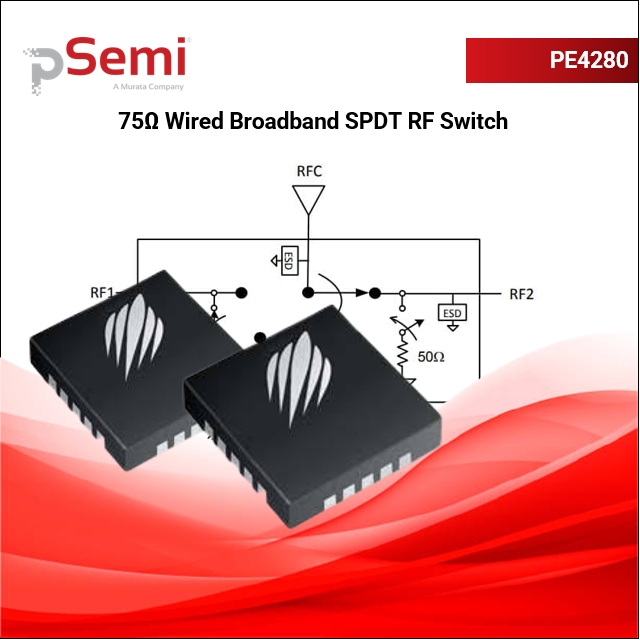

PE4280 75Ω Wired Broadband SPDT RF Switch

SPDT, CATV, High Iso, Absorptive RF Switch

    SG$ 1.08

    This combination does not exist.

    Lead Time : 22.0 weeks

    Add to Cart Get Best Price

    SPDT, CATV, High Iso, Absorptive RF Switch

    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days

    Psemi


    pSemi Corporation is a Murata company driving semiconductor integration. pSemi builds on Peregrine Semiconductor’s 30-year legacy of technology advancements and strong IP portfolio but with a new mission—to enhance Murata’s world-class capabilities with high-performance semiconductors. With a strong foundation in RF integration, pSemi’s product portfolio now spans power management, connected sensors, optical transceivers, antenna tuning and RF frontends. These intelligent and efficient semiconductors enable advanced modules for smartphones, base stations, personal computers, electric vehicles, data centers, IoT devices and healthcare.


    FIND OUT MORE

    Overview

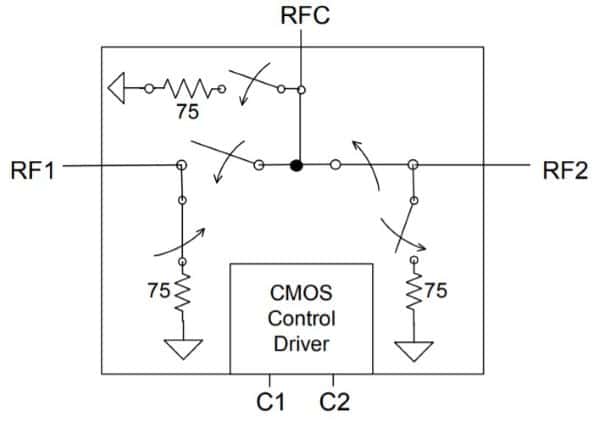

    The PE4280 is an UltraCMOS® switch designed for CATV applications, covering a broad frequency range from 5 MHz up to 2.2 GHz. This single-supply SPDT switch integrates a two-pin CMOS control interface. It also provides low insertion loss with extremely low bias requirements while operating on a single 3V supply. In a typical CATV application, the PE4280 provides for a cost-effective and manufacturable solution when compared to mechanical relays.

    Features

        75Ω characteristic impedance
        Integrated 75Ω terminations
        CTB performance of 85 dBc
        High isolation 60 dB at 1 GHz
        Low insertion loss
        High input IP3: 50 dBm
        CMOS two-pin control
        Single +3V supply operation
        Low current consumption: 8 μA
        Unique all off terminated mode
        Packaging: 4 × 4 × 0.85 mm QFN
    This is a preview of the recently viewed products by the user.
    Once the user has seen at least one product this snippet will be visible.

    Recently viewed Products


    The PE4280 is an UltraCMOS® switch designed for CATV applications, covering a broad frequency range from 5 MHz up to 2.2 GHz. This single-supply SPDT switch integrates a two-pin CMOS control interface. It also provides low insertion loss with extremely low bias requirements while operating on a single 3V supply. In a typical CATV application, the PE4280 provides for a cost-effective and manufacturable solution when compared to mechanical relays.

    Key Features

        75Ω characteristic impedance
        Integrated 75Ω terminations
        CTB performance of 85 dBc
        High isolation 60 dB at 1 GHz
        Low insertion loss
        High input IP3: 50 dBm
        CMOS two-pin control
        Single +3V supply operation
        Low current consumption: 8 μA
        Unique all off terminated mode
        Packaging: 4 × 4 × 0.85 mm QFN


    Specifications

    DescriptionSPDT (A)
    Min Freq.5 MHz
    Max Freq.2200 MHz
    Max Typ. IL (dB)1.10
    Min Typ. IL (dB)0.50
    Max Typ. Iso (dB)72
    Min Typ. Iso (dB)47
    P1/0.1dB (dBm)26.0/-
    IIP3 (dBm)50
    Package20L QFN
    Package (mm)4×4
