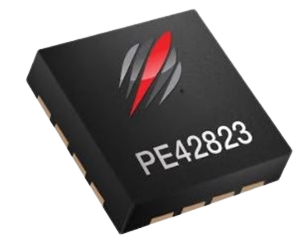

PE42823 High power UltraCMOS SPDT Switch

SPDT, High Power, Reflective, 50Ω RF Switch

    SG$ 20.52

    This combination does not exist.

    Lead Time : 22.0 weeks

    Add to Cart Get Best Price

    SPDT, High Power, Reflective, 50Ω RF Switch

    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days

    Psemi


    pSemi Corporation is a Murata company driving semiconductor integration. pSemi builds on Peregrine Semiconductor’s 30-year legacy of technology advancements and strong IP portfolio but with a new mission—to enhance Murata’s world-class capabilities with high-performance semiconductors. With a strong foundation in RF integration, pSemi’s product portfolio now spans power management, connected sensors, optical transceivers, antenna tuning and RF frontends. These intelligent and efficient semiconductors enable advanced modules for smartphones, base stations, personal computers, electric vehicles, data centers, IoT devices and healthcare.


    FIND OUT MORE

    Overview

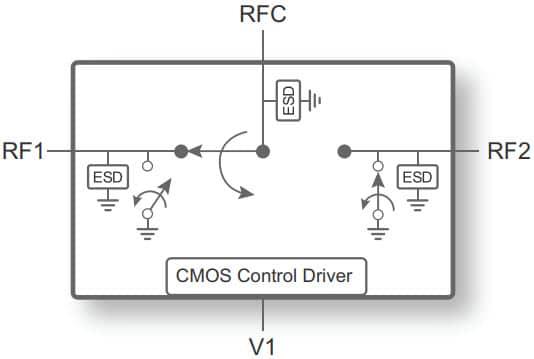

    The PE42823 is a HaRP™ technology-enhanced 50Ω SPDT RF protection switch designed for use in high power and high-performance wireless infrastructure applications such as macrocells supporting frequencies up to 6 GHz. This switch features high linearity, which remains invariant across the full supply range. The PE42823 also features exceptional isolation, fast switching time and is offered in a 16-lead 3 × 3 × 0.75 mm

    Features

        Excellent single-event peak power handling of 51 dBm LTE
        Exceptional linearity performance
        Extended operating temperature of +105°C
        High ESD performance of 4.5 kV HBM on RF pins to ground
        Packaging: 16-lead 3 × 3 × 0.75 mm QFN
    This is a preview of the recently viewed products by the user.
    Once the user has seen at least one product this snippet will be visible.

    Recently viewed Products


    The PE42823 is a HaRP™ technology-enhanced 50Ω SPDT RF protection switch designed for use in high power and high-performance wireless infrastructure applications such as macrocells supporting frequencies up to 6 GHz. This switch features high linearity, which remains invariant across the full supply range. The PE42823 also features exceptional isolation, fast switching time and is offered in a 16-lead 3 × 3 × 0.75 mm


    Specifications

    DescriptionSPDT (R)
    Min Freq.700 MHz
    Max Freq.6 GHz
    Max Typ. IL (dB)1.28
    Min Typ. IL (dB)0.39
    Max Typ. Iso (dB)59
    Min Typ. Iso (dB)31
    P1/0.1dB (dBm)46.0/-
    IIP3 (dBm)70
    Package16L QFN
    Package (mm)3x3
