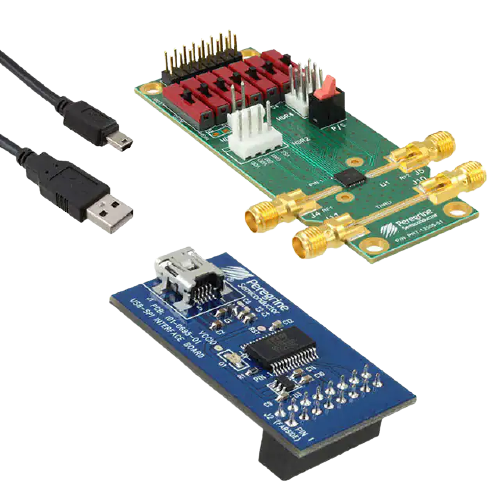

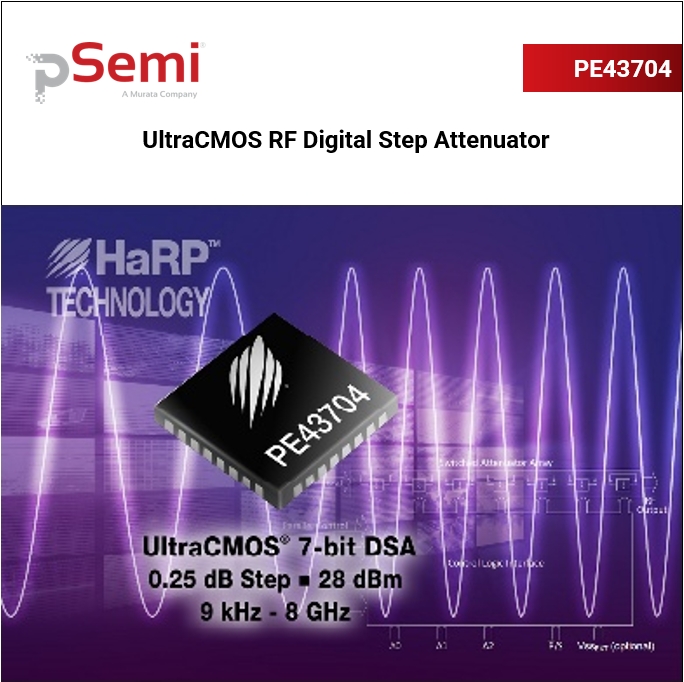

PE43704 UltraCMOS® RF Digital Step Attenuator

50Ω 7Bit 31.75dB 0.25dB, 0.5dB 1.0dB Digital Step Attenuator, optional ext. Vss

    SG$ 19.60

    This combination does not exist.

    Lead Time : 22.0 weeks

    Add to Cart Get Best Price

    50Ω 7Bit 31.75dB 0.25dB, 0.5dB
    1.0dB Digital Step Attenuator, optional ext. Vss


    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days

    Psemi


    pSemi Corporation is a Murata company driving semiconductor integration. pSemi builds on Peregrine Semiconductor’s 30-year legacy of technology advancements and strong IP portfolio but with a new mission—to enhance Murata’s world-class capabilities with high-performance semiconductors. With a strong foundation in RF integration, pSemi’s product portfolio now spans power management, connected sensors, optical transceivers, antenna tuning and RF frontends. These intelligent and efficient semiconductors enable advanced modules for smartphones, base stations, personal computers, electric vehicles, data centers, IoT devices and healthcare.


    FIND OUT MORE

    Overview

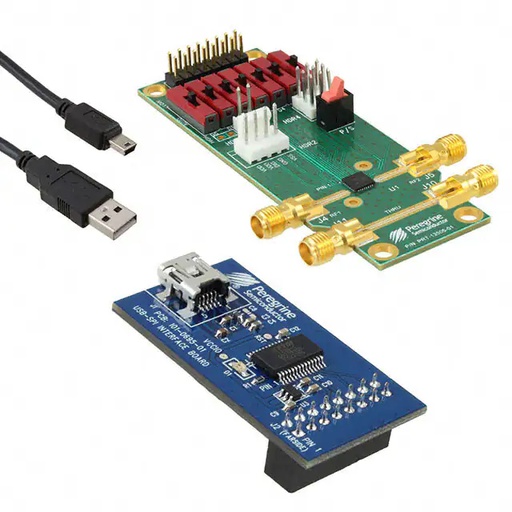

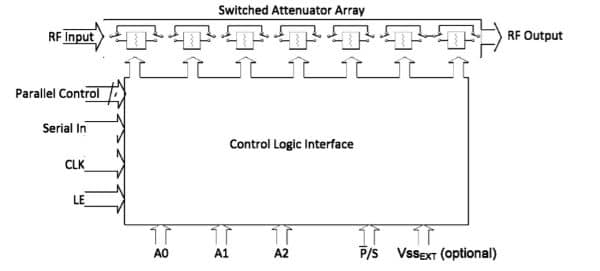

    The PE43704 is a HaRP™ technology-enhanced, high linearity, 7-bit 50Ω RF digital step attenuator (DSA). It offers maximum power handling of 28 dBm up to 8 GHz and covers a 31.75 dB attenuation range in 0.25 dB, 0.5 dB, or 1.0 dB steps. The PE43704 is a pin-compatible version of PE43703. It provides multiple CMOS control interfaces and an optional VssEXT bypass mode to improve spurious performance. It maintains high attenuation accuracy over frequency and temperature and exhibits very low insertion loss and low power consumption. No blocking capacitors are required if DC voltage is not present on the RF ports

    Features

        HaRP™ technology-enhanced
        Safe attenuation state transitions
        Attenuation options: covers a 31.75 dB range in 0.25 dB, 0.5 dB, or 1.0 dB steps
        High power handling @ 8 GHz in 50Ω
        High linearity
        1.8V/3.3V control logic
        Programming modes: Direct parallel, latched parallel, serial and serial addressable
        High-attenuation state @ power-up (PUP)
        ESD performance
    This is a preview of the recently viewed products by the user.
    Once the user has seen at least one product this snippet will be visible.

    Recently viewed Products


    The PE43704 is a HaRP™ technology-enhanced, high linearity, 7-bit 50Ω RF digital step attenuator (DSA). It offers maximum power handling of 28 dBm up to 8 GHz and covers a 31.75 dB attenuation range in 0.25 dB, 0.5 dB, or 1.0 dB steps. The PE43704 is a pin-compatible version of PE43703. It provides multiple CMOS control interfaces and an optional VssEXT bypass mode to improve spurious performance. It maintains high attenuation accuracy over frequency and temperature and exhibits very low insertion loss and low power consumption. No blocking capacitors are required if DC voltage is not present on the RF ports

    Key Features

        HaRP™ technology-enhanced
        Safe attenuation state transitions
        Attenuation options: covers a 31.75 dB range in 0.25 dB, 0.5 dB, or 1.0 dB steps
        High power handling @ 8 GHz in 50Ω
        High linearity
        1.8V/3.3V control logic
        Programming modes: Direct parallel, latched parallel, serial and serial addressable
        High-attenuation state @ power-up (PUP)
        ESD performance

    Specifications

    Description7-bit; 128 states
    Min Freq.9 kHz
    Max Freq.8 GHz
    Max Typ. IL (dB)2.50
    Min Typ. IL (dB)1.30
    IIP3 (dBm)61
    Attn Range (dB)31.75
    Attn Step (dB)0.25/0.5/1.0
    InterfaceParallel (Latched, Direct), Serial Addressable
    Bits7

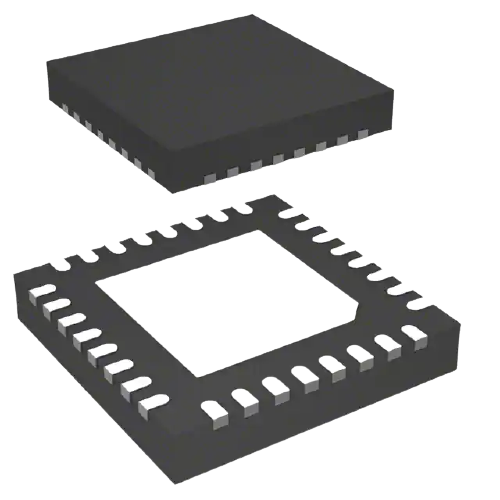

    Package32L QFN
    Package (mm)5x5
