PE44820 RF Digital Phase Shifter 8-bit, 1.7–2.2 GHz

8-bit 1.7-2.2 GHz RF Digital Phase Shifter

    SG$ 14.19

    This combination does not exist.

    Lead Time : 22.0 weeks

    Add to Cart Get Best Price

    8-bit 1.7-2.2 GHz RF Digital Phase Shifter

    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days

    Psemi


    pSemi Corporation is a Murata company driving semiconductor integration. pSemi builds on Peregrine Semiconductor’s 30-year legacy of technology advancements and strong IP portfolio but with a new mission—to enhance Murata’s world-class capabilities with high-performance semiconductors. With a strong foundation in RF integration, pSemi’s product portfolio now spans power management, connected sensors, optical transceivers, antenna tuning and RF frontends. These intelligent and efficient semiconductors enable advanced modules for smartphones, base stations, personal computers, electric vehicles, data centers, IoT devices and healthcare.


    FIND OUT MORE

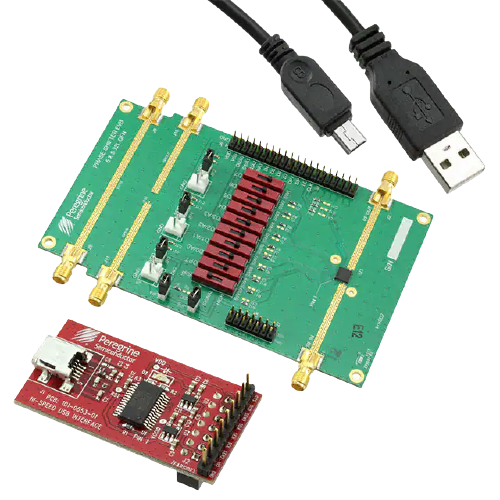

    Overview

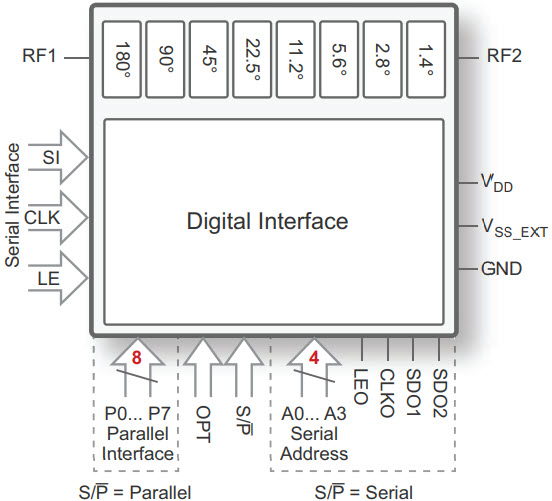

    The PE44820 is a HaRP™ technology-enhanced 8-bit digital phase shifter (DPS) designed for use in a phased array and active antenna applications. This DPS covers a phase range of 358.6° in 1.4° steps, maintaining excellent phase and amplitude accuracy across the nominal frequency band of 1.7–2.2 GHz. The PE44820 is also capable of extended frequency operation from 1.1–3.0 GHz for narrowband applications, as detailed in Application Note 45. An integrated digital control interface supports both serial and parallel programming of the phase setting. The PE44820 also features an external negative supply option for a faster switch frequency and is offered in a 32-lead 5 × 5 × 0.85 mm QFN package. In addition, no external blocking capacitors are required if 0 VDC is present on the RF ports.

    Features

        8-bit full-range phase shifter of 358.6°, 180°, 90°, 45°, 22.5°, 11.2°, 5.6°, 2.8° and 1.4° bits
        Low RMS phase and amplitude error
        High linearity of +60 dBm IIP3
        Extended narrow band frequency operation of 1.1–3.0 GHz
        +105°C operating temperature
        Packaging: 32-lead 5 × 5 × 0.85 mm QFN
    This is a preview of the recently viewed products by the user.
    Once the user has seen at least one product this snippet will be visible.

    Recently viewed Products


    The PE44820 is a HaRP™ technology-enhanced 8-bit digital phase shifter (DPS) designed for use in a phased array and active antenna applications. This DPS covers a phase range of 358.6° in 1.4° steps, maintaining excellent phase and amplitude accuracy across the nominal frequency band of 1.7–2.2 GHz. The PE44820 is also capable of extended frequency operation from 1.1–3.0 GHz for narrowband applications, as detailed in Application Note 45. An integrated digital control interface supports both serial and parallel programming of the phase setting. The PE44820 also features an external negative supply option for a faster switch frequency and is offered in a 32-lead 5 × 5 × 0.85 mm QFN package. In addition, no external blocking capacitors are required if 0 VDC is present on the RF ports.

    Key Features

        8-bit full-range phase shifter of 358.6°, 180°, 90°, 45°, 22.5°, 11.2°, 5.6°, 2.8° and 1.4° bits
        Low RMS phase and amplitude error
        High linearity of +60 dBm IIP3
        Extended narrow band frequency operation of 1.1–3.0 GHz
        +105°C operating temperature
        Packaging: 32-lead 5 × 5 × 0.85 mm QFN

    Specifications

    Description8-bit DPS
    Min Freq.1700 MHz
    Max Freq.2200 MHz
    Typ. IL (dB)6.0
    IIP3 (dBm)60
    DPS Range/Step (deg) / Bits358.6/1.4/8
    RMS Phase Error (deg)1
    RMS Amplitude Error (dB)0.1
    Package32L QFN
    Package (mm)5x5
