  2. PE613050 SP4T Antenna Tuning Control Switch
SGD Pricelist
Manufacturing Company :

PE613050 SP4T Antenna Tuning Control Switch

SP4T, Open Reflective, Tuning Switch

    SG$ 4.37

    This combination does not exist.

    Lead Time : 22.0 weeks

    Add to Cart Get Best Price

    SP4T, Open Reflective, Tuning Switch

    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days

    Psemi


    pSemi Corporation is a Murata company driving semiconductor integration. pSemi builds on Peregrine Semiconductor’s 30-year legacy of technology advancements and strong IP portfolio but with a new mission—to enhance Murata’s world-class capabilities with high-performance semiconductors. With a strong foundation in RF integration, pSemi’s product portfolio now spans power management, connected sensors, optical transceivers, antenna tuning and RF frontends. These intelligent and efficient semiconductors enable advanced modules for smartphones, base stations, personal computers, electric vehicles, data centers, IoT devices and healthcare.


    FIND OUT MORE

    Overview

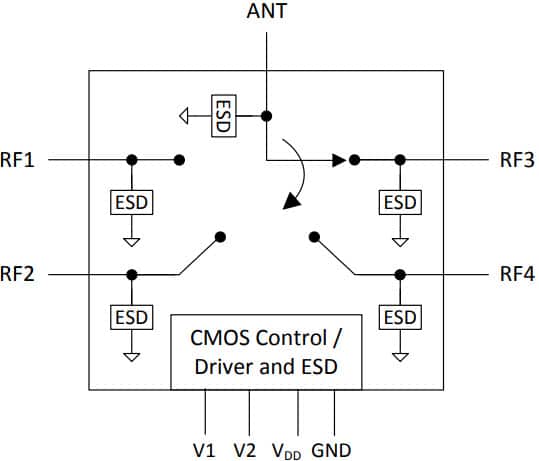

    The PE613050 is an SP4T tuning control switch based on our UltraCMOS® technology. This highly versatile switch supports a wide variety of tuning circuit topologies with an emphasis on impedance matching and aperture tuning applications. PE613050 features low on-resistance and insertion loss from 5 to 3000 MHz. With two-pin low voltage CMOS control, all decoding and biasing are integrated on-chip and no external bypassing or filtering components are required.

    Features

        Open reflective architecture
        Very low on-resistance of 1.6Ω
        Low insertion loss
        High power handling
        Wide power supply range (2.3V to 5.5V)
        High ESD tolerance of 2 kV HBM on all pins
        Packaging: 12-lead 2 × 2 × 0.5 mm QFN
    This is a preview of the recently viewed products by the user.
    Once the user has seen at least one product this snippet will be visible.

    Recently viewed Products


    The PE613050 is an SP4T tuning control switch based on our UltraCMOS® technology. This highly versatile switch supports a wide variety of tuning circuit topologies with an emphasis on impedance matching and aperture tuning applications. PE613050 features low on-resistance and insertion loss from 5 to 3000 MHz. With two-pin low voltage CMOS control, all decoding and biasing are integrated on-chip and no external bypassing or filtering components are required.

    Key Features

        Open reflective architecture
        Very low on-resistance of 1.6Ω
        Low insertion loss
        High power handling
        Wide power supply range (2.3V to 5.5V)
        High ESD tolerance of 2 kV HBM on all pins
        Packaging: 12-lead 2 × 2 × 0.5 mm QFN

    Specifications

    DescriptionSP4T (OR)
    Min Freq.5 MHz
    Max Freq.3000 MHz
    RON (Ω)1.60
    COFF (pF)0.14
    IMD3 (dBm)-120
    Peak RF Voltage (Vpk)18
    Package12L QFN
    Package (mm)2x2
