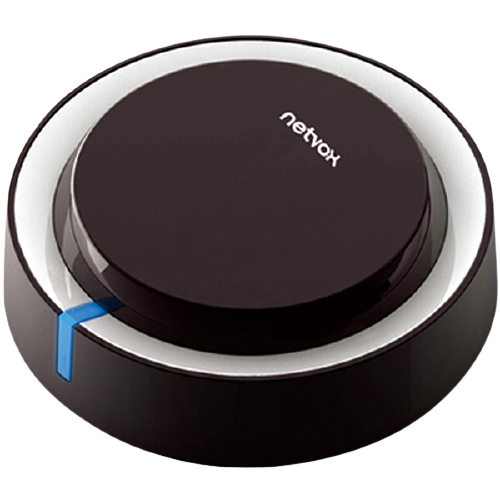

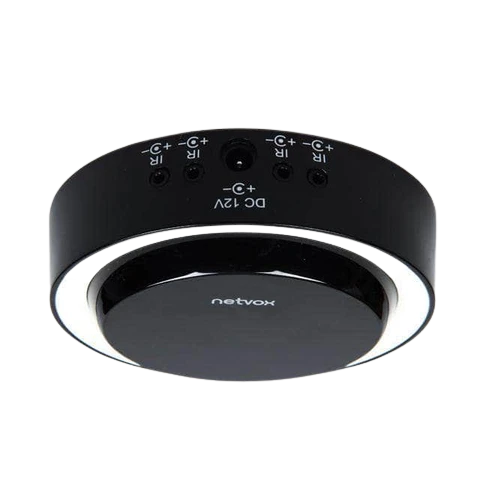

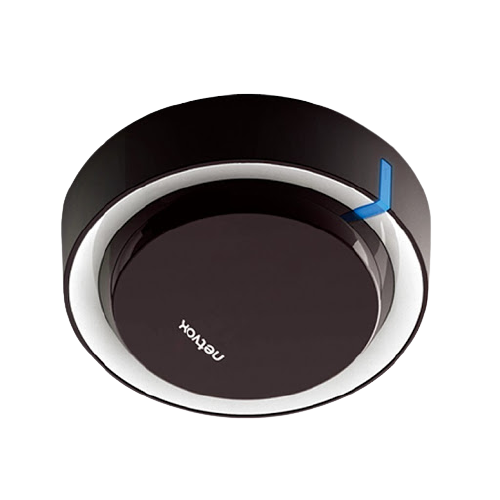

R211 LoRaWAN IR Blaster

Netvox Wireless IR Blaster can be used for IR learning and application. After IR learning, R211 can send the infrared control signal to corresponded electric devices. R211 can receive infrared signal from other infrared device and process predefined action, ex. controlling other LoRa devices.

  • Sensor
  • Waterproof
  • Class
  • Frequency band
  • Power type
  • Sleep Power consumption
  • Rx Sensitivity
  • TX Power
  • Chipset

SG$ 211.55

This combination does not exist.

Lead Time : 6.0 weeks

Add to Cart Get Best Price

Netvox Wireless IR Blaster can be used for IR learning and application. After IR learning, R211 can send the infrared control signal to corresponded electric devices. R211 can receive infrared signal from other infrared device and process predefined action, ex. controlling other LoRa devices.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Netvox

Netvox pioneers in the development and manufacture of Wireless Sensor Network applications based on LoRaWAN and Zigbee Pro Home Automation profile open standard.  Since 2005, we have developed over 200 LoRaWAN devices and 250 Zigbee devices that are based on worldwide standards to work with existing systems.

There are more than 70 items in our LoRaWAN magnetic-mounted R718 series that comes with an IP 65/67 housing, and most of them are battery powered with long battery life.  For example, the battery life of our Temperature and Humidity Sensor for Low Temperature Environment R718A is more than 5 years based on 25℃, 15-minute report interval, 20dBm Tx power and SF=10.


FIND OUT MORE

Overview

Netvox Wireless IR Blaster can be used for IR learning and application. After IR learning, R211 can send the infrared control signal to corresponded electric devices. R211 can receive infrared signal from other infrared device and process predefined action, ex. controlling other LoRa devices.


Features

  • LoRaWAN Class C compatible

  • Frequency Hopping Spread Spectrum (FHSS)

  • Improved interference immunity

  • Encrypt-RF™ Security (Diffie-Hellman Key Exchange + AES-128 CBC for sensor data messages)

  • Built-in 4M serial flash

  • Infrared learning and emission

  • Infrared frequency 38KHz

  • Third-Party online wireless sensor monitoring and notification system to configure sensors, view data and set alerts via SMS text and email (optional)

  • Available third-party platform: Actility/ThingPark, TTN, MyDevices/Cayenne

              Specifications for R211 LoRaWAN IR Blaster

              Frequency band AS923 or AU915 or KR920 or US915
              Sensor IR Blaster
              Waterproof IP30
              Class Class C
              Power type DC12V
              Sleep Power consumption 50mA
              Rx Sensitivity -136dBm
              TX Power 16dBm
              Chipset SX1276
              This is a preview of the recently viewed products by the user.
              Once the user has seen at least one product this snippet will be visible.

              Recently viewed Products


              Netvox Wireless IR Blaster can be used for IR learning and application. After IR learning, R211 can send the infrared control signal to corresponded electric devices. R211 can receive infrared signal from other infrared device and process predefined action, ex. controlling other LoRa devices.
              Features

              1. LoRaWAN Class C compatible
              2.  Frequency Hopping Spread Spectrum (FHSS)
              3.  Improved interference immunity
              4.  Encrypt-RF™ Security (Diffie-Hellman Key Exchange + AES-128 CBC for sensor data messages)
              5.  Built-in 4M serial flash
              6.  Infrared learning and emission
              7.  Infrared frequency 38KHz
              8.  Third-Party online wireless sensor monitoring and notification system to configure sensors, view data and set alerts via SMS text and email (optional)
              9.  Available third-party platform: Actility/ThingPark, TTN, MyDevices/Cayenne

              *1. Actual range may vary depending on environment.
              *2. Battery life is determined by sensor reporting frequency and other variables

              Electric:

              Power Supply

              DC 12V

              Working Current

              50mA / 12V/ 0.6W

              Infrared Frequency

              38 KHz

              Infrared Transmission Range

              32 meters


              Frequency:

              TX Power

              19dBm±1dBm

              Rx Sensitivity

              -136dBm
              (LoRa，Spreading Factor=12，Bit Rate=293bps )
              -121dBm
              (FSK,Frequency deviation=5kHz, Bit Rate=1.2kbps)

              Antenna Type

              Build-in antenna

              Communication Range

              Up 10 km, the actual transmission distance depends on the environment.

              Data Transfer Rate

              0.3kbps～50kbps

              Spread Technique

              LoRa/FSK

              Available Frequency

              EU863-870，US902-928，AU915-928，
              KR920-923，AS923，CN470-510
              Configured before shipment

              Power Supply

              DC 12V

              Working Current

              50mA / 12V/ 0.6W

              Infrared Frequency

              38 KHz

              Infrared Transmission Range

              32 meters


              Physical:

              Dimension

              Diameter-106mm , height-30.5mm

              Weight

              100g

              Operating Temperature

              -20℃ ～ 55℃

              Environment Humidity Range

              5% RH ~ 95% RH  (No condensation)

              Storage Temperature

              -40℃ ～ 85℃
