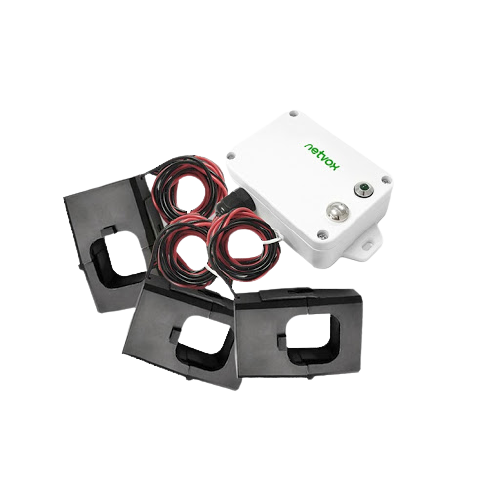

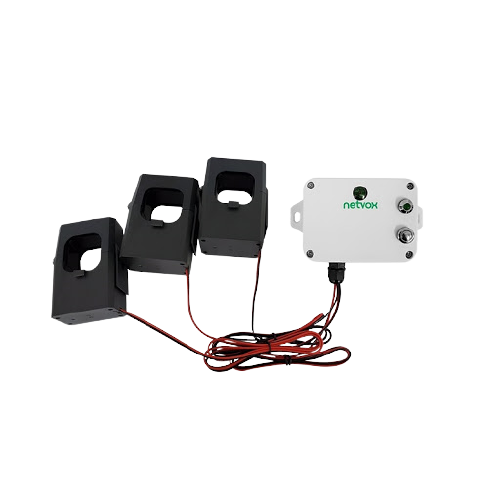

R718N363 Wireless 3-Phase Current Meter with 3 x 630A Clamp-On CT

The R718N363 Netvox wireless three-phase current detector is used to detect three-phase electrical input current.

  • Waterproof
  • Class
  • Frequency band
  • Power type
  • Sleep Power consumption
  • Rx Sensitivity
  • Sensor Measurement Range
  • TX Power
  • Chipset
  • Sensors

SG$ 390.05

This combination does not exist.

Lead Time : 5.0 weeks

Add to Cart Get Best Price

The R718N363 Netvox wireless three-phase current detector is used to detect three-phase electrical input current.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Netvox

Netvox pioneers in the development and manufacture of Wireless Sensor Network applications based on LoRaWAN and Zigbee Pro Home Automation profile open standard.  Since 2005, we have developed over 200 LoRaWAN devices and 250 Zigbee devices that are based on worldwide standards to work with existing systems.

There are more than 70 items in our LoRaWAN magnetic-mounted R718 series that comes with an IP 65/67 housing, and most of them are battery powered with long battery life.  For example, the battery life of our Temperature and Humidity Sensor for Low Temperature Environment R718A is more than 5 years based on 25℃, 15-minute report interval, 20dBm Tx power and SF=10.


FIND OUT MORE

Overview

The R718N363 Netvox wireless three-phase current detector is used to detect three-phase electrical input current. The device is compatible with the LoRaWAN protocol, and integrates a chip module that conforms to the LoRaWAN wireless protocol, and joins the gateway to display the collected data in the gateway. The R718N363 is powered by a battery and receives AC current through a current transformer. The R718N363 adopts open-loop current transformer, which can be easily connected to the device to be tested. The A-phase line, the B phase line and the C phase line of the three-phase electric power are respectively connected to the corresponding current transformers

    Features

    • LoRaWAN™ Class A compatible
    • Frequency Hopping Spread Spectrum (FHSS)
    • Improved Interference Immunity
    • Improved Power Management For Longer Battery Life
    • Encrypt-RF™ Security (Diffie-Hellman Key Exchange + AES-128 CBC For Sensor Data Messages)
    • Battery Life: Please Refer To Web: Http://Www.Netvox.Com.Tw/Electric/Electric_calc.Html
    • Over-The-Air Updates
    • Third-Party Online Wireless Sensor Monitoring And Notification System To Configure Sensors, View Data And Set Alerts Via SMS Text And Email (Optional)
    • Available Third-Party Platform: Actility/ThingPark, TTN, MyDevices/Cayenne
    • R718X Series Carry Magnets Which Can Be Attached To Ferromagnetic Materials And Objects

              Specifications for R718N363 Wireless 3-Phase Current Meter with 3 x 630A Clamp-On CT

              Frequency band AS923 or AU915 or EU868 or US915
              Waterproof IP30
              Class Class A
              Power type 2 X 3.6V ER14505 AA
              Sleep Power consumption 25uA
              Rx Sensitivity -136dBm
              Sensor Measurement Range 1A~630A
              TX Power 16dBm
              Chipset SX1276
              Sensors 3 phase current sensor
              This is a preview of the recently viewed products by the user.
              Once the user has seen at least one product this snippet will be visible.

              Recently viewed Products


              R718N363 NETVOX LORAWAN WIRELESS 3-PHASE CURRENT METER WITH 3 X 630A CLAMP-ON CT

              The R718N363 Netvox wireless three-phase current detector is used to detect three-phase electrical input current. The device is compatible with the LoRaWAN protocol, and integrates a chip module that conforms to the LoRaWAN wireless protocol, and joins the gateway to display the collected data in the gateway. The R718N363 is powered by a battery and receives AC current through a current transformer. The R718N363 adopts open-loop current transformer, which can be easily connected to the device to be tested. The A-phase line, the B phase line and the C phase line of the three-phase electric power are respectively connected to the corresponding current transformers.

              FEATURES:

              • LoRaWAN™ Class A compatible
              • Frequency Hopping Spread Spectrum (FHSS)
              • Improved Interference Immunity
              • Improved Power Management For Longer Battery Life
              • Encrypt-RF™ Security (Diffie-Hellman Key Exchange + AES-128 CBC For Sensor Data Messages)
              • Battery Life: Please Refer To Web: Http://Www.Netvox.Com.Tw/Electric/Electric_calc.Html
              • Over-The-Air Updates
              • Third-Party Online Wireless Sensor Monitoring And Notification System To Configure Sensors, View Data And Set Alerts Via SMS Text And Email (Optional)
              • Available Third-Party Platform: Actility/ThingPark, TTN, MyDevices/Cayenne
              • R718X Series Carry Magnets Which Can Be Attached To Ferromagnetic Materials And Objects

                  Battery: https://www.iot-store.com.au/products/er14505-2400mah-3-6v-lithium-battery-aa-cell

                  Electric

                  Input Power

                  2 X 3.6V ER14505 AA Lithium Batteries
                  (3.6V, 2400mah/Section）

                  Sleeping Current

                  25uA

                  Wake Up Current

                  7mA

                  Receiving Current (Max)

                  11mA @3.3V

                  Transmitting Current (Max)

                  127mA @3.3V

                  Battery Voltage Measurement
                  Accuracy

                  ±0.1V

                  Current Measurement Accuracy

                  <+-1%

                  Current Measurement Accuracy Range

                  10A To 630A
                  (Depending On The Current Transformer Configuration)


                  Frequency

                  TX Power

                  19dBm±1dBm

                  Rx Sensitivity

                  -136dBm (LoRa，Spreading Factor=12, Bit Rate=293bps )
                  -121dBm (FSK,Frequency Deviation=5kHz, Bit Rate=1.2kbps)

                  Antenna Type

                  Build-In Antenna

                  Communication Range

                  Up To10 Km, The Actual Transmission Distance Depends On The Environment.

                  Data Transfer Rate

                  0.3kbps～50kbps

                  Spread Technique

                  LoRa/FSK

                  Available Frequency

                  AU915-928，AS923


                  Physical

                  Dimension

                  Main Part: L: 112mm*W: 65mm*H: 32mm

                  Weight

                  141g

                  Environment Temperature Range

                  -20℃ ～ 55℃

                  Environment Humidity Range

                  <90% RH  (No Condensation)

                  Storage Temperature

                  -40°C~+85°C
