R718PB14 Wireless Soil Moisture/Temperature/Electrica/Conductivity sensor

The device is a wireless communication device that detects soil temperature and moisture content and soil conductivity, and transmits the detected data to other devices through LoRa network. The SX1276 wireless communication method is adopted.

  • Waterproof
  • Class
  • Frequency band
  • Power type
  • Sleep Power consumption
  • Rx Sensitivity
  • Sensor Measurement Range
  • TX Power
  • Chipset
  • Sensors

SG$ 1,582.70

This combination does not exist.

Lead Time : 5.0 weeks

Add to Cart Get Best Price

The device is a wireless communication device that detects soil temperature and moisture content and soil conductivity, and transmits the detected data to other devices through LoRa network. The SX1276 wireless communication method is adopted.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Netvox

Netvox pioneers in the development and manufacture of Wireless Sensor Network applications based on LoRaWAN and Zigbee Pro Home Automation profile open standard.  Since 2005, we have developed over 200 LoRaWAN devices and 250 Zigbee devices that are based on worldwide standards to work with existing systems.

There are more than 70 items in our LoRaWAN magnetic-mounted R718 series that comes with an IP 65/67 housing, and most of them are battery powered with long battery life.  For example, the battery life of our Temperature and Humidity Sensor for Low Temperature Environment R718A is more than 5 years based on 25℃, 15-minute report interval, 20dBm Tx power and SF=10.


FIND OUT MORE

Overview

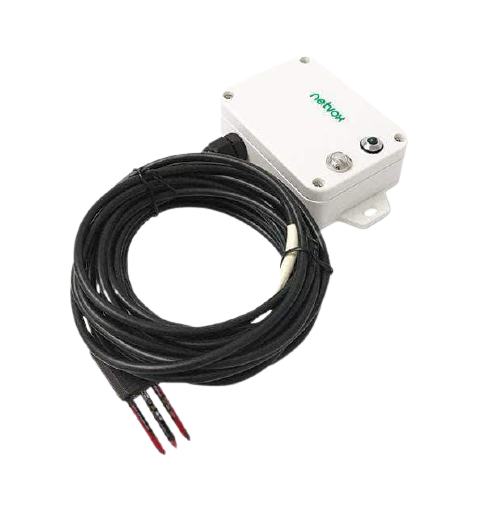

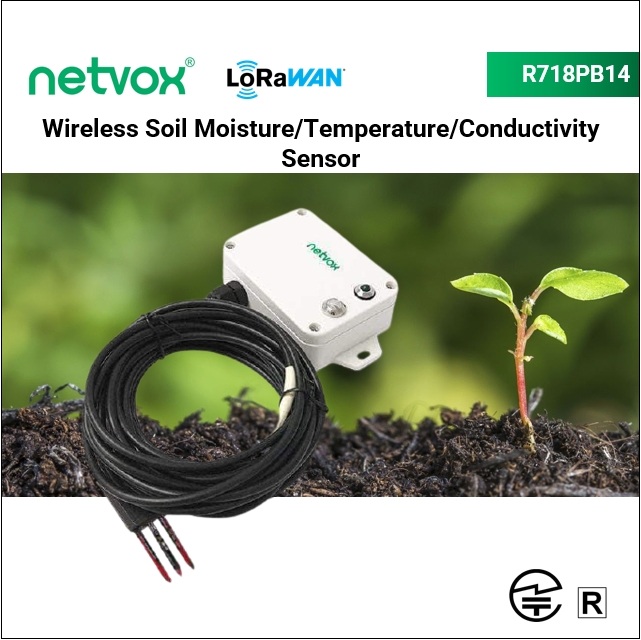

The Netvox R718PB14 device is a wireless communication device that detects soil temperature and moisture content and soil conductivity and transmits the detected data to other devices through LoRaWAN network. The R718PB14 uses SX1276 wireless communication module. The device is compatible with the LoRaWAN protocol (Class A).



    Features

    • LoRaWAN™ Class A compatible
    • Frequency Hopping Spread Spectrum (FHSS)
    • Improved Interference Immunity
    • Improved Power Management For Longer Battery Life
    • Encrypt-RF™ Security (Diffie-Hellman Key Exchange + AES-128 CBC For Sensor Data Messages)
    • Battery Life: Please Refer To Web: Http://Www.Netvox.Com.Tw/Electric/Electric_calc.Html
    • Over-The-Air Updates
    • Third-Party Online Wireless Sensor Monitoring And Notification System To Configure Sensors, View Data And Set Alerts Via SMS Text And Email (Optional)
    • Available Third-Party Platform: Actility/ThingPark, TTN, MyDevices/Cayenne
    • R718X Series Carry Magnets Which Can Be Attached To Ferromagnetic Materials And Objects

              Specifications for R718PB14 Wireless Soil Moisture/Temperature/Electrica/Conductivity sensor

              Frequency band AS923 or AU915 or EU868 or US915
              Waterproof IP30
              Class Class A
              Power type 2pcs Of 3.6V ER14505 AA
              Sleep Power consumption 36uA
              Rx Sensitivity -136dBm
              Sensor Measurement Range 0.0008 m3 /m3 from 0%–50% VWC
              TX Power 16dBm
              Chipset SX1276
              Sensors Soil Moisture/Temperature/Electrica/Conductivity sensor
              This is a preview of the recently viewed products by the user.
              Once the user has seen at least one product this snippet will be visible.

              Recently viewed Products


              R718PB14 NETVOX LORAWAN WIRELESS SOIL MOISTURE, TEMPERATURE AND ELECTRICAL CONDUCTIVITY SENSOR

              The Netvox R718PB14 device is a wireless communication device that detects soil temperature and moisture content and soil conductivity and transmits the detected data to other devices through LoRaWAN network. The R718PB14 uses SX1276 wireless communication module. The device is compatible with the LoRaWAN protocol (Class A).

              FEATURES:

              • LoRaWAN™ Class A compatible
              • Frequency Hopping Spread Spectrum (FHSS)
              • Improved Interference Immunity
              • Improved Power Management For Longer Battery Life
              • Encrypt-RF™ Security (Diffie-Hellman Key Exchange + AES-128 CBC For Sensor Data Messages)
              • Battery Life: Please Refer To Web: Http://Www.Netvox.Com.Tw/Electric/Electric_calc.Html
              • Over-The-Air Updates
              • Third-Party Online Wireless Sensor Monitoring And Notification System To Configure Sensors, View Data And Set Alerts Via SMS Text And Email (Optional)
              • Available Third-Party Platform: Actility/ThingPark, TTN, MyDevices/Cayenne
              • R718X Series Carry Magnets Which Can Be Attached To Ferromagnetic Materials And Objects

                  Battery: https://www.iot-store.com.au/products/er14505-2400mah-3-6v-lithium-battery-aa-cell

                  Electric

                  Power Supply

                  2 ER14505 Batteries AA SIZE (3.6V / Section) Parallel Power Supply

                  Battery Life Time

                  Battery Life Is About 3.4 Years (Condition: Ambient Temperature 25 ° C. Report Once Every 15 Minutes. Txpower = 20 DBm. LoRa Spread Factor SF = 10)

                  Sleeping Mode

                  36uA

                  Wake Up Mode

                  6.3mA@3.3V

                  Receiving Current (RX)

                  11mA @3.3V

                  Transmitting Current (TX)

                  120mA/3.3V

                  Battery Voltage Measurement
                  Accuracy

                  ±0.1V


                  Frequency

                  TX Power

                  19dBm±1dBm

                  Rx Sensitivity

                  -136dBm
                  (LoRa，Spreading Factor=12，Bit Rate=293bps )
                  -121dBm
                  (FSK,Frequency Deviation=5kHz, Bit Rate=1.2kbps)

                  Antenna Type

                  Build-In Antenna

                  Communication Range

                  Up To 10 Km, The Actual Transmission Distance Depends On The Environment.

                  Data Transfer Rate

                  0.3kbps～50kbps

                  Spread Technique

                  LoRa/FSK

                  Available Frequency

                  AU915-928, AS923


                  Physical

                  Dimension

                  L:112mm*W:88.19mm*H:32mm

                  Weight

                  160g

                  Working Temp

                  -20°C ～ +55°C

                  Storage Temp

                  -40°C ～ +85°C

                  Humidity Detecting Range

                  ＜90%RH
