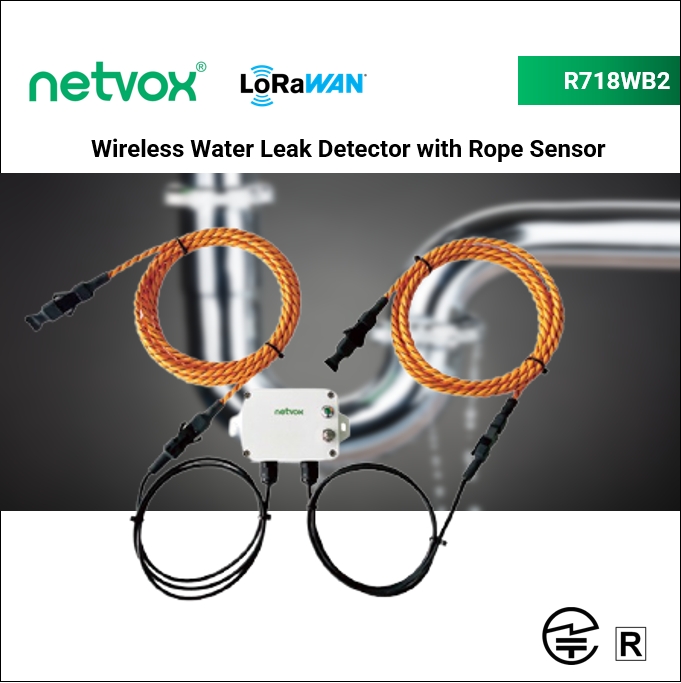

R718WB2 Wireless Water Leak Detector with Rope Sensor

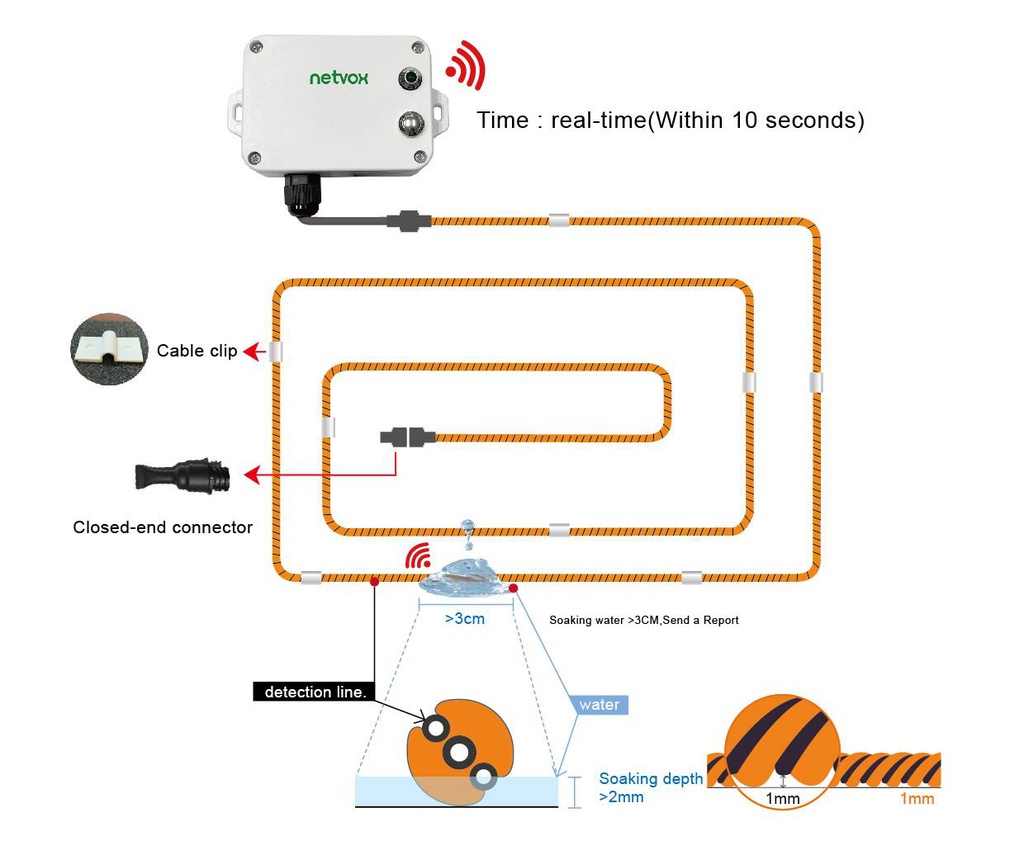

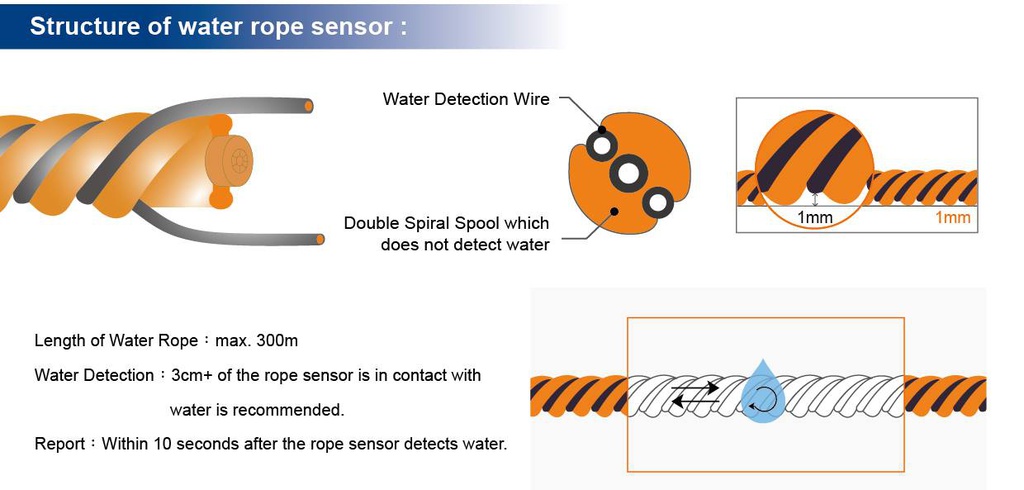

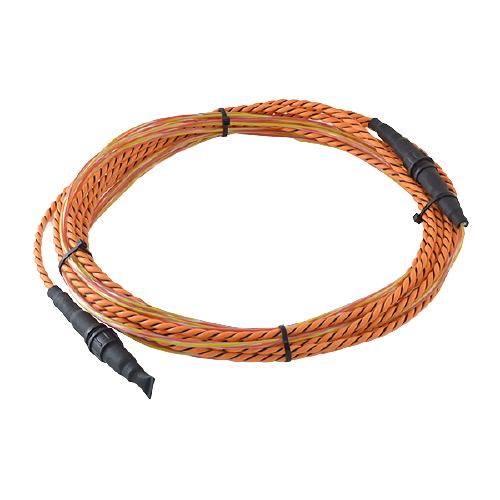

Netvox R718WB is a LoRaWAN™ device compatible with LoRaWAN™ protocol (class A). When the R718WB sensor detects the leak, it will send an alarm message to the gateway. R718WB carries 1-gang water rope sensor. It uses SX1276 LoRaWAN™ wireless communication module.

  • Waterproof
  • Class
  • Frequency band
  • Power type
  • Sleep Power consumption
  • Rx Sensitivity
  • Sensor Measurement Range
  • TX Power
  • Chipset
  • Cable length
  • Sensors

SG$ 489.21 SG$ 489.21 489.209 SGD

US$ 370.00

This combination does not exist.

Lead Time : 5.0 weeks

Add to Cart Get Best Price

Netvox R718WB is a LoRaWAN™ device compatible with LoRaWAN™ protocol (class A). When the R718WB sensor detects the leak, it will send an alarm message to the gateway. R718WB carries 1-gang water rope sensor. It uses SX1276 LoRaWAN™ wireless communication module.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Netvox

Netvox pioneers in the development and manufacture of Wireless Sensor Network applications based on LoRaWAN and Zigbee Pro Home Automation profile open standard.  Since 2005, we have developed over 200 LoRaWAN devices and 250 Zigbee devices that are based on worldwide standards to work with existing systems.

There are more than 70 items in our LoRaWAN magnetic-mounted R718 series that comes with an IP 65/67 housing, and most of them are battery powered with long battery life.  For example, the battery life of our Temperature and Humidity Sensor for Low Temperature Environment R718A is more than 5 years based on 25℃, 15-minute report interval, 20dBm Tx power and SF=10.


FIND OUT MORE

Overview

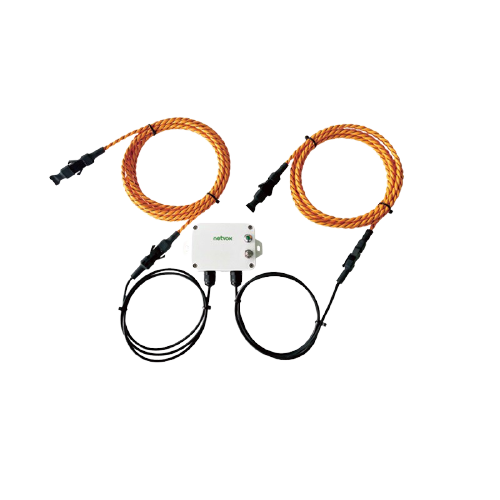

Netvox R718WB2 is a LoRaWAN™ device compatible with LoRaWAN™ protocol (class A). When the R718WB2 sensor detects the leak, it will send an alarm message to the gateway. R718WB2 carries a 2-gang water rope sensor. It uses SX1276 LoRaWAN™ wireless communication module.

Frequency Range: AU915-928，AS923



    Features

    • Wireless Range of 10km
    • LoRaWAN™ Class A Compatible
    • Frequency Hopping Spread Spectrum (FHSS)
    • Improved Interference Immunity
    • Improved Power Management For Longer Battery Life
    • Encrypt-RF™ Security (Diffie-Hellman Key Exchange + AES-128 CBC For Sensor Data Messages)
    • Battery Life:
    ⁻Please Refer To Web: Http://Www.Netvox.Com.Tw/Electric/Electric_calc.Html
    ⁻At This Website, Users Can Find Battery Life Time For Varier Models At Different Configurations.
    • Over-The-Air Updates (Future)
    • Third-Party Online Wireless Sensor Monitoring And Notification System To Configure Sensors, View Data

       And Set Alerts Via SMS Text And Email (Optional)

    • Available Third-Party Platform: Actility/ThingPark, TTN, MyDevices/Cayenne
    • R718X  Series Carry Magnets Which Can Be Attached To Ferromagnetic Materials And Objects
    • IP Rating Level: IP67

              Specifications for R718WB2 Wireless Water Leak Detector with Rope Sensor

              Frequency band AS923 or AU915 or EU868 or US915
              Waterproof IP67
              Class Class A
              Power type 2 X 3.6V ER14505 AA
              Sleep Power consumption 20uA
              Rx Sensitivity -136dBm
              Sensor Measurement Range VW-1
              TX Power 16dBm
              Chipset SX1276
              Cable length 3~300m
              Sensors 2 x Water leak Detector with Rope sensor
              This is a preview of the recently viewed products by the user.
              Once the user has seen at least one product this snippet will be visible.

              Recently viewed Products


              R718WB2 NETVOX LORAWAN WIRELESS TWO GANG WATER LEAK DETECTOR WITH ROPE SENSOR

              Netvox R718WB2 is a LoRaWAN™ device compatible with LoRaWAN™ protocol (class A). When the R718WB2 sensor detects the leak, it will send an alarm message to the gateway. R718WB2 carries a 2-gang water rope sensor. It uses SX1276 LoRaWAN™ wireless communication module.

              Frequency Range: AU915-928，AS923

              FEATURES:

              • Wireless Range of 10km
              • LoRaWAN™ Class A Compatible
              • Frequency Hopping Spread Spectrum (FHSS)
              • Improved Interference Immunity
              • Improved Power Management For Longer Battery Life
              • Encrypt-RF™ Security (Diffie-Hellman Key Exchange + AES-128 CBC For Sensor Data Messages)
              • Battery Life:
              ⁻Please Refer To Web: Http://Www.Netvox.Com.Tw/Electric/Electric_calc.Html
              ⁻At This Website, Users Can Find Battery Life Time For Varier Models At Different Configurations.
              • Over-The-Air Updates (Future)
              • Third-Party Online Wireless Sensor Monitoring And Notification System To Configure Sensors, View Data

                 And Set Alerts Via SMS Text And Email (Optional)

              • Available Third-Party Platform: Actility/ThingPark, TTN, MyDevices/Cayenne
              • R718X  Series Carry Magnets Which Can Be Attached To Ferromagnetic Materials And Objects
              • IP Rating Level: IP67

                    Battery: https://www.iot-store.com.au/products/er14505-2400mah-3-6v-lithium-battery-aa-cell

                    Electric

                    Input Power

                    2 X 3.6V ER14505 AA Lithium Batteries
                    (3.6V2400mah/Section）

                    Battery Life

                    5 Years (Conditions: Ambient Temperature 25 °C, 15 Min Heartbeats, Txpower = 20dBm, LoRa Spreading Factor SF = 10)

                    Sleeping Mode

                    20uA

                    Wake Up Mode

                    6.3mA@3.3V

                    Low Voltage Threshold

                    3.2V

                    Receiving Current (Max)

                    11mA @3.3V

                    Transmitting Current (Max)

                    120mA/3.3V

                    Battery Voltage Measurement
                    Accuracy

                    ±0.1V



                    Frequency

                    TX Power

                    19dBm±1dBm

                    Rx Sensitivity

                    -136dBm (LoRa，Spreading Factor=12, Bit Rate=293bps )
                    -121dBm (FSK,Frequency Deviation=5kHz, Bit Rate=1.2kbps)

                    Antenna Type

                    Build-In Antenna

                    Communication Range

                    10 Km (Line-Of-Sight, The Actual Transmission Distance Depends On The Environment)

                    Data Transfer Rate

                    0.3kbps～50kbps

                    Spread Technique

                    LoRa/FSK

                    Available Frequency

                    AU915, AS923



                    Physical

                    Dimension

                    Main Part: L: 112mm*W: 65mm*H: 32mm

                    Weight

                    141g

                    Environment Temperature Range

                    -20℃ ～ 55℃

                    Environment Humidity Range

                    <90% RH  (No Condensation)

                    Storage Temperature

                    -40℃ ～ 85℃

                    IP Rating

                    IP67
