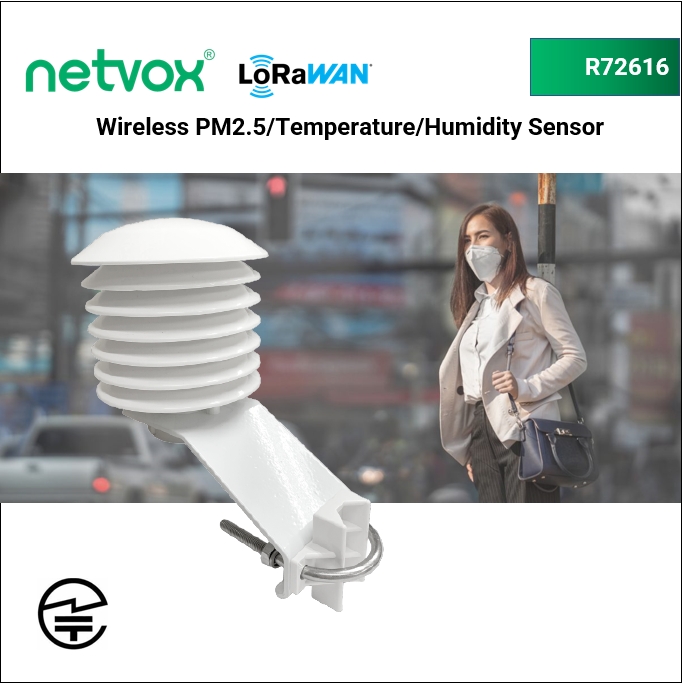

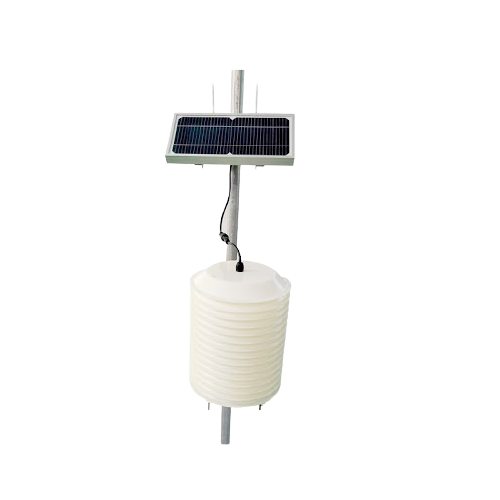

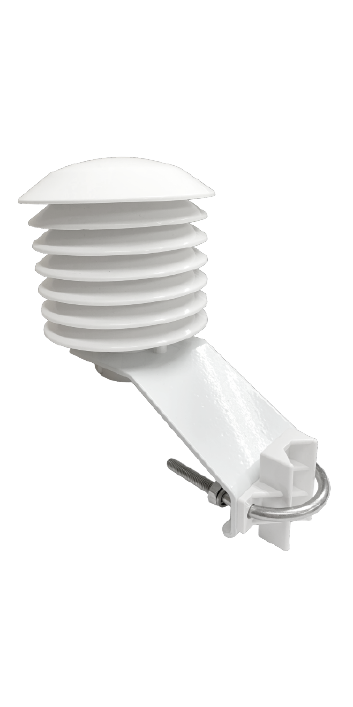

R72616 Wireless Outdoor PM2.5/Temperature/Humidity Sensor with a Solar Panel

The R72616 is equipped with a temperature and humidity sensor that detects and transmits ambient temperature and humidity data. It is a wireless communication method that uses the SX1276 wireless communication module. The R72616 has a PM2.5 sensor that detects the concentration of PM2.5 in the air.

  • Waterproof
  • Class
  • Frequency band
  • Power type
  • Sleep Power consumption
  • Rx Sensitivity
  • Sensor Measurement Range
  • TX Power
  • Chipset
  • Certification
  • Sensors

SG$ 749.37

This combination does not exist.

Lead Time : 5.0 weeks

Add to Cart Get Best Price

The R72616 is equipped with a temperature and humidity sensor that detects and transmits ambient temperature and humidity data. It is a wireless communication method that uses the SX1276 wireless communication module. The R72616 has a PM2.5 sensor that detects the concentration of PM2.5 in the air.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Netvox

Netvox pioneers in the development and manufacture of Wireless Sensor Network applications based on LoRaWAN and Zigbee Pro Home Automation profile open standard.  Since 2005, we have developed over 200 LoRaWAN devices and 250 Zigbee devices that are based on worldwide standards to work with existing systems.

There are more than 70 items in our LoRaWAN magnetic-mounted R718 series that comes with an IP 65/67 housing, and most of them are battery powered with long battery life.  For example, the battery life of our Temperature and Humidity Sensor for Low Temperature Environment R718A is more than 5 years based on 25℃, 15-minute report interval, 20dBm Tx power and SF=10.


FIND OUT MORE

Overview

The R72616 is equipped with a temperature and humidity sensor that detects and transmits ambient temperature and humidity data. It is a wireless communication method that uses the SX1276 wireless communication module. The R72616 has a PM2.5 sensor that detects the concentration of PM2.5 in the air.


                  Features


                  Temperature and humidity detection

                  Air particle concentration detection (PM2.5)

                  Adopt SX1276 wireless communication module

                  Solar panel charging function

                  Built-in lithium battery pack power supply

                  • LoRaWAN compatible

                  • Frequency Hopping Spread Spectrum (FHSS)

                  • Improved interference immunity

                  • Third-party online wireless sensor monitoring and notification system to configure sensors, view data and set alerts via SMS text and email (optional)

                  • Available third-party platform: Actility/ThingPark, TTN, MyDevices/Cayenne

                  • Uses SX1276 wireless communication module



                            Specifications for R72616 Wireless Outdoor PM2.5/Temperature/Humidity Sensor with a Solar Panel

                            Frequency band AS923 or AU915 or EU868 or US915
                            Waterproof IP67
                            Class Class A
                            Power type Battery + Solar panel
                            Sleep Power consumption 25mA
                            Rx Sensitivity -136dBm
                            Sensor Measurement Range 0~500 μg/m3
                            TX Power 16dBm
                            Chipset SX1276
                            Certification TELEC
                            Sensors PM2.5/Temperature/Humidity
                            This is a preview of the recently viewed products by the user.
                            Once the user has seen at least one product this snippet will be visible.

                            Recently viewed Products


                            The R72616 is equipped with a temperature and humidity sensor that detects and transmits ambient temperature and humidity data. It is a wireless communication method that uses the SX1276 wireless communication module. The R72616 has a PM2.5 sensor that detects the concentration of PM2.5 in the air.


                            Features



                            • Temperature and humidity detection
                            •  Air particle concentration detection (PM2.5)
                            •  Adopt SX1276 wireless communication module
                            •  With solar panel charging function
                            •  Built-in lithium battery pack power supply
                            • LoRaWAN  compatible
                            •  Frequency Hopping Spread Spectrum (FHSS)
                            •  Improved interference immunity
                            • Third-party online wireless sensor monitoring and notification system to configure sensors, view data and set alerts via SMS text and email (optional)
                            •  Available third-party platform: Actility/ThingPark, TTN, MyDevices/Cayenne
                            •  Uses SX1276 wireless communication module

                            Example Applications

                            • Smart Home
                            • Outdoor Air Detection
                            • Smart Farm
                            • Others


                            Electric:

                            Power Supply

                            Lithium Battery Pack

                            Operating Voltage Range

                            9.8VDC ~ 12.6VDC

                            Operating Current 1

                            25mA (Standby mode)

                            Operating Current 2

                            40mA (When the sensor is working.)


                            Frequency:

                            TX Power

                            19dBm±1dBm

                            Rx Sensitivity

                            -136dBm (LoRa，Spreading Factor=12, Bit Rate=293bps )
                            -121dBm (FSK,Frequency deviation=5kHz, Bit Rate=1.2kbps)

                            Antenna Type

                            Built-in antenna

                            Communication Range

                            10 km (line-of-sight, the actual transmission distance depends on the environment)

                            Data Transfer Rate

                            0.3kbps～50kbps

                            Spread Technique

                            LoRa/FSK

                            Available Frequency

                            EU863-870，US902-928，AU915-928，KR920-923，AS923，CN470-510    Configured before shipment


                            Physical:

                            Dimension

                            Mask part: D220mm*H340mm,
                            Solar panel size: 290mm*150mm*25mm

                            Operating Temperature Range

                            -20℃ ～ 55℃

                            Operating Humidity Range

                            < 90%RH (no condensation)

                            Storage Temperature range

                            -40℃ ～ 85℃
