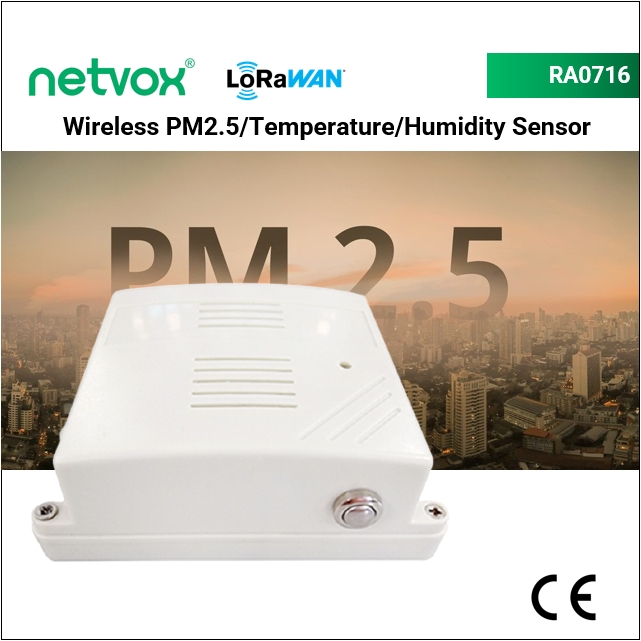

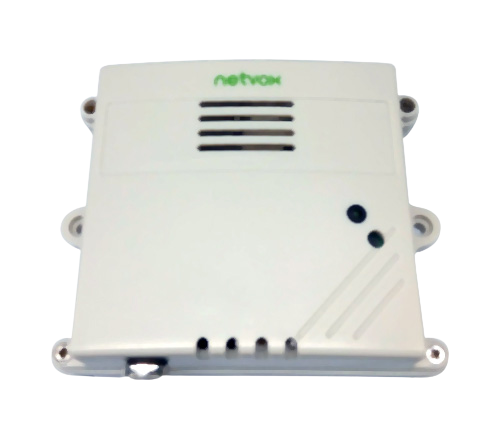

RA0716 Wireless PM2.5/Temperature/Humidity Sensor

Netvox RA0716 is mainly used to measure PM2.5, ambient temperature and humidity in an indoor environment, communicating over the LoRaWAN™ Protocol (Class A). RA0716 carries a PM2.5 sensor that can be used to obtain the concentration of suspended particles per unit volume in the air. RA0716 is LoRaWAN™ Certified.

  • Class
  • Frequency band
  • Power type
  • Sleep Power consumption
  • Rx Sensitivity
  • Sensor Measurement Range
  • TX Power
  • Chipset
  • Sensors

SG$ 354.35

This combination does not exist.

Lead Time : 5.0 weeks

Add to Cart Get Best Price

Netvox RA0716 is mainly used to measure PM2.5, ambient temperature and humidity in an indoor environment, communicating over the LoRaWAN™ Protocol (Class A). RA0716 carries a PM2.5 sensor that can be used to obtain the concentration of suspended particles per unit volume in the air. RA0716 is LoRaWAN™ Certified.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Netvox

Netvox pioneers in the development and manufacture of Wireless Sensor Network applications based on LoRaWAN and Zigbee Pro Home Automation profile open standard.  Since 2005, we have developed over 200 LoRaWAN devices and 250 Zigbee devices that are based on worldwide standards to work with existing systems.

There are more than 70 items in our LoRaWAN magnetic-mounted R718 series that comes with an IP 65/67 housing, and most of them are battery powered with long battery life.  For example, the battery life of our Temperature and Humidity Sensor for Low Temperature Environment R718A is more than 5 years based on 25℃, 15-minute report interval, 20dBm Tx power and SF=10.


FIND OUT MORE

Overview

Netvox RA0716 is mainly used to measure PM2.5, ambient temperature and humidity in an indoor environment, communicating over the LoRaWAN™ Protocol (Class A). RA0716 carries a PM2.5 sensor that can be used to obtain the concentration of suspended particles per unit volume in the air. RA0716 is LoRaWAN™ Certified.


    Features

    • Wireless Range of 10km

    • LoRaWAN Class A compatible

    • Frequency Hopping Spread Spectrum (FHSS)

    • Improved Interference Immunity

    • Improved Power Management for Longer Battery Life

    • Encrypt-RF™ Security (Diffie-Hellman Key Exchange + AES-128 CBC for Sensor Data Messages)

    • Battery Life: Please Refer To Web: http://Www.Netvox.Com.Tw/Electric/Electric_calc.Html

    • Over-The-Air Updates (Future)

    • Third-Party Online Wireless Sensor Monitoring And Notification System To Configure Sensors, View Data

    • And Set Alerts Via SMS Text And Email (Optional)

    • Available Third-Party Platform: Actility/ThingPark, TTN, MyDevices/Cayenne

    • Uses SX1276 Wireless Communication Module

              Specifications for RA0716 Wireless PM2.5/Temperature/Humidity Sensor

              Frequency band AS923 or AU915 or EU868 or US915
              Class Class A
              Power type DC12V/1A
              Sleep Power consumption 40mA
              Rx Sensitivity -121dBm
              Sensor Measurement Range 0~500 μg/m3
              TX Power 16dBm
              Chipset SX1276
              Sensors PM2.5/Temperature/Humidity
              This is a preview of the recently viewed products by the user.
              Once the user has seen at least one product this snippet will be visible.

              Recently viewed Products


              RA0716 NETVOX LORAWAN WIRELESS PM2.5 TEMPERATURE HUMIDITY SENSOR

              Netvox RA0716 is mainly used to measure PM2.5, ambient temperature and humidity in an indoor environment, communicating over the LoRaWAN™ Protocol (Class A). RA0716 carries a PM2.5 sensor that can be used to obtain the concentration of suspended particles per unit volume in the air. RA0716 is LoRaWAN™ Certified.

              Features:

              • Wireless Range of 10km
              • LoRaWAN Class A compatible
              • Frequency Hopping Spread Spectrum (FHSS)
              • Improved Interference Immunity
              • Improved Power Management for Longer Battery Life
              • Encrypt-RF™ Security (Diffie-Hellman Key Exchange + AES-128 CBC for Sensor Data Messages)
              • Battery Life: Please Refer To Web: http://Www.Netvox.Com.Tw/Electric/Electric_calc.Html
              • Over-The-Air Updates (Future)
              • Third-Party Online Wireless Sensor Monitoring And Notification System To Configure Sensors, View Data
              • And Set Alerts Via SMS Text And Email (Optional)
              • Available Third-Party Platform: Actility/ThingPark, TTN, MyDevices/Cayenne
              • Uses SX1276 Wireless Communication Module

              Electric

              Input Power

              12VDC/1A

              Operating Current 1

              40mA (Not Transmitting RF Signals)

              Operating Current 2

              80mA (Transmitting RF Signals)

              Particle Measurement Range

              0.3~1.0；1.0~2.5（Um）

              Particle Counting Efficiency

              50%@0.3um，98%@≥0.5um


              Frequency

              Frequency Range

              AU915-928, AS923

              TX Power

              19dBm ± 1dBm

              Rx Sensitivity

              -121dBm
              (Frequency Deviation=5kHz,Bit Rate=1.2kb/S)

              Antenna Type

              Built-In Antenna

              Communication Range

              4km (Line Of Sight)

              Data Transfer Rate

              0.3kbps～50kbps

              Spread Technique

              LoRa/FSK/OOK

              LoRaWAN™ Band Supported



              US915       AU915       AS923
              EU868       KR920       CN470


              Physical

              Dimension

              111mm*86mm*41mm

              Operating Humidity

              ＜90%RH

              Operating Temperature

              -20°C  － 55°C

              Storage Temperature

              -40°C － 85°C
