RAK2245 Stamp Edition LoRa Concentrator

5.5V module Radial lead plastic case 2.5F

  • Frequency band

SG$ 138.83

This combination does not exist.

Lead Time : 2.0 weeks

Add to Cart Get Best Price

5.5V module Radial lead plastic case 2.5F

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Sell Online. Easily.

This is a simple hero unit, a simple jumbotron-style component for calling extra attention to featured content or information.


FIND OUT MORE

Overview


RAK2245 Stamp Edition is the smallest of the RAK2245 Family. It has the lowest price, however, it retains its high-quality build and RF performance. This makes it suitable for rapid prototyping and size constraint applications.


As with the other modules in the RAK2245 line, it is based on the Semtech® 1301 and dual SX1257/58 front-end chips. It is a full-fledged 8 channel LoRa® concentrator with a number of improvements over the last generation of this product line (RAK831).



Features

  • SX1301 + 2x SX1257/58 provide 8 uplink and 1 downlink LoRa® demodulation paths

  • Max Tx Power of 27dBm

  • RX sensitivity of -139dBm

  • Improved noise resistance due to improved RF chain filtering (Additional SAW)

  • Full LoRaWAN® 1.0.2 stack support

  • Supported bands: (EU433, CN470, IN865, EU868, AU915, US915, KR920, AS920 and AS923)

  • Integrated Ublox MAX-7Q GPs Module

  • 40 pin header hole mount (2mm pitch, compatible with 96Boards)

  • One of the smallest LPWAN concentrator modules in the market - 60mm(L) x 30mm(W) x 14.9mm(H)

  • Redesigned heat sink for better thermal dissipation and reduced thermal noise

Specifications for RAK2245 Stamp Edition LoRa Concentrator

Frequency band AS923 or CN470 or EU433 or EU868 or IN865 or KR920 or US915
This is a preview of the recently viewed products by the user.
Once the user has seen at least one product this snippet will be visible.

Recently viewed Products


Product Description

RAK2245 Stamp Edition is the smallest of the RAK2245 Family. It has the lowest price, however, it retains its high-quality build and RF performance. This makes it suitable for rapid prototyping and size constraint applications.

As with the other modules in the RAK2245 line, it is based on the Semtech® 1301 and dual SX1257/58 front-end chips. It is a full-fledged 8 channel LoRa® concentrator with a number of improvements over the last generation of this product line (RAK831).

Complete documentation of this product can be found on our website documentation page.

Key Features

  • SX1301 + 2x SX1257/58 provide 8 uplink and 1 downlink LoRa® demodulation paths
  • Max Tx Power of 27dBm
  • RX sensitivity of -139dBm
  • Improved noise resistance due to improved RF chain filtering (Additional SAW)
  • Full LoRaWAN® 1.0.2 stack support
  • Supported bands: (EU433, CN470, IN865, EU868, AU915, US915, KR920, AS920 and AS923)
  • Integrated Ublox MAX-7Q GPs Module
  • 40 pin header hole mount (2mm pitch, compatible with 96Boards)
  • One of the smallest LPWAN concentrator modules in the market - 60mm(L) x 30mm(W) x 14.9mm(H)
  • Redesigned heat sink for better thermal dissipation and reduced thermal noise

Packaging

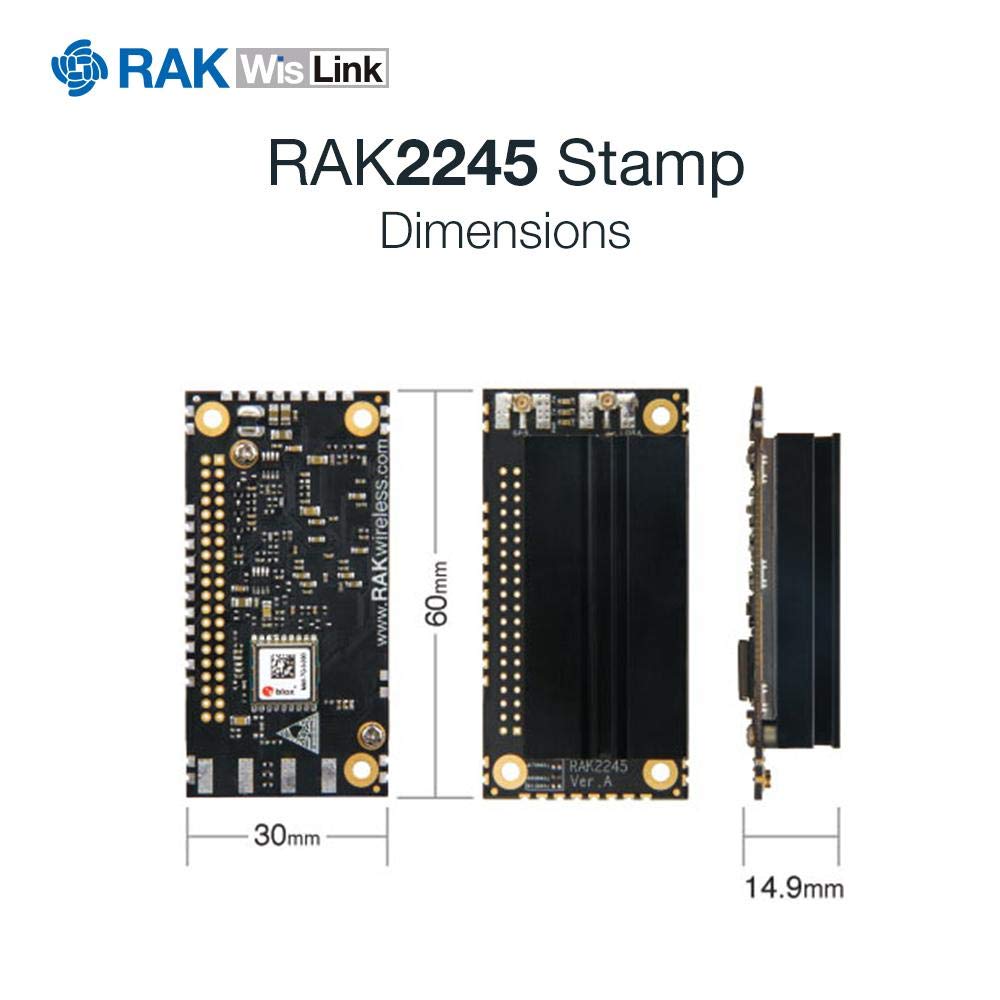

  • Board Dimensions: 60mm x 30mm x 14.9mm
  • Board Weight: Approximately 0.75 oz
  • Package Weight: 0.3kg (0.66lb.)
  • Package Size: 150mm x 90mm x 40mm (5.91in x 3.54in x 1.57in)
  • Package Inclusions: RAK2245 Stamp Edition Board only
