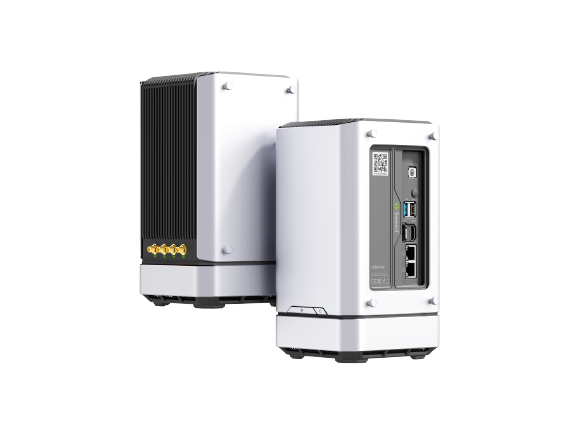

reServer is based on an ODYSSEY X86 v2 board and powered by Intel® Core™ 11th Gen. i3 and Intel UHD Graphics 48EUs (400 - 1250 MHz), which delivers high CPU and AI performance for various applications. It has two high-speed 2.5-Gigabit Ethernet ports and supports hybrid connectivity including 5G, LoRa, BLE and WiFi. reServer is of compact design to work efficiently in almost any scenario. The neat structure of reServer also makes it simple to access to the hard drives, memory and PCIe slots which allows easy installation, upgrades and maintenance.

Do not need the encloser? Get the main board of reServer, ODYSSEY X86 v2 board.

Features

• Compact design for a server with an overall dimension of 132mm*124mm*233mm
• Powered by the latest 11th Gen Intel® Core™ i3 CPU running up to 4.10GHz and Intel UHD Graphics 48EUs running up to 1.25 GHz

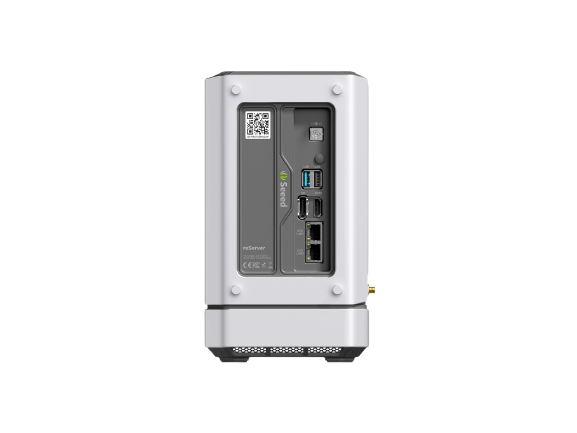

• Rich peripherals including dual® 2.5-Gigabit Ethernet ports, USB 3.2 Type-A port, USB 2.0 Type-A port, HDMI port and DP port
• Support hybrid connectivity including 5G, LoRa, BLE and WiFi (5G and LoRa need additional modules)
• Dual SATA III 6.0 Gbps data connectors for 3.5”/2.5" SATA hard disk drives with enough space inside the enclosure to store them both
• M.2 B-Key/ M-Key/ E-Key for expandability such as SSD, LTE/4G/5G, WiFi 6 Modules
• Quiet cooling fan with a large VC heat sink for excellent heat dissipation

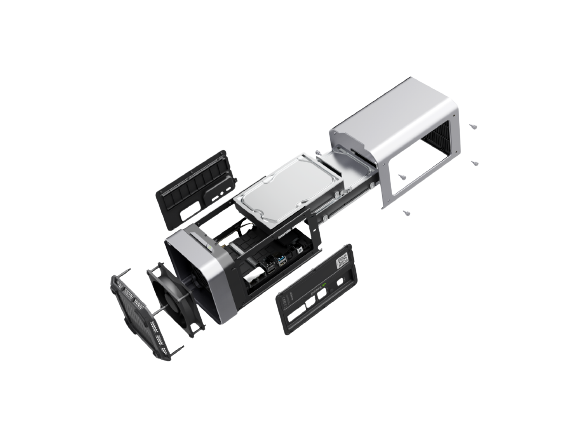

• Easy to install, upgrade and maintain with ease of access to the internal components after opening the enclosure
• Pre-installed Windows 10 Enterprise(Unactivated), also support other Windows OS and Linux OS


  Specifications

  Versions		Basic Versions			High Performance Versions
  Platform	Processor	Intel® Core™ 11th Gen. i3 1115G4	Intel® Core™ 11th Gen. i3 1125G4	Intel® Core™ 11th Gen. i5 1135G7	Intel® Core™ vPro® 11th Gen. i5 1145GRE	Intel® Core™ vPro® 11th Gen. i7 1185GRE
  	Cores/Threads	2C/4T	4C/8T	4C/8T	4C/8T	4C/8T
  	Frequency	Up to 4.10 GHz	Up to 3.70 GHz	Up to 4.20 GHz	1.50 GHz ~ 4.10 GHz	1.80 GHz ~ 4.40 GHz
  	Co-processor	Microchip® ATSAMD21G18 32-Bit ARM® Cortex-M0+ @ 48MHz			Raspberry Pi® RP2040 32-Bit Dual ARM Cortex-M0+ @ 133MHz
  Memory	Technology	Dual Channels DDR4-3200
  	Capacity	Support up to 64GB
  	ECC Memory Supported	NO			YES
  Graphics	Controller	Intel® UHD Graphics 48EUs (400 - 1250MHz)	Intel® UHD Graphics 48EUs (400 - 1250MHz)	Intel® Iris Xe Graphics G7 80EUs(400-1300MHz)	Intel® Iris Xe Graphics G7 80EUs(400-1300MHz)	Intel® Iris Xe Graphics G7 96EUs(400-1300MHz)
  Advanced Technologies	Intel® vPro®	NO			YES
  	Intel® Total Memory Encryption	NO			YES
  Network	Controller	Intel® Ethernet Controller I225-V			Intel® Ethernet Controller I225-LM
  Wireless	WiFi	M.2 E-Key(PCIE & CNVi Support), Intel® Wi-Fi 6 AX201(Optional)
  	Bluetooth	Bluetooth 5.0, BLE(Optional)
  Display	LCD	eDP 40-Pin 4 Lane Connector
  	HDMI	1 x HDMI 2.0b, up to 4Kx2Kx24bpp@60Hz
  	DP	1 x DP1.4a 7680x4320x24bpp@60Hz
  	Multiple Display	4 simultaneous displays with each display interface combination
  External I/O	Ethernet	2 x 2.5GbE LAN ports (RJ45, supports 10/100/1000/2500 Mbps), Intel® i225
  	HDMI/DP	One/One
  	USB Type-C	N/A			USB PD / USB 4.0 / Thunderbolt 4
  	USB Type-A	USB2.0 Type A x1 ; USB3.2 Type A x1			USB2.0 Type A x2 ; USB3.2 Type A x1
  	LED	Power Status
  	Power Supply	1x5.5x2.5mm DC Jack / Wafer 2.0mm 8pin
  	Micro Sim Card Slot	1
  Internal I/O	SATA	2 x SATA Gen III 6.0 Gb/s Data Connectors + 3 x SATA Power Connectors
  	COM Port	1 x RS-232/422/485, 1 x RS-232
  	GPIO	28-Pin Arduino Co-processor 2.54mm header			30-Pin Raspberry Pi Co-processor 2.54mm header
  	Audio	Realtek High Definition Audio, Microphone + headphone Combo Connector
  	USB2.0	USB2.0 9-pin Header x2 480Mbps
  	Fan	2 x 12V 4-wire Fan header, PWM Control
  	Front Panel Control	Power-on, Reset, Power Status LED, SATA Status LED
  	S/PDIF	3-Pin 2.54mm Header
  	SATA Power	WAFER4-Pin 2.0 pitch Connector
  	Co-CPU. Debug Port	6-Pin 0.5mm FPC Connector (SWD)
  Expansion	M.2 M-Key	1 x M-Key 2242/2280(PCIe 3.0 x4）
  	M.2 E-Key	1 x E-Key 2230(PCIe 3.0 x1; USB2.0 x1;Intel CNVi)
  	M.2 B-Key	1 x B-Key2242/2252/2280(PCIe 3.0 x2; USB2.0 x1)
  	High Speed I/O	1 X PCIe x4 Gen4			1 X PCIe 3.0 x4/SMBus/LPC/USB 2.0/CPU GPIO etc.
  Power	Supply Voltage	DC Jack: 12V			DC Jack: 12V-19V
  	RTC Battery	Lithium 3V/210mAH
  Feature	TPM	Support
  	Secure Boot	Support
  Certification	EMC	CE,FCC,TELEC
  Mechanical	Dimension	124mm*132mm*233mm
  	Thermal Solution	Heat Pipe Assemblies/Heat Spreading Vapor Chamber Assemblies
  	Weight	1800g

  Hardware Overview




  Part List

  1 x reServer
  1 x User Manual
  1 x Screwdriver
  1 x Fan Cable
  2 x 2.4/5GHz Wi-Fi Antenna
  1 x 60W AC-DC Power Adapter
