  2. Round Speaker Driver, 30W nom, >60W max, 8Ω
SGD Pricelist
Manufacturing Company :

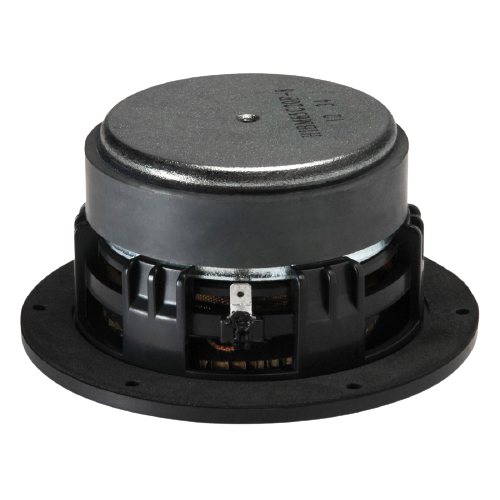

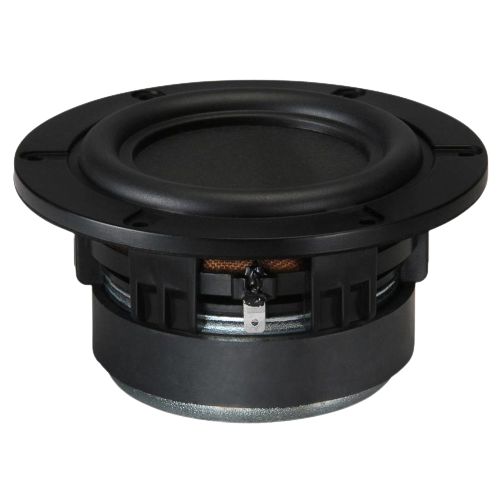

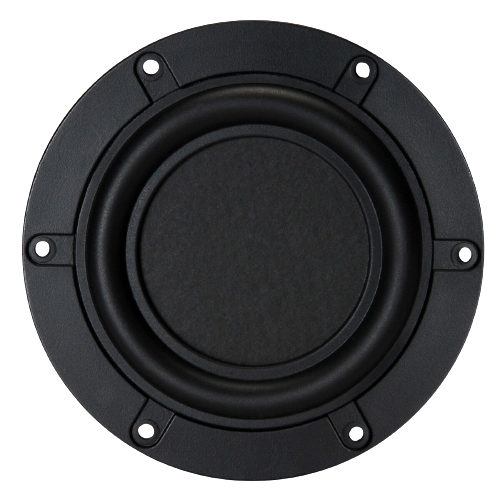

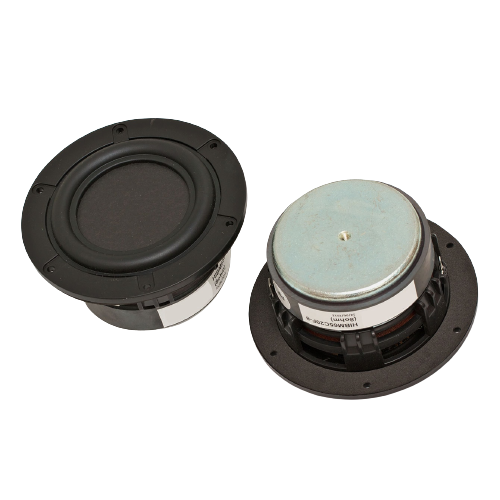

Round Speaker Driver, 30W nom, >60W max, 8Ω

The TEBM65C20F-8 Balanced-Mode Radiator (BMR) is an audio drive unit with an extended frequency response and wide directivity compared with a conventional drive unit. It combines the benefits of Tectonic bending-wave technology and pistonic modes of operation. It is ideally suited for compact audio applications that require a fullrange, high performance acoustic solution. It features an advanced ferrite motor system for low cost. A 4ohm version is also available.

    SG$ 14.28

    This combination does not exist.

    Lead Time : 12.0 weeks

    Add to Cart Get Best Price

    The TEBM65C20F-8 Balanced-Mode Radiator (BMR) is an audio drive unit with an extended frequency response and wide directivity compared with a conventional drive unit. It combines the benefits of Tectonic bending-wave technology and pistonic modes of operation. It is ideally suited for compact audio applications that require a fullrange, high performance acoustic solution. It features an advanced ferrite motor system for low cost. A 4ohm version is also available.

    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days


    Tectonic

    From removing the cone diaphragms found in traditional speakers to the use of 21st century bending wave modal technology, Tectonic leads the charge in ground-breaking audio innovation. Hear the difference in the crystal-clear voice intelligibility and wide directivity achieved in our Distributed Mode Loudspeakers (DML) and devices that utilize our Balanced Mode Radiator (BMR) drive units and exciters.


    More details

    Overview

    The TEBM65C20F-8 Balanced-Mode Radiator (BMR) is an audio drive unit with an extended frequency response and wide directivity compared with a conventional drive unit. It combines the benefits of Tectonic bending-wave technology and pistonic modes of operation. It is ideally suited for compact audio applications that require a fullrange, high performance acoustic solution. It features an advanced ferrite motor system for low cost. A 4ohm version is also available.







    Features

    • Full range: 60Hz – 20kHz

    • Extremely wide directivity; 180°

    • Nominal Impedance: 8 Ω

    • Diameter: 108mm (max OD)

    • Depth: 57mm

    • Mass: 685g






    This is a preview of the recently viewed products by the user.
    Once the user has seen at least one product this snippet will be visible.

    Recently viewed Products


    The TEBM65C20F-8 Balanced-Mode Radiator (BMR) is an audio drive unit with an extended frequency response and wide directivity compared with a conventional drive unit. It combines the benefits of Tectonic bending-wave technology and pistonic modes of operation. It is ideally suited for compact audio applications that require a fullrange, high performance acoustic solution. It features an advanced ferrite motor system for low cost. A 4ohm version is also available.



    Features

    • Full range: 60Hz – 20kHz

    • Extremely wide directivity; 180°

    • Nominal Impedance: 8 Ω

    • Diameter: 108mm (max OD)

    • Depth: 57mm

    • Mass: 685g

    Applications

    • Home theatre systems

    • Wireless speakers

    • Sound bars

    • Hi-Fi systems
