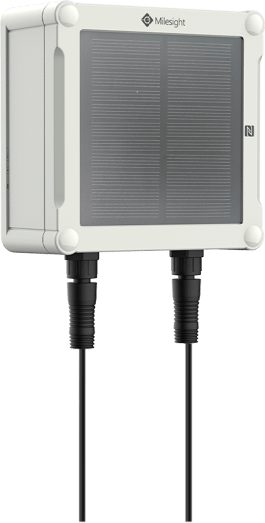

UC511 LoRaWAN Solenoid Valve Controller

LoRaWAN® Solenoid Valve Controller

Configuration Interface
Interface
Frequency band
Waterproof
Class
Power type
Battery Capacity

SG$ 218.16

This combination does not exist.

Lead Time : 2.0 weeks

Add to Cart Get Best Price

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Milesight

At Milesight IoT, we are passionate about the connectivity of “things” to the cloud. We leverage the value of the top trending technologies that transform the world we live in and are committed to our partners who share the same passion.

Do something

Overview

UC51x series LoRaWAN® wireless solenoid valve controller is a device used to remotely control DC latching solenoids of the valve. It contains 2 solenoid interfaces and 1 pulse interface, which can be easily controlled locally or remotely. Besides ultra-low-power LoRaWAN® technology, UC51x series also provides both solar and built-in battery power supply for uninterrupted operation. For outdoor applications, it equips with IP67-rated enclosure and M12 connectors to protect from water and dust under harsh environments.

Features

Compatible with standard DC latching solenoids
OPEN/CLOSE control by mobile APP locally or commands remotely
One pulse water meter interface for flow monitoring
Transmission distance up to 11km with line of sight
Waterproof design including IP67 case and M12 connectors
Solar powered and built-in chargeable battery
Quick wireless configuration via NFC
Time and flow control via Milesight IoT Cloud

Specifications for UC511 LoRaWAN Solenoid Valve Controller

LoRaWAN
Configuration Interface	NFC
External
Interface	Pules Output
Uncategorized
Class	Class A or Class C
Power type	Chargeable battery + Solar Panel or Unchargeable battery
Battery Capacity	19000mAh or 2550mA
Frequency band	AS923
Waterproof	IP67

UC51x Series Datasheet

UC51x Series User Guide

UC51x Series Communication Protocol

UC51X LORAWAN WIRELESS SOLENOID VALVE CONTROLLER

Empower Automatic & Precision Irrigation
Solenoid Valve Control
Water Flow Monitoring
IP67 Waterproof
Long Battery Life

SOLENOID VALVE CONTROL

2 x output for connecting DC latching solenoid valve

Time-Based Control
Volume-Based Control

WATER FLOW MONITORING

2 x digital input for connecting water meter

Programmable Unit per Pulse
Enable Precise Irrigation

IP67 WATERPROOF

Equipped with IP67 rated enclosure to satisfy the outdoors all-weather long time operation.

FLEXIBLE INSTALLATION

LoRaWAN Solenoid Valve Controller Installation

SPECIFICATIONS

Model	UC511	UC512
Power Supply	Rechargeable 4900 mAh battery with solar panel 1-month battery life without charging (Class C)	Non-rechargeable Replaceable 19000 mAh Li-SOCI2 battery Up to 3-year battery life (Class A)
Solenoid interface	2 ×2-Wire 12 VDC Latching Solenoid
Dimension	120.1 ×120.1 ×55.4 mm (4.73×4.73×2.18 in)
Frequency	AU915/AS923
Ingress Protection	lP67
operating Temperature	-20~60°c
