Manufacturing Company :

Industrial Modbus Gateway, Serial to Ethernet converter

Industrial Modbus Gateway, Serial to Ethernet converter

    SG$ 66.23

    This combination does not exist.

    Lead Time : 3.0 weeks

    Add to Cart Get Best Price

    Industrial Modbus Gateway, Serial to Ethernet converter


    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days


    This is a preview of the recently viewed products by the user.
    Once the user has seen at least one product this snippet will be visible.

    Recently viewed Products


    USR-M511 are modbus gateways that query Modbus RTU/ASCII slave and display data in internal webpage, and modbus gateways USR-M511 support reply the querying from Modbus TCP Master. Modbus gateways USR-M511 provide a flexible method to control and monitor your Modbus RTU/ASCII devices.

    ● Support RS232/RS485 or RS422
    ● Ethernet accessory
    ● Internal webpage to control and monitor
    ● Auto query Modbus RTU/ASCII Slave device

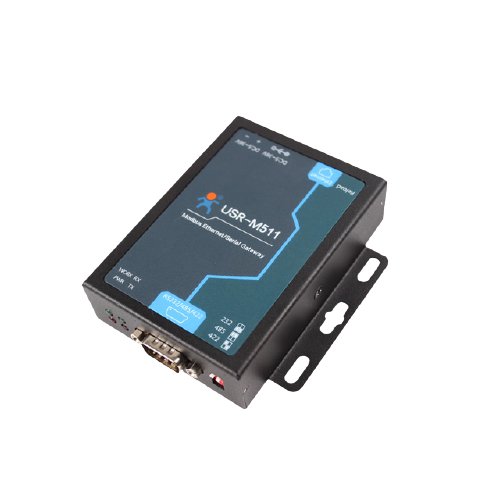

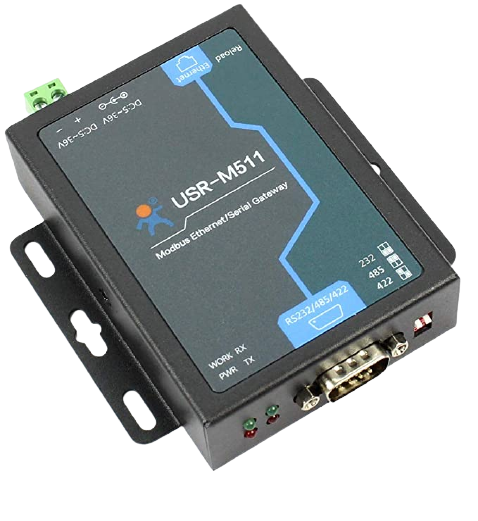

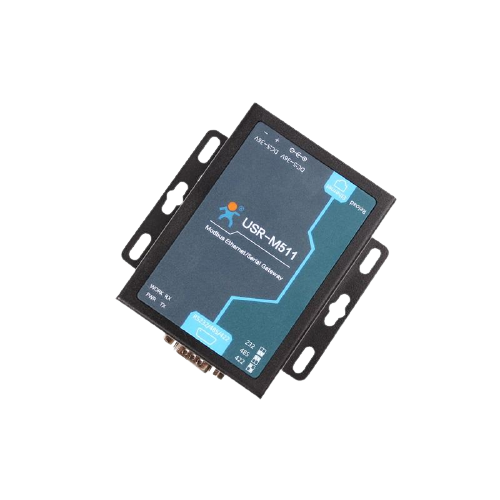

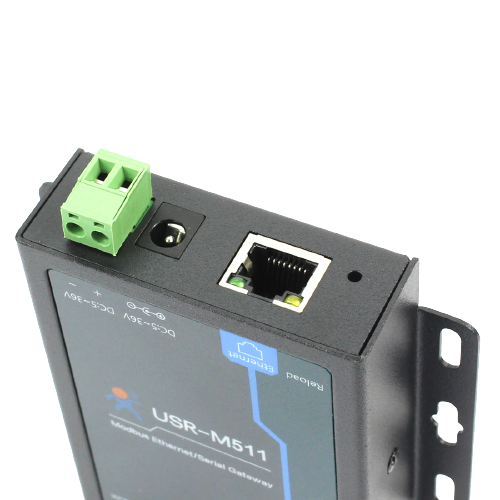

    Introduction of Modbus Gateways USR-M511

    USR-M511 are modbus gateways that query Modbus RTU/ASCII slave and display data in internal webpage, and modbus gateways USR-M511 support reply the querying from Modbus TCP Master. Modbus gateways USR-M511 provide a flexible method to control and monitor your Modbus RTU/ASCII devices.



    Industrial Modbus RTU to Modbus TCP Converters  USR-M511

    Modbus RTU/ASCII <===> Mobus TCP

    No timeout for frequent queries by 16 masters

    The target address of 8 slaves can be set arbitrarily

    Supports Modbus slave management

    Features of Modbus RTU to Modbus TCP Converters USR-M511

    Support RS232/RS485 or RS422.

    Ethernet accessory.

    Internal webpage to control and monitor.

    Auto query Modbus RTU/ASCII Slave device.

    Modbus RTU/ASCII to Modbus TCP.

    10/100Mbps ethernet interface, support Auto-MDI/MDIX.

    Baud rate support 600bps~230.4K bps; Support None, Odd, Even, Mark, Space.

    Support hardware Reload.

    Support Static IP/DHCP.

    Support hardware Reload.



    Basic Function of Modbus RTU to Modbus TCP Converters USR-M511

    Applications

    Unmanned Weighing Data Acquisition Solution

    Connect the Modbus gatewayS USR-M511 to the control center, and connect the various switched through the Modbus protocol to the Ethernet network. Support the control camera capture, weighing instrument, LED screen and other equipment and other equipment on the unified management of data.
