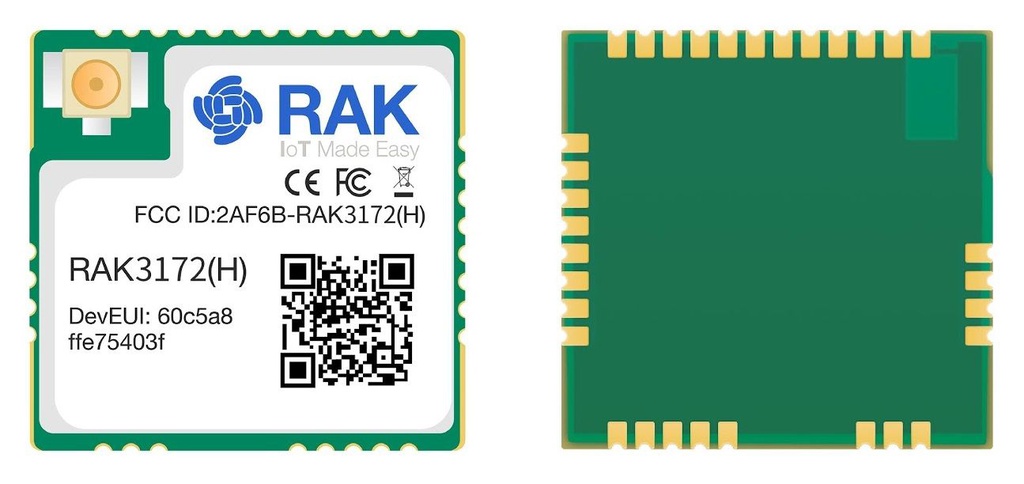

WisDuo RAK3172 LPWAN Module STM LoRaWAN SoC

RAK3172 is a low-power long-range transceiver module for LoRa and LoRaWAN applications based on STM32WLE5CC chip. Its firmware is based on RAKwireless Unified Interface V3 (RUI3) that allows you create different functionalities using RUI APIs. It provides an easy-to-use, small-size, low-power solution for long-range wireless data applications.

  • Configuration Interface
  • Class
  • Frequency band
  • RF connector
  • LoRaWAN version
  • Chipset
  • Sleep Power consumption
  • P2P support
  • Max Transmit power
  • ARM Cortex

SG$ 8.44

This combination does not exist.

Add to Cart Get Best Price

RAK3172 is a low-power long-range transceiver module for LoRa and LoRaWAN applications based on STM32WLE5CC chip. Its firmware is based on RAKwireless Unified Interface V3 (RUI3) that allows you create different functionalities using RUI APIs. It provides an easy-to-use, small-size, low-power solution for long-range wireless data applications.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Rakwireless

This is a simple hero unit, a simple jumbotron-style component for calling extra attention to featured content or information.


Do something

Overview

RAK3172 Low-Power Long Range Transceiver module that is based on STM32WLE5CC chip. It provides an easy-to-use, small-size, low-power solution for long-range wireless data applications. This module complies with Class A, B & C of LoRaWAN 1.0.3 specifications. It can easily connect to different LoRaWAN server platforms like TheThingsNetwork (TTN), Chirpstack, Actility, etc. It also supports LoRa Point to Point (P2P) communication mode which helps you in implementing your own customized long-range LoRa network quickly.


You can configure the mode and operation of the module using AT commands via a UART interface. RAK3172 also offers low-power features which are very suitable for battery-powered applications.

Features

  • Based on STM32WLE5CC55

  • LoRaWAN 1.0.3 specification compliant

  • Supported bands: EU433, CN470, IN865, EU868, AU915, US915, KR920, RU864, and AS923

  • LoRaWAN Activation by OTAA/ABP

  • LoRa Point to Point (P2P) communication

  • Easy to use AT Command Set via UART interface

  • Long-range - greater than 15 km with optimized antenna

  • Ultra-Low Power Consumption of 1.69 μA in sleep mode

  • Supply Voltage: 2.0 V ~ 3.6 V

  • Temperature Range: -40° C ~ 85° C

Specifications for WisDuo RAK3172 LPWAN Module STM LoRaWAN SoC

LoRaWAN
Configuration Interface USB
Uncategorized
Frequency band AS923 or AU915 or EU868 or IN865 or KR920 or US915
RF connector iPEX or Pad
Class Class A, B, C
LoRaWAN version 1.0.3
Chipset STM32WLE5CC
Sleep Power consumption 1.69uA
P2P support Yes
Max Transmit power 22dBm
ARM Cortex M4 with 256K flash
This is a preview of the recently viewed products by the user.
Once the user has seen at least one product this snippet will be visible.

Recently viewed Products


Description

RAK3172 Low-Power Long Range Transceiver module that is based on STM32WLE5CC chip. It provides an easy-to-use, small-size, low-power solution for long-range wireless data applications. This module complies with Class A, B & C of LoRaWAN 1.0.3 specifications. It can easily connect to different LoRaWAN server platforms like TheThingsNetwork (TTN), Chirpstack, Actility, etc. It also supports LoRa Point to Point (P2P) communication mode which helps you in implementing your own customized long-range LoRa network quickly.

You can configure the mode and operation of the module using AT commands via a UART interface. RAK3172 also offers low-power features which are very suitable for battery-powered applications.

#Features

  • Based on STM32WLE5CC55
  • LoRaWAN 1.0.3 specification compliant
  • Supported bands: EU433, CN470, IN865, EU868, AU915, US915, KR920, RU864, and AS923
  • LoRaWAN Activation by OTAA/ABP
  • LoRa Point to Point (P2P) communication
  • Easy to use AT Command Set via UART interface
  • Long-range - greater than 15 km with optimized antenna
  • Ultra-Low Power Consumption of 1.69 μA in sleep mode
  • Supply Voltage: 2.0 V ~ 3.6 V
  • Temperature Range: -40° C ~ 85° C

#Specifications

This section covers the hardware and software specifications of RAK3172. Also, it includes the block diagram and the updated firmware link of the RAK3172 WisDuo module.

#Overview

#Block Diagram

RAK3172 System Block Diagram
Figure 1: RAK3172 System Block Diagram

#Hardware

The hardware specification discusses the interfaces, pinouts and its corresponding functions and diagrams. It also covers the parameters of the both RAK3172 Modules in terms of RF, electrical, mechanical, and operating characteristics
