Rakwireless

RAKwireless is an industrial-leading connectivity provider that builds infrastructures and Modular Edge devices for IoT, Smart City, and Smart Agriculture markets with in-house developed solutions, utilizing LPWA (Low Power Wide Area) technologies.


Do something

Overview

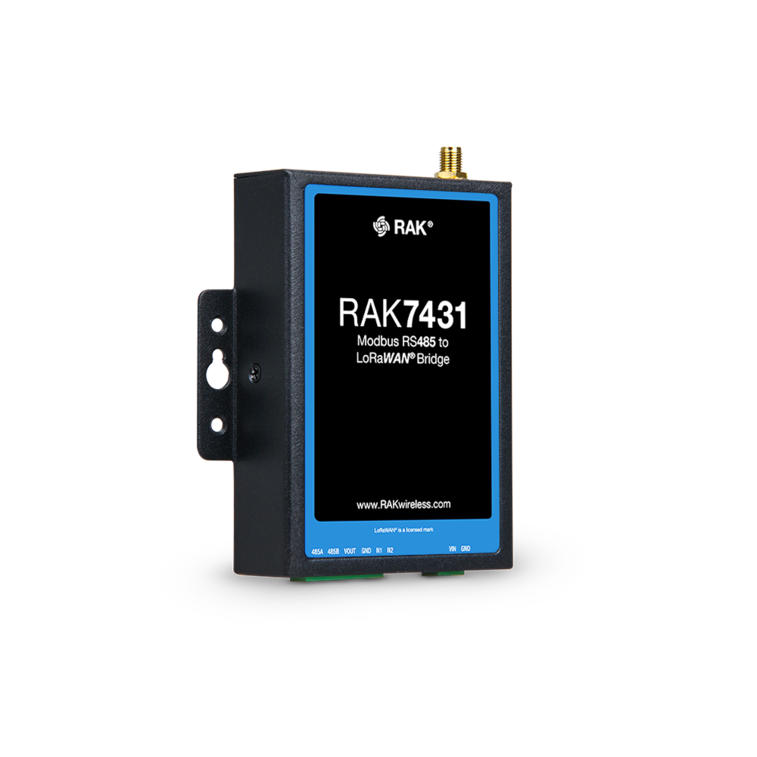

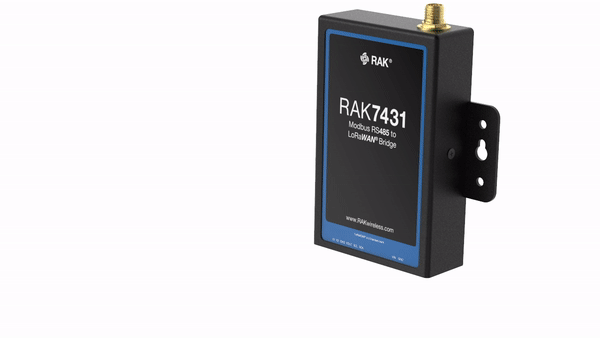

WisNode Bridge Serial (RAK7431) is a Modbus RS485 to LoRaWAN® bridge designed for industrial applications. The device relays Modbus data using the LoRaWAN network as a means of wirelessly transmitting to and from the end devices.


WisNode Bridge Serial can operate in all of the LoRaWAN bands within the standard parameters defined by the LoRa® Alliance. Its open environment range is 15+km and in industrial cases, where there are heavy obstructions in the path of the RF signal performance is improved compared to conventional wireless systems due to the characteristics of LoRa as a modulation technique. This allows for consistently good signal quality within the confines of large factories, densely populated offices, storehouses, etc.


This RS485 compatible device can address up to 16 client terminal nodes. The conversion from and to LoRa frames is seamless and allows for real-time control and monitoring of multiple RS485 devices. bus data to access and control the RS485 terminal nodes.

Features

  • LoRaWAN 1.0.3 protocol stack, supports Class A & C

  • Working modes: Polling mode, transparent mode, and packet mode

  • Remote cloud management of RS485 devices

  • Can address up to 16 RS485, a queue with up to 32 instruction sets

  • Industrial grade STM MCU: ultra-low-power (4uA sleep) and wide temperature range of operation.

  • Wide range of input voltages, 8-48V DC input

  • Can power RS485 devices via a dedicated output.

  • Mounting: Wall, DIN rail, and magnetic mounting

  • Compliant with IEC61000-4-2, IEC61000-4-4, and 18KV HMB ESD protection

Specifications for WisNode Bridge Serial

Frequency band AS923 or AU915 or EU868 or IN865 or US915
This is a preview of the recently viewed products by the user.
Once the user has seen at least one product this snippet will be visible.

Recently viewed Products


Product Description

WisNode Bridge Serial (RAK7431) is a Modbus RS485 to LoRaWAN® bridge designed for industrial applications. The device relays Modbus data using the LoRaWAN network as a means of wirelessly transmitting to and from the end devices.

WisNode Bridge Serial can operate in all of the LoRaWAN bands within the standard parameters defined by the LoRa® Alliance. Its open environment range is 15+km and in industrial cases, where there are heavy obstructions in the path of the RF signal performance is improved compared to conventional wireless systems due to the characteristics of LoRa as a modulation technique. This allows for consistently good signal quality within the confines of large factories, densely populated offices, storehouses, etc.

This RS485 compatible device can address up to 16 client terminal nodes. The conversion from and to LoRa frames is seamless and allows for real-time control and monitoring of multiple RS485 devices. bus data to access and control the RS485 terminal nodes.

WisNode Bridge Serial together with RAK's LPWAN Gateway and LoRa Server products can easily and quickly build a wireless industrial field control system. WisNode Bridge Serial adopts industrial protection design, supports wide range voltage supply, supports wall mounting and DIN rail installation, facilitates field installation and use.

Key Features

  • LoRaWAN 1.0.3 protocol stack, supports Class A & C
  • Working modes: Polling mode, transparent mode, and packet mode
  • Remote cloud management of RS485 devices
  • Can address up to 16 RS485, a queue with up to 32 instruction sets
  • Industrial grade STM MCU: ultra-low-power (4uA sleep) and wide temperature range of operation.
  • Wide range of input voltages, 8-48V DC input
  • Can power RS485 devices via a dedicated output.
  • Mounting: Wall, DIN rail, and magnetic mounting
  • Compliant with IEC61000-4-2, IEC61000-4-4, and 18KV HMB ESD protection

Applications

  • Power system data collection and control
  • Smart agricultural sensor data collection
  • Industrial sensor data acquisition
  • Electrical equipment control in smart building

Product Details

  • Product Dimensions: 93.6 x 100.3 x 24mm (±2mm)
  • Product Weight: 250g
  • IP Rating: IP31 (Protected from tools and wires greater than 2.5 millimeters)
  • Certification: CE/FCC

Package Inclusions

  • 1pc WisNode Bridge Serial
  • 1pc 24V/300mA Power Adapter
  • 1pc Antenna for LoRa
  • 1pc Micro USB Cable
  • 1pc Mounting Kit
