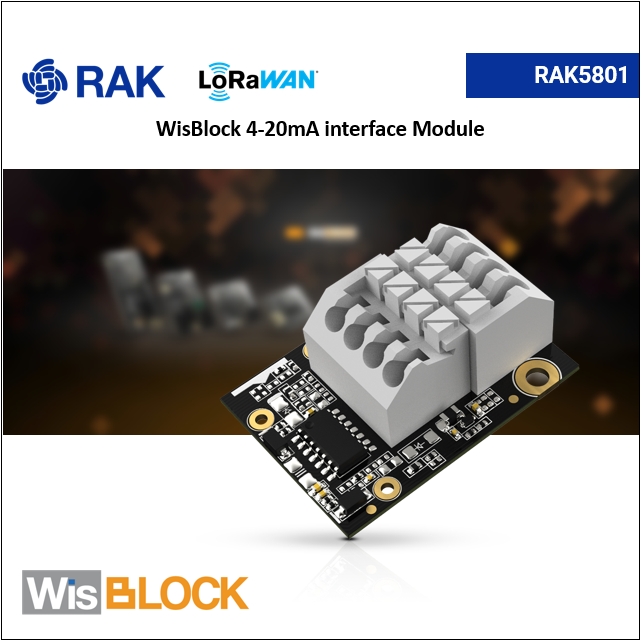

WisBlock 4-20mA interface Module

RAK5801 is a WisBlock IO which extends the WisBlock system with two current measurement inputs. The current is converted into a voltage that can be read by the analog input pins of the WisBlock Core module.

    SG$ 10.58

    This combination does not exist.

    Lead Time : 2.0 weeks

    Add to Cart Get Best Price

    RAK5801 is a WisBlock IO which extends the WisBlock system with two current measurement inputs. The current is converted into a voltage that can be read by the analog input pins of the WisBlock Core module.

    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days

    Rakwireless

    RAKwireless is an industrial-leading connectivity provider that builds infrastructures and Modular Edge devices for IoT, Smart City, and Smart Agriculture markets with in-house developed solutions, utilizing LPWA (Low Power Wide Area) technologies.


    Do something
    This is a preview of the recently viewed products by the user.
    Once the user has seen at least one product this snippet will be visible.

    Recently viewed Products


    Product Description

    RAK5801 is a WisBlock IO that extends the WisBlock system with two current measurement inputs. The current is converted into a voltage that can be read by the analog input pins of the WisBlock Core module. A ready-to-use SW library and tutorials make it easy to connect any sensor that is using a 4-20mA current output.

    RAK5801 supports two 4-20mA interfaces and has a 12V power output to supply sensors. In addition, an I2C interface connection is available on the crimping terminal.

    RAK5801 combined with the RAK4631 WisBlock Core gives your solution an interface to industrial sensors and actuators that supports the 4-20mA interface. This module is the bridge between such sensors and LoRaWan® communication, LoRa® point to point connections or BLE.

    RAK5801 is ideal for battery-powered applications because of its low power consumption. In addition, the WisBlock system allows to power down the module completely to reduce the power consumption of the system even more.

    Key Features

    • 4 to 20mA current to voltage converter.
    • Low power consumption
    • Small form factor
    • 12V output for sensors
    • 005mA conversion accuracy
    • 2kV ESD protection
    • Supports 2 RS485 Ports

    Package Inclusion

    • 1pc RAK5801
