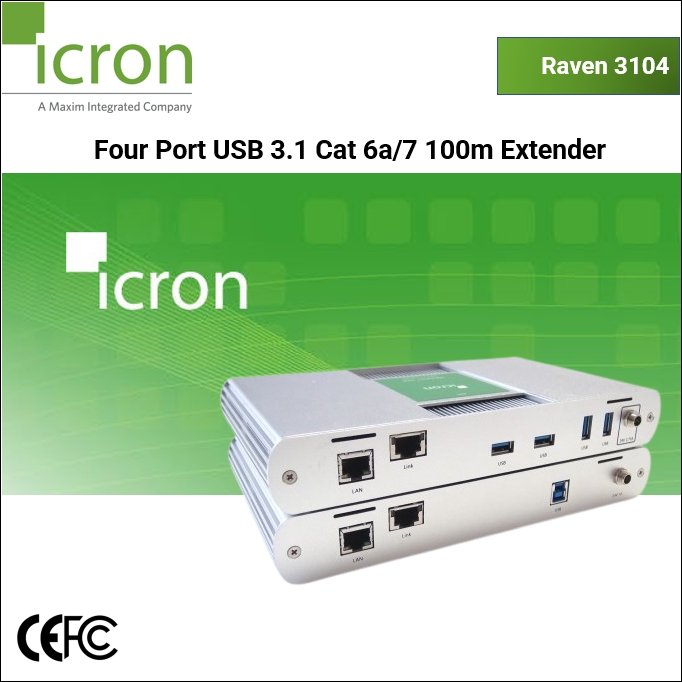

4-port USB 3.1, 100m CAT 6a/7 Extender System

The USB 3-2-1 extender offers you a 4-port USB 3.1 over CAT6a solution that can extend USB up to 100m. As an industry first, this extender is backward compatible with USB 2.0 and 1.1 devices for simultaneous use at full 5Gbps bandwidth.

  • USB standard
  • Distance
  • Power Adapter
  • USB ports
  • Transmission Media
  • Power Adapter Location

SG$ 1,453.08

This combination does not exist.

Lead Time : 33.0 weeks

Add to Cart Get Best Price

The USB 3-2-1 extender offers you a 4-port USB 3.1 over CAT6a solution that can extend USB up to 100m. As an industry first, this extender is backward compatible with USB 2.0 and 1.1 devices for simultaneous use at full 5Gbps bandwidth.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Icron

Icron is a Maxim Integrated brand, as well as a leading global developer and manufacturer of high-performance USB and video extension solutions for commercial and industrial markets including Medical, Military, Industrial Automation, Machine Vision, ProAV, Education, and Mining/Exploration.



FIND OUT MORE

Overview

The Icron USB  3-2-1 Raven™ 3104 is the world’s first USB 3.1 extender allowing users to extend USB 3.1 Gen 1 (5Gbps) device types as well as USB 2.0 and 1.1 devices across a point-to-point connection up to 100m over a single CAT 6a/7 cable. Applications include extending USB 3 conferencing cameras and audio devices for boardrooms and conference rooms. The Raven extension series has been successfully tested with most major USB 3.1 conferencing cameras in conjunction with major UC conferencing applications (Zoom, Teams, Skype).


This 4-port USB 3.1 extender supports data rates at up to 5Gbps and is plug and play – no software drivers required – for all major operating systems: Windows®, macOS™, Linux® and Chrome OS™.


Additionally, this ExtremeUSB-C™ based USB 3.1 extender system is FCC/CE Class B certified and, being backward compatible, is ideal for use with all USB peripherals in addition to USB 3.1 conference cameras including flash drives, hard drives, keyboards, mice, interactive whiteboards, touchscreens, audio devices, and other USB 3, 2 and 1 devices.

Features

  • USB 3.1 Gen 1 data rate up to 5Gbps

  • Integrated 4-port USB 3.1 hub supporting all USB 3.1, 2.0, 1.1 devices simultaneously at full bandwidth; although if Isochronous support is required, use Raven 3104 Pro

  • Up to 1.2A (6W) per USB port

  • 100/1000Mbps Ethernet channel; LAN pass-through

  • Single cable, CAT 6a/7 up to 100m

  • Point-to-point connection

  • FCC and CE (Class B) compliance

  • Two-year warranty

  • ExtremeUSB-C™ suite of features:

  • Transparent USB extension supporting USB 3, 2 and 1

  • True plug and play; no software drivers required

  • Works with all major operating systems:  Windows®, macOS™, Linux® and Chrome OS™

Specifications for 4-port USB 3.1, 100m CAT 6a/7 Extender System

USB Extender
USB standard USB 3.1
Distance 100m
Uncategorized
Power Adapter Europe or Australia or Japan or North America or Unit Kingdom
USB ports 4 USB ports
Transmission Media CAT 6a/7
Power Adapter Location LEX and REX
This is a preview of the recently viewed products by the user.
Once the user has seen at least one product this snippet will be visible.

Recently viewed Products


Overview

The Icron USB  3-2-1 Raven™ 3104 is the world’s first USB 3.1 extender allowing users to extend USB 3.1 Gen 1 (5Gbps) device types as well as USB 2.0 and 1.1 devices across a point-to-point connection up to 100m over a single CAT 6a/7 cable. Applications include extending USB 3 conferencing cameras and audio devices for boardrooms and conference rooms. The Raven extension series has been successfully tested with most major USB 3.1 conferencing cameras in conjunction with major UC conferencing applications (Zoom, Teams, Skype).

This 4-port USB 3.1 extender supports data rates at up to 5Gbps and is plug and play – no software drivers required – for all major operating systems: Windows®, macOS™, Linux®, and Chrome OS™.

Additionally, this ExtremeUSB-C™ based USB 3.1 extender system is FCC/CE Class B certified and, being backward compatible, is ideal for use with all USB peripherals in addition to USB 3.1 conference cameras including flash drives, hard drives, keyboards, mice, interactive whiteboards, touchscreens, audio devices, and other USB 3, 2 and 1 devices.

Features

  • USB 3.1 Gen 1 data rate up to 5Gbps
  • Integrated 4-port USB 3.1 hub supporting all USB 3.1, 2.0, 1.1 devices simultaneously at full bandwidth; although if Isochronous support is required, use Raven 3104 Pro
  • Up to 1.2A (6W) per USB port
  • 100/1000Mbps Ethernet channel; LAN pass-through
  • Single cable, CAT 6a/7 up to 100m
  • Point-to-point connection
  • FCC and CE (Class B) compliance
  • Two-year warranty
  • ExtremeUSB-C™ suite of features:
    • Transparent USB extension supporting USB 3, 2 and 1
    • True plug and play; no software drivers required
    • Works with all major operating systems:  Windows®, macOS™, Linux®, and Chrome OS


Specifications

RANGE

  • Directly connect up to 100m (328 ft) over CAT 6a/7 cable

SPEEDS

  • USB 3.1: up to 5Gbps
  • USB 2.0: up to 480Mbps
  • USB 1.1: up to 12Mbps

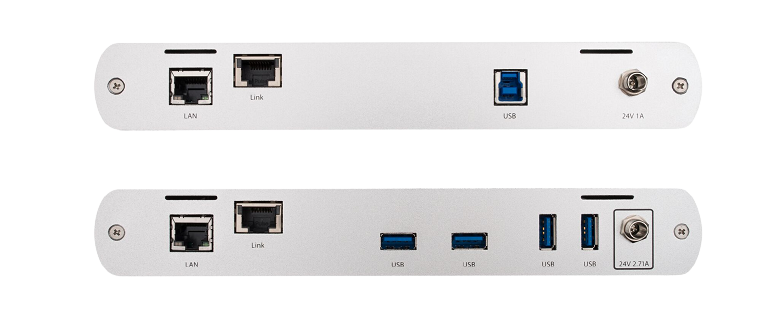

LEX (Local Extender)

  • 1x USB 3.1 Gen 1 Type B Receptacle
  • 1x RJ45 Ethernet 100/1000 Port
  • 1x RJ45 Ethernet Link Port
  • 24V 1A DC Locking Jack
  • Enclosure Material: Silver anodized aluminum
  • Dimensions: 137.3mm x 232.1mm x 33.0mm (5.4″ x 9.1″ x 1.3″)
  • 920g (2.03 lbs.)
  • Mounting: 4 surface mounting holes or optional mounting kit available

REX (Remote Extender)

  • 4x USB 3.1 Gen 1 Type-A Receptacles
  • 1x RJ45 Ethernet 100/1000 Port
  • 1x RJ45 Ethernet Link Port
  • 24V 2.71A DC Locking Jack
  • Available Current: up to 1.2A (6W) per USB port
  • Enclosure Material: Silver anodized aluminum
  • Dimensions: 137.3mm x 232.1mm x 33.0mm (5.4″ x 9.1″ x 1.3″)
  • 990g (2.18 lbs.)
  • Mounting: 4 surface mounting holes or optional mounting kit available

ENVIRONMENTAL

  • Operating Temperature: 0C to 50C (32F to 122F)
  • Storage Temperature: -20C to 70C (-4F to 158F)
  • Operating Humidity: 20% to 80% relative humidity, non-condensing
  • Storage Humidity: 10% to 90% relative humidity, non-condensing

COMPLIANCE

  • EMC: FCC (Class B), CE (Class B)
  • Environmental: RoHS2/3, REACH, Conflict Minerals

SUPPORT

  • Warranty: 2-year
