The USB 2.0 Ranger® 2304 is a four port USB 2.0 high speed extension solution, enabling USB 2.0 connections at up to 480Mbps over 100m/330ft of CAT 5e/6/7 cabling. The Ranger 2304 is the latest USB 2.0 extender system from Icron, offering the same reliable USB 2.0 extension benefits as the Ranger 2204, but with faster throughputs when using read/write devices such as external hard drives as well as supporting a greater number of connections (up to 31 devices and hubs). The Ranger 2304 provides an integrated four port remote USB 2.0 powered hub delivering 600mA to each port supporting all USB 1.1, 2.0 and 3.0 device types (up to 480Mbps).

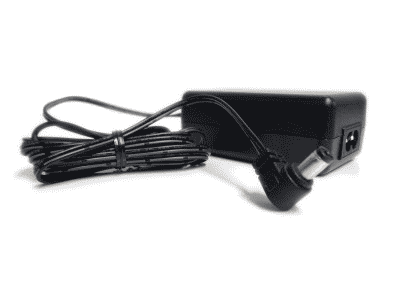

24V 1A, Lvl6, Intnl, 2.0mm (Locking) plug, IEC320-
C7/C8 2-pin for 3022

5V 3A (GND), Lvl6, Intnl, 1.7mm (ID) plug, IEC320-
C13/C14 3-pin

5V 3A DC output, 100-240VAC input power supply with 1.7mm (ID) plug, and IEC320-C7/C8 2-pin
connector

100-240V, 2.1mm (ID) plug, IEC320-C7/C8 2-pin for 2211, 2212 LEX, 2304, 3500 REX, 4500 REX

IEC320-C7/C8 2-pin power cord for Japan

1.8m, A Male to B Male (6ft)

100-240V, 2.5mm (ID) plug with locking connector,
IEC320-C7/C8 2-pin for 3022

1.8m (6ft) black HDMI

Single Link, 1.5m, DVI-D black

5V 3A DC output, 100-240VAC input power supply with 1.7mm (ID) plug, and IEC320-C7/C8 2-pin
connector

USB 2.0/1.1 A to B, 2.0m, 24AWG

USB Extender Mounting Kit for 2301, 2312 (Silver) Kit includes: 2 brackets, 4 locking washers and 4 (M2.5 x 7mm) Phillips raised cheese head screws (Order: 1 kit per local or remote extender; 2 kits per system)

USB Extender Mounting Kit for 2201, 2204, 2212,
2224, 2244, 2304, 3022 (Silver) USB Extender
Mounting Kit for 2201, 2204, 2212, 2224, 2244,
2304, 3022 (Silver)
Kit includes: 2 brackets, 4 locking washers and 4 (M3 x 5mm) Phillips pan head screws (Order: 1 kit per LEX or REX; 2 kits per system)

USB Extender Mounting Kit for 2201, 2204, 2212,
2224, 2244, 2304, 3022 (Silver)
Kit includes: 2 brackets, 4 locking washers and 4 (M3 x 5mm) Phillips pan head screws (Order: 1 kit per LEX or REX; 2 kits per system)

EL/VU family mounting kit set of 4 mounting brackets and stencil (hardware not included; order
1 kit per system)

2-Port Remote-Powered 100m Cat 5e Extender System, 100-240V Power Adapter, JP Power Cord

USB 3.0 only, 2-Port (Locking) 100m Multimode Fiber Extender System, 100-240V Locking Power
Adapter, JP Power Cord

The EL5353 comes with the following items in the box:

Remote extender (REX)
Local extender (LEX)
1 x USB 2.0 Type A to Type B cable
1 x DVI cable
2 x 100-240V power adapter
2 x Country specific power cord
Quick start guide
*Please be aware that the EL5353 does NOT come with a CAT5e cable.

4-Port Ethernet LAN Extender System, 100-240V
Power Adapter, JP Power Cord
