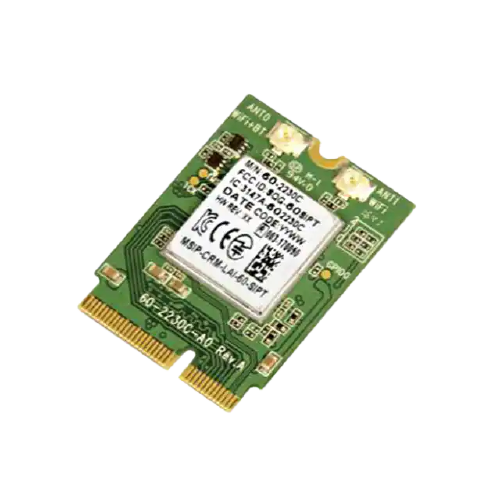

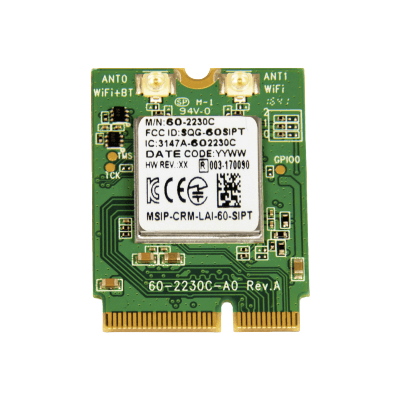

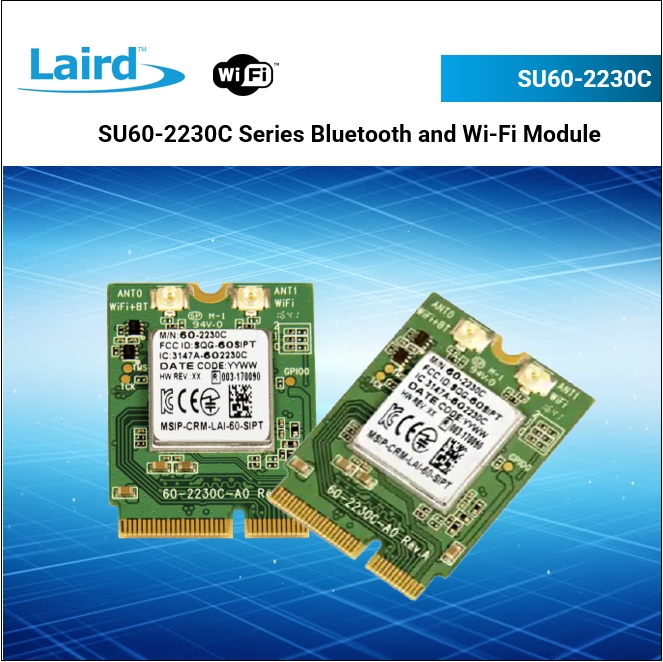

60-2230C Series Bluetooth and WiFi Module

60 Series, Summit Module w/u.FL, USB/USB

  • Summit Interface

SG$ 48.62

This combination does not exist.

Lead Time : 26.0 weeks

Add to Cart Get Best Price

60 Series, Summit Module w/u.FL, USB/USB

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Laird


We simplify the rapid integration of wireless connectivity with innovative solutions, world-class manufacturing and unparalleled customer support. Our culture creates a fast moving, flexible work environment attracting employees who focus on providing accelerated profitable growth. Our vision is to be the technology behind every innovative and reliable wireless solution by 2025.


FIND OUT MORE

Overview

Powered by the powerful NXP 88W8997 chipset, Laird Connectivity’s 60-2230C Series Wi-Fi + Bluetooth modules achieve the best possible connectivity and performance in any RF environment. With industry-leading software, broad OS support, and M.2 form factor, Laird Connectivity’s 60 Series offers flexibility to meet your needs. The 60 Series introduces 802.11ac, 2x2 MU-MIMO, and Bluetooth 5.1 on one low-power module, delivering future-ready cutting-edge technology for your product. Building on the security and robustness inherited from Laird Connectivity’s expertise in its 40, 45, and 50 Series modules mean ultra-high data rates, improved performance, and the most reliable wireless in crucial applications such as medical and industrial.

Features

  • IEEE 802.11ac (Wave 2), 2x2 receive Multi-User MIMO spatial stream multiplexing with data rates up to MCS9 (866.7 Mbps)

  • Bluetooth (Class 1 and Class 2)

  • Bluetooth 5.1

  • Bluetooth Smart Ready operation

  • Three-way coexistence for WLAN and Bluetooth

Specifications for 60-2230C Series Bluetooth and WiFi Module

Summit Interface Basic or PCIE UART or PCIE USB or SDIO UART or USB UART or USB USB
This is a preview of the recently viewed products by the user.
Once the user has seen at least one product this snippet will be visible.

Recently viewed Products


Powered by the powerful NXP 88W8997 chipset, Laird Connectivity’s 60-2230C Series Wi-Fi + Bluetooth modules achieve the best possible connectivity and performance in any RF environment. With industry-leading software, broad OS support, and M.2 form factor, Laird Connectivity’s 60 Series offers flexibility to meet your needs. The 60 Series introduces 802.11ac, 2x2 MU-MIMO, and Bluetooth 5.1 on one low-power module, delivering future-ready cutting-edge technology for your product. Building on the security and robustness inherited from Laird Connectivity’s expertise in its 40, 45, and 50 Series modules mean ultra-high data rates, improved performance, and the most reliable wireless in crucial applications such as medical and industrial.

Specifications

Wi-Fi Spec
802.11 a/b/g/n/ac
Dimensions (L x W x H)
22 mm x 30 mm x 3.3 mm
BT Capable
5.1
Antenna Options
2x U. FL
Chipset (Wireless)
NXP 88W8997
Compliance
Certifications and approvals for FCC (USA), IC (Canada), ETSI (Europe), KCC (Korea), Giteki (Japan), RCM (AUS/NZ)
Connector Type
M.2 Connector (2230 E-Key)
Data Rate
up to 866 Mbps
Encryption
WEP, TKIP, AES
Frequency
2.4 GHz to 2.495, 5.15 GHz to 5.825 GHz (including DFS)
Frequency Range
2400 MHz - 5825 MHz
Operating Humidity
10 to 90% humidity (non-condensing)
Operating Systems Supported
Android / Linux
Operating Temp (°C)
-30 °C - 85 °C
Protocols
Wi-Fi Media Access Protocol
Security
WEP, WPA, WPA2
Spatial Streams
2 (2x2-MIMO)
Wireless Specification
802.11ac Wi-Fi + Bluetooth 5.1
