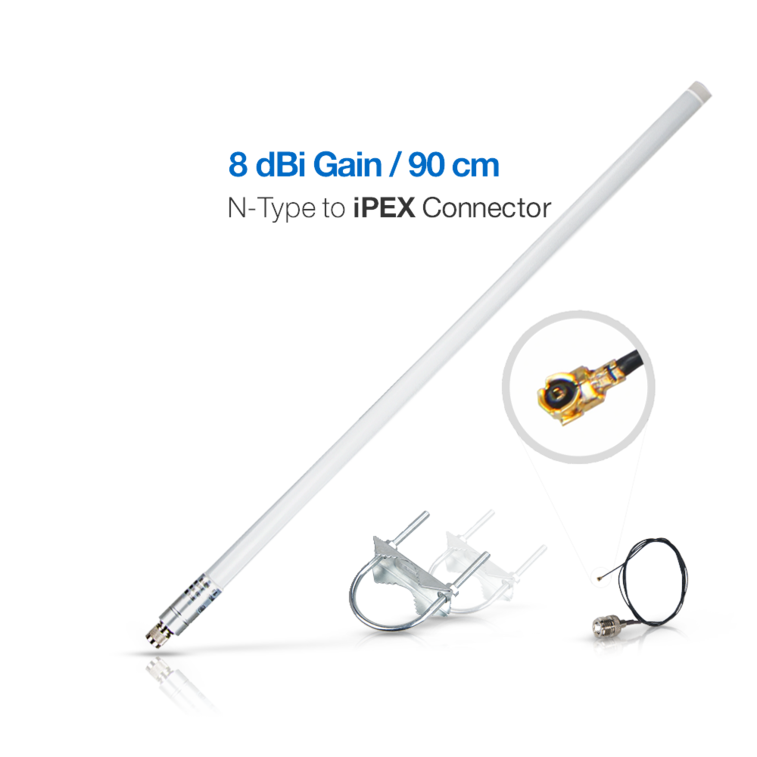

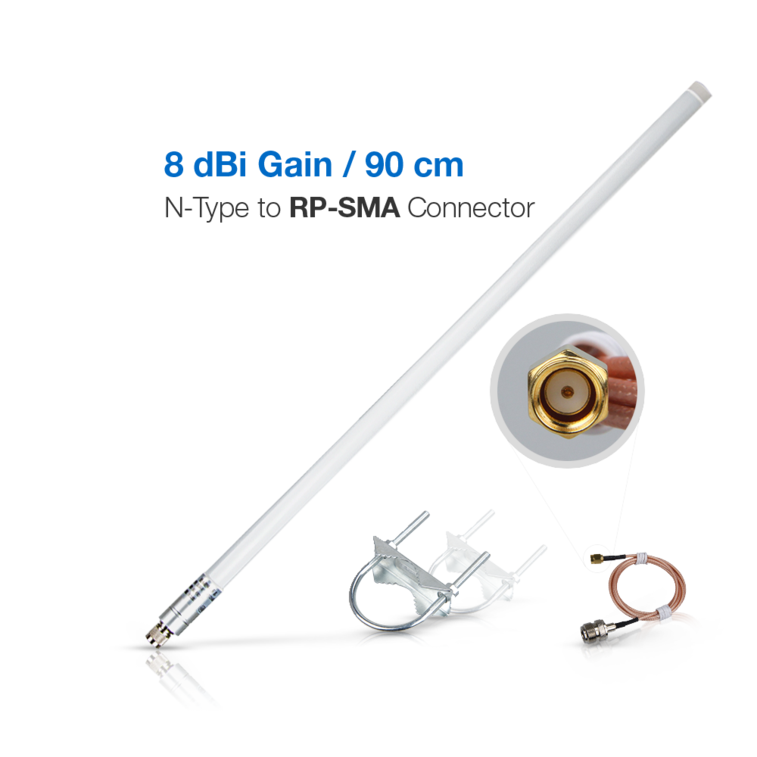

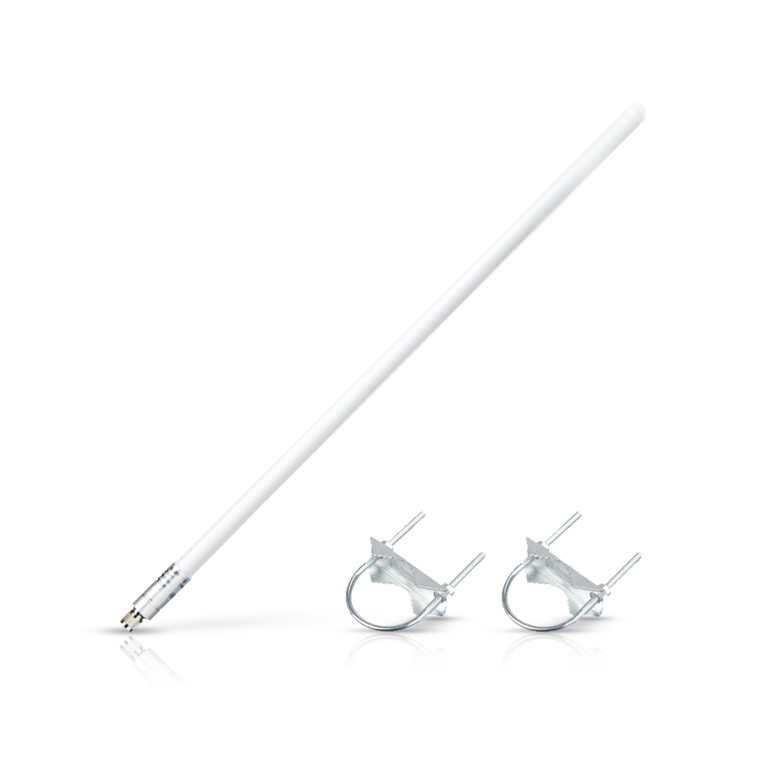

8dBi Fiber Glass Antenna
The second generation of RAK antennas for LoRa® incorporate high-performance omni-directional elements which support ultra high frequency (UHF) LoRa® bands (US915, AU915, KR920, and AS923).
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Specifications for 8dBi Fiber Glass Antenna
| Converter | N-Type to iPEX or N-Type to RP-SMA |
| Frequency | 900~930MHz or 858~878MHz |
This is a preview of the recently viewed products by the user.
Once the user has seen at least one product this snippet will be visible.
Once the user has seen at least one product this snippet will be visible.
Recently viewed Products
Ag5300 Datasheet
Features
- Frequency Range: 900~930MHz
- Max Gain: 8.0dBi
- VSWR: ≤ 1.5
- High efficiency
- Vertically polarized dipole
- Easy to mount with the included Installation kit
Figure 1: RAKARG15 Overview
#Specifications
| Model | RAKARG15 |
|---|---|
| Frequency Range | 900MHz~930MHz |
| Peak Gain | 8.0 dBi |
| VSWR | ≤ 1.5 |
| Efficiency | ≤65% |
| Feed Impedance | 50 Ohms |
| Polarization | Vertical |
| Cover material(color) | Fiber glass (White) |
| Connector type | N-type male |
| Dimensions (mm) | Փ25.0mm x 900.0mm |
| Operation Temp (°C) | -30°C ~ +65°C |
| Humidity range | 5%~95% |
#VSWR
| Frequency(MHz) | VSWR |
|---|---|
| 902MHZ | 1.28 |
| 910MHZ | 1.20 |
| 928MHz | 1.17 |
Figure 2: RAKARG15 VSWR graph
#Peak Gain & Efficiency
| Frequency (MHz) | Gain (dBi) | Efficiency (%) |
|---|---|---|
| 900 | 6.3 | 43.3 |
| 905 | 6.6 | 47.1 |
| 910 | 7.6 | 50.4 |
| 915 | 7.3 | 52.6 |
| 920 | 7.4 | 52.4 |
| 925 | 7.6 | 52.7 |
| 930 | 8.3 | 50.9 |
| Average: | 50.0 |
#Radiation Patterns
Figure 3: Radiation pattern at 900MHz
Figure 4: Radiation pattern at 910MHz
Figure 5: Radiation pattern at 920MHz
Figure 6: Radiation pattern at 930MHz
#Mechanical Specifications
Figure 7: RAKARG15 Atenna dimensions
