Ag320R 15W Wireless Charging Receiver

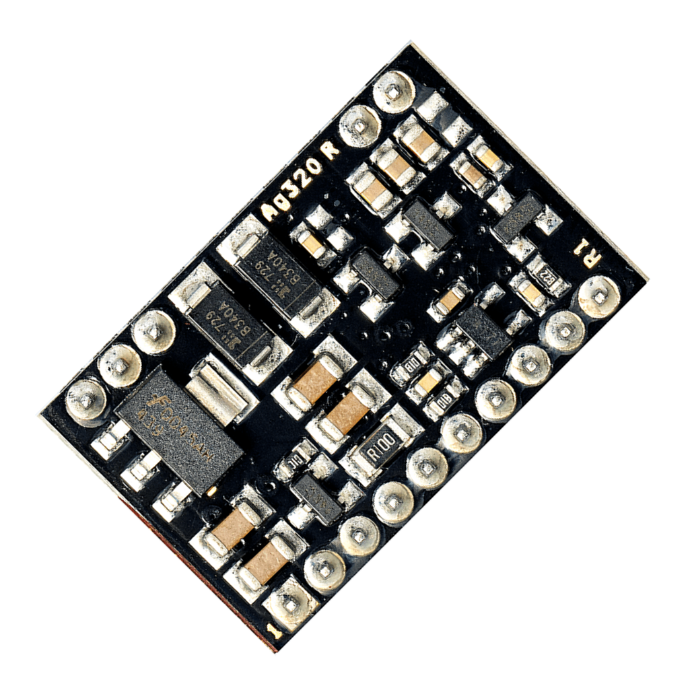

Ag320R shown here is a 15W output wireless power receiver module, providing a 12V regulated output

This product is no longer available.

Ag320R shown here is a 15W output wireless power receiver module, providing a 12V regulated output

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Silvertel

Silvertel specialises in the design and development of power modules and advanced telecom interface solutions. These solutions include Power over Ethernet modules supporting applications up to 200W. Smart Lighting modules combining PoE with LED driver functionality. Qi Wireless Power modules - transmit and receive. , Battery charger modules for Lithium Ion (Li-Ion), Lithium Polymer (Li-Po) and sealed Lead Acid (SLA) batteries. Analog Telecom modules - SLIC and DAA (FXS and FXO).


FIND OUT MORE

Overview

Silvertels’ Ag300 series are a range of wireless power modules, typically used for wireless charging. Using Silvertel modules, wireless power transfer products can be quickly designed by the simple addition of a compliant coil. Ag320T and Ag320R are a high-power 15W output solution for heavier duty applications than the standard Ag301/312 solution. Ag320R shown here is a 15W output wireless power receiver module, providing a 12V regulated output, to aid the effortless, fast design of higher power wireless charging products. Ag320R is used exclusively with the Ag320T transmit power module for an end to end cost effective design.

Features

  • Complementary Module Pair

  • Ag320T (Transmit Power) & Ag320R (Receive Power)

  • Up to 15 Watts Wireless Power

  • Low profile DIL package modules

  • 12V Input & 12V Output @ 1.3A Max

  • Automatic Compatible

  • Transmit/Receiver Verification

  • Overload & Short-circuit Protection

  • Low Standby Power Consumption

  • Backwards Compatible with 5W Qi

  • No external components required, only coil

This is a preview of the recently viewed products by the user.
Once the user has seen at least one product this snippet will be visible.

Recently viewed Products

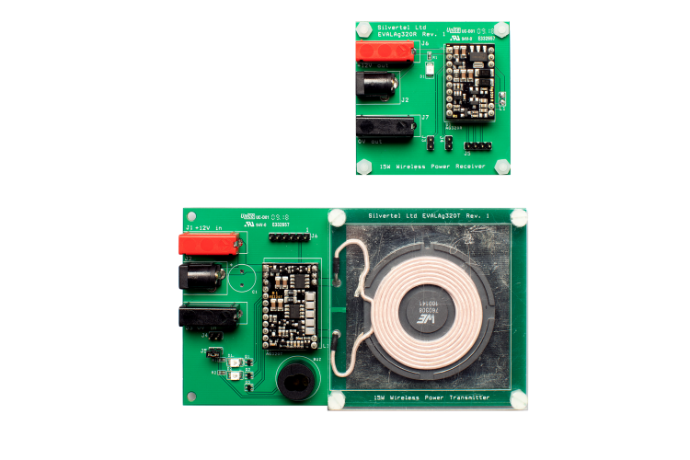

The Ag320R is a 15-watt wireless power receiver module; designed to work with the Ag320T wireless power transmitter, typically used in wireless charging applications. With the increased use of mobile & portable devices, the Ag320R & Ag320T wireless power modules offer a wide range of benefits: - There are no cables to get tangled and you don’t have the problem of having different plugs or sockets for various devices. There is no risk of electrical shock, as there are no exposed metal parts. Can be used in explosive environments as there are no contacts to cause sparks. This means that there is no contact degradation due to friction, corrosion or abrasion. The units can be completely sealed for use in harsh environments, as their operation is not affected by dirt, dust, water, or chemicals and can even be used underwater. Can be used in a medical environment where disinfecting and sterilization are required. Has 3 times the power of standard Qi wireless power making it suitable for a wide range of higher power applications.
