B4065C Whip Antenna Closed Coil Collinear Vertical

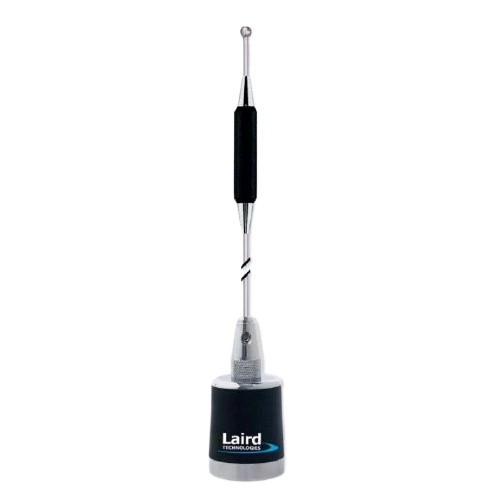

The Laird / Antenex B4065C is a 36 inch long, Chrome base coil, omnidirectional whip antenna for operation in the 406-430 MHz UHF band, with NMO base. Metal ground plane required.

  • Connector
  • Gain
  • Frequency
  • Antenna Category
  • Antenna Style
  • Antenna Polarity
  • Bands
  • SISO or MIMO
  • Directional
  • Height/Length (mm)
  • Thickness/Diameter (mm)
  • Impedance
  • IP Rating

SG$ 114.55

This combination does not exist.

Lead Time : 28.0 weeks

Add to Cart Get Best Price

The Laird / Antenex B4065C is a 36 inch long, Chrome base coil, omnidirectional whip antenna for operation in the 406-430 MHz UHF band, with NMO base. Metal ground plane required.


Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Laird Connectivity


Laird Connectivity simplifies the rapid integration of wireless technologies with market-leading wireless modules and antennas, integrated sensor and gateway platforms, and customer-specific wireless solutions. Our best-in-class support and comprehensive engineering services help reduce risk and improve time-to-market.


FIND OUT MORE

Overview

Laird Technologies continues to develop and improve all land mobile radio antenna products. Years of refinement in the mechanical and electrical design of load coil products have resulted in the most technically advanced antennas on the market.

These mobile antennas are designed and built for demanding applications and typically outlast the cars they are mounted on. The antennas are manufactured

in over 100 variations and each model is permanently marked for model and frequency. No ground plane antennas provide flexibility in any mounting

application, while dual and wideband models attain full value out of today’s advanced radios. Please contact Laird Technologies for availability on additional products and mobile applications.

Features


  • Gold plated contact provides the most corrosion resistance and best power transfer over time

  • ABS material is injection molded directly around the solid brass inserts for a virtually indestructible load coil housing that will not leak or disassemble

  • Stainless steel shock spring or elastomer spring options dampens vibration and will not rust

  • O-ring built into the base provides a weather-tight seal with gold push pin contact for best power transfer over time

Specifications for B4065C Whip Antenna Closed Coil Collinear Vertical

Antenna
Connector NMO
Gain 3 - 5dBi
Frequency 430-460MHz
Antenna Category UHF (380-600 MHz)
Antenna Style Base Coil Antennas
Antenna Polarity Vertical
Bands Single band
SISO or MIMO SISO
Directional Omni
Height/Length (mm) 914.4
Thickness/Diameter (mm) 34.93
Uncategorized
Impedance 50 Ohm
IP Rating IP67
This is a preview of the recently viewed products by the user.
Once the user has seen at least one product this snippet will be visible.

Recently viewed Products


None

More Information

The Laird / Antenex B4065C is a 36 inch long, Chrome, base loaded mobile UHF whip antenna with an NMO base. This antenna does require a metal ground plane. It is omnidirectional and offers 5 dBi gain and accepts up to 100-200 watts max power and operates in the 406-430 MHz range.

Laird Technology’s ongoing commitment to refinement in mechanical and electrical design has resulted in the most technically advanced mobile load coil antennas on the market. Exclusive features such as stainless steel whips, housings constructed with ABS material injected molded around a solid brass insert, and gold plated push pin contacts make Laird Technologies the obvious choice for quality and long-lasting value for demanding mobile radio communications.

FEATURES:

  • Frequency Range: 406-430 MHz
  • Gain: 5 dBi
  • Length: 36 inches
  • 100% tested on a network analyzer
  • FIVE YEAR FACTORY WARRANTY

Specifications

SKUB4065C
Manufacturer Part NumberB4065C
ManufacturerLaird
Antenna CategoryUHF (380-600 MHz)
Working Frequency406-430 MHz
Gain5 dBi
Antenna StyleBase Coil Antennas
PolarityVertical
BandsSingle
SISO or MIMOSISO
Directional or OmniOmnidirectional
Impedance50 Ohm
VSWR: < X: 12.0:1
Horizontal/Azimuth Beamwidth360
Vertical/Elevation Beamwidth70
Spring LoadedNo
Height/Length (inches)36
Height/Length (mm)914.4
Thickness/Diameter (inches)1.375
Thickness/Diameter (mm)34.93
Operating Temp (Celsius)(-45 to 85)
ColorChrome
Connector TypeConnector - Bottom
Connector 1NMO
IP RatingIP67
OK for Outdoor UseYes
VehicularYes
Ground Plane RequiredNo
Product ConditionNew
