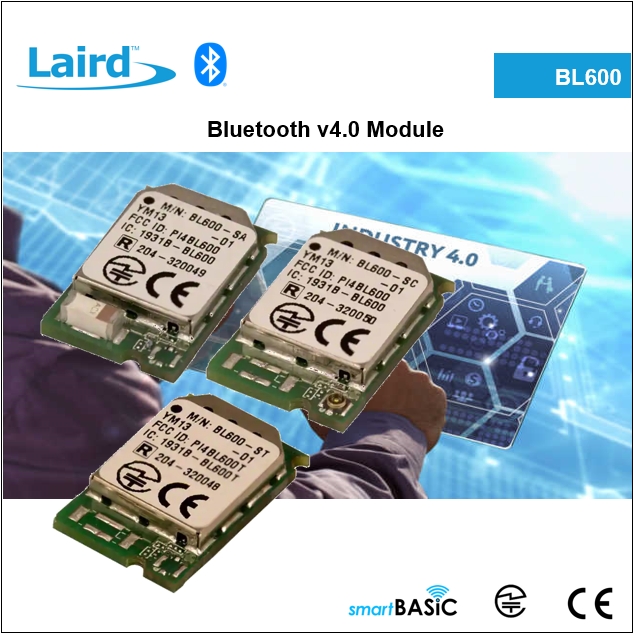

BL600-SA Bluetooth 4.0 Module

The BL600 Series modules from Laird make it easy to add single-mode Bluetooth Low Energy (BLE), or Bluetooth Smart, to small, portable, power-conscious devices, including those powered by AAA or coin cell batteries.

Middle ware
Interfaces
BT Class
Other wireless
Operation Temperature
Stack on Board
Antenna
BLE connection
Bluetooth mode
Chipset

SG$ 17.37

This combination does not exist.

Lead Time : 28.0 weeks

Add to Cart Get Best Price

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Laird Connectivity

Laird Connectivity simplifies the rapid integration of wireless technologies with market-leading wireless modules and antennas, integrated sensor and gateway platforms, and customer-specific wireless solutions. Our best-in-class support and comprehensive engineering services help reduce risk and improve time-to-market.

FIND OUT MORE

Overview

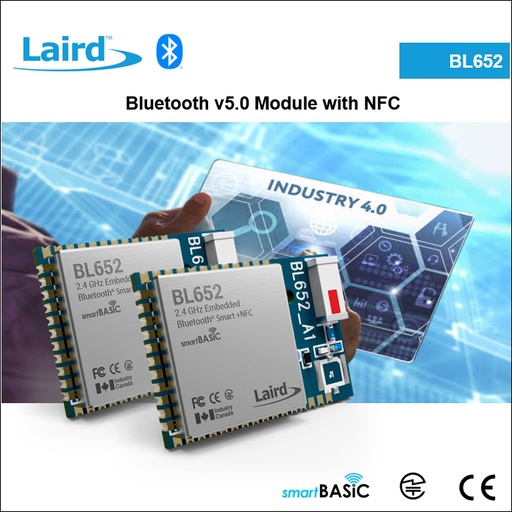

Laird’s BL652 contains the latest generation silicon with Bluetooth v5 capabilities and groundbreaking ultra-low power performance. Building on the expertise of the BL600 Series, the BL652’s smaller form factor, class-leading Nordic nRF52 silicon, optimized low power schemes, and smartBASIC programming language provides a secure, stable, hostless Bluetooth environment. The BL652 introduces Bluetooth v5 (Firmware v28.7.3.0 or later) and NFC, bringing industrial security and feature expansion to Laird’s proven Bluetooth Low Energy modules. Let Laird’s innovative BL652 series and decades of expertise in Bluetooth module design speed your product to market.

Features

Bluetooth 5 Bluetooth Low Energy (BLE) plus NFC
Widest range of configurable interfaces: UART, I2C, SPI, ADC, GPIO, PWM, FREQ, and NFC
Industrial Temp Rating (-40º to +85º C)
Ultra-Small footprint (14mm x 10mm x 2.1mm)
BLE Peripheral/Central roles with DTM embedded
Major security upgrades: AES-128, Diffie-Hellman pairing, link-layer privacy
Hostless operation – Internal MCU reduces BOM
Larger flash file systems for data and app storage
Built on years of experience with Nordic (BL600 Series BLE modules)
Fully featured development kit with Arduino shield connectors, support for multiple external sensors
Application Design Choice: Leverage our smartBASIC or utilize Nordic SDK directly.

Specifications for BL600-SA Bluetooth 4.0 Module

Bluetooth Module
Middle ware	Smart Basic or None
MCU
Interfaces	UART
Uncategorized
Antenna	Internal antenna or external antenna or PCB Trace
BT Class	Class 2
Other wireless	None
Operation Temperature	-40 °C ~ +85 °C
Stack on Board	Yes
BLE connection	5
Bluetooth mode	BLE4.0
Chipset	nRF51822

Ag5300 Datasheet

Our BL652 contains the latest generation silicon with Bluetooth 5 Low Energy capabilities and groundbreaking ultra-low power performance. Building on the expertise of the BL600 Series, the BL652’s smaller form factor, class-leading Nordic nRF52 silicon, optimized low power schemes, and smartBASIC programming language provides a secure, stable, hostless Bluetooth environment.

The BL652 introduces Bluetooth 5 and NFC (via firmware v28.7.3.0 and later), bringing industrial security and feature expansion to our proven Bluetooth Low Energy modules. Let our innovative BL652 series and decades of expertise in Bluetooth module design speed your product to market.

Features

Bluetooth 5 Bluetooth Low Energy (BLE) plus NFC
Widest range of configurable interfaces: UART, I2C, SPI, ADC, GPIO, PWM, FREQ, and NFC
Industrial Temp Rating (-40º to +85º C)
Ultra-Small footprint (14mm x 10mm x 2.1mm)
BLE Peripheral/Central roles with DTM embedded
Major security upgrades: AES-128, Diffie-Hellman pairing, link-layer privacy
Hostless operation – Internal MCU reduces BOM
Larger flash file systems for data and app storage
Built on years of experience with Nordic (BL600 Series BLE modules)
Fully featured development kit with Arduino shield connectors, support for multiple external sensors
Application Design Choice: Leverage our smartBASIC or utilize Nordic SDK directly.
