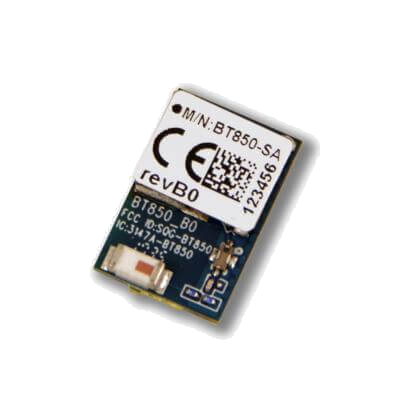

BT800-02 Dual Mode Bluetooth 4.2 HCI module
The BT800 series provides exceptionally low consumption with outstanding range. Supporting the latest Bluetooth v4.0 Specification with EDR (Enhanced Data Rate), this Laird Connectivity module enables OEMs to accelerate their development time for leveraging either Classic Bluetooth or Bluetooth LE into their operating system-based devices.
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
The BT800 series provides exceptionally low consumption with an outstanding range. Supporting the latest Bluetooth v4.0 Specification with EDR (Enhanced Data Rate), this Laird module enables OEMs to accelerate their development time for leveraging either Classic Bluetooth or BLE into their operating system-based devices.
Bluetooth v4.0 - dual-mode (Classic Bluetooth and Bluetooth Low Energy)
Class 1 output - 8 dBm
USB, GPIO, I2S, and PCM
Industrial temperature range
Bluetooth SIG approvals
FCC, IC, CE, and Japan approvals
Specifications for BT800-02 Dual Mode Bluetooth 4.2 HCI module
|Antenna||External Antenna or Integrate Antenna|
|BT Class||Class 1|
|Operation Temperature||30 °C ~ +85 °C|
|Stack on Board||No|
|Bluetooth mode||Dual mode 4.2|
Once the user has seen at least one product this snippet will be visible.
Recently viewed Products
Datasheet - BT800 Module.pdf

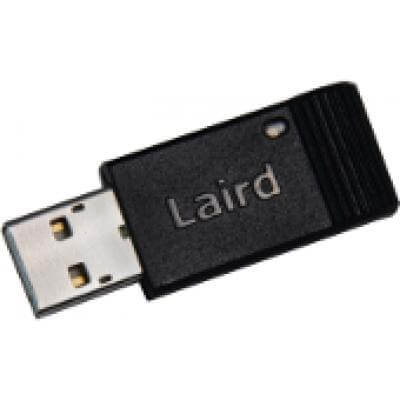

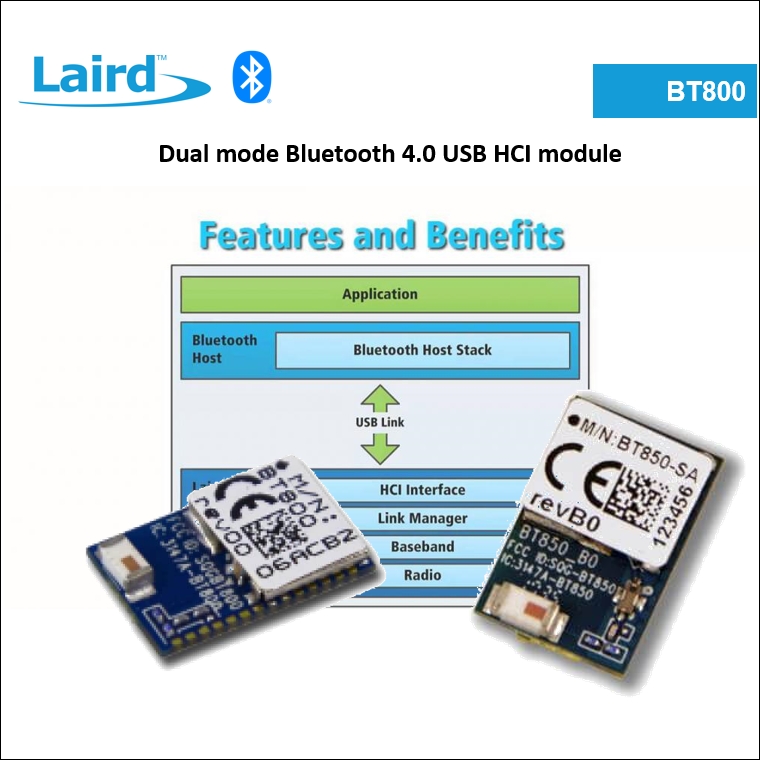

The BT800 series of USB HCI modules and packaged dongle is Laird’s first dual-mode Bluetooth v4.0 offerings, bringing support for Classic Bluetooth and Bluetooth Low Energy (BLE) in a tiny package. Leveraging the market-leading CSR 8510 chipset, the BT800 series provides exceptionally low power consumption with outstanding range. Supporting the latest Bluetooth v4.0 Specification with EDR (Enhanced Data Rate), the Laird BT800 series enables OEMs to accelerate their development time for leveraging either Classic Bluetooth or Bluetooth Low Energy (BLE) into their operating system-based devices. The BT800 has a footprint as small as 8.5 x 13 mm, yet output power at 8 dBm. This makes these modules ideal for applications where designers need both performance and minimum size. For maximum flexibility in systems integration, they are designed to support a full-speed USB interface plus GPIO, plus I2S and PCM audio interfaces. These modules present an HCI interface with native support for Windows and Linux Bluetooth stacks. All BT800 series devices are fully qualified by the Bluetooth SIG. This also allows designers to integrate their existing pre-approved Bluetooth Host and Profile subsystem stacks to gain Bluetooth END product approval for their products. The BT800 series is engineered to provide excellent RF performance with an integrated antenna and additional bandpass filters to further reduce the regulatory and testing requirements for OEMs, ensuring a hassle-free development cycle. As an additional benefit of the BT800 series, Laird has implemented CSR’s HID (Human Interface Device) Proxy Mode enabling out of the box HID connectivity for BLE pointing devices and/or BLE keyboard functionality, requiring zero host device software or configuration. The BT820 is a packaged dongle version of the BT800 module that allows OEMs to plug the device into any Windows or Linux device that supports USB connectors and an inbuilt Bluetooth software stack in its operating system.
NOTE: HID Proxy mode on the BT820 works with “Just Works” devices and will not pair with BT devices that require a pincode or passkey. A fully-featured, low-cost developer’s kit is available for prototyping, debug and integration testing of the BT800 series modules and further reduces risk and time in development cycles.
Features and Benefits
▪ Bluetooth v4.0 - Dual mode – Classic Bluetooth – Bluetooth Low Energy
▪ Compact footprint
▪ Class 1 output – 8 dBm
▪ USB, GPIO, I2S & PCM
▪ Industrial temperature range
▪ 64k EEPROM support for HID proxy mode*
▪ Bluetooth SIG approvals ▪ FCC, ISED, MIC, and EU approvals
