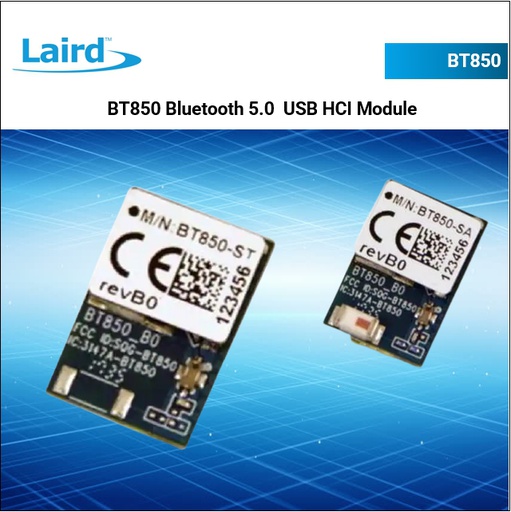

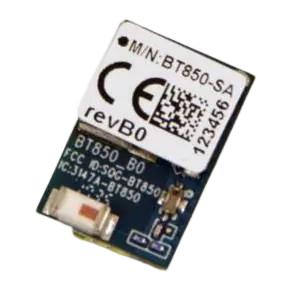

BT860 Series Bluetooth 5.0 Dual Mode USB HCI Module

DVK - BTv4.2 Dual Mode UART HCI - External Antenna

  • Antenna

SG$ 12.22

This combination does not exist.

Lead Time : 13.0 weeks

Add to Cart Get Best Price

DVK - BTv4.2 Dual Mode UART HCI - External Antenna

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Laird


We simplify the rapid integration of wireless connectivity with innovative solutions, world-class manufacturing and unparalleled customer support. Our culture creates a fast moving, flexible work environment attracting employees who focus on providing accelerated profitable growth. Our vision is to be the technology behind every innovative and reliable wireless solution by 2025.


FIND OUT MORE

Overview

The BT86x series of UART HCI modules leverage the Cypress CYW20704 A2 chipset to provide exceptionally low power consumption with an outstanding range for OEMs needing both Classic Bluetooth and Bluetooth Low Energy support. The Bluetooth 5 core specification shortens your development time and provides enhanced throughput, security and privacy.

The BT860 modules are ideal when designers need both performance and minimum size. For maximum flexibility in integration, they support a host UART interface, I2S and PCM audio interfaces, GPIO, and Cypress' GCI coexistence(2-Wire). The modules provide excellent RF performance and identical footprint options for an integrated antenna or an external antenna via a trace pin.

These modules present a Bluetooth standard HCI interface with support for Linux / Android and Embedded Bluetooth software stacks for operating system-backed devices. Additionally, Laird has partnered with SEARAN for support of their ultra-small, flexible ‘dotstack’ platform for embedded Cortex M3 and M4 implementations.

Features

  • Bluetooth v5.0 – Dual Mode – BR / EDR / LE – Classic Bluetooth and Bluetooth Low Energy (BLE)

  • Compact Footprint – As small as 8.5 x 12.85 mm

  • Class 1 Output – up to 8 dBm

  • UART Host interface

  • GPIO, GCI, I2S and PCM

  • Industrial Operating Temp: -30° to +85°C

  • Bluetooth SIG approved – Hardware Controller Subsystem

  • International regulatory approvals – FCC, IC, CE, RCM, Korea, and Japan approvals

  • Broad BT Stack Support – Linux, Android, Embedded

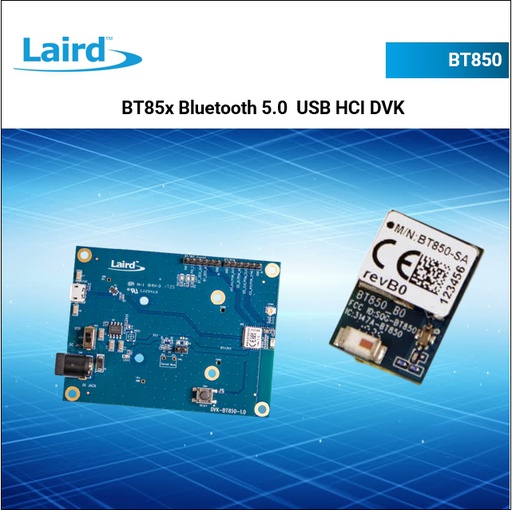

  • Fully-Featured Development Kit – Low-cost kit for prototyping/debugging/integration testing to speed development time

Applications

Specifications for BT860 Series Bluetooth 5.0 Dual Mode USB HCI Module

Antenna External Antenna or Integrate Antenna
This is a preview of the recently viewed products by the user.
Once the user has seen at least one product this snippet will be visible.

Recently viewed Products


The BT86x series of UART HCI modules leverage the Cypress CYW20704 A2 chipset to provide exceptionally low power consumption with an outstanding range for OEMs needing both Classic Bluetooth and Bluetooth Low Energy support. The Bluetooth 5 core specification shortens your development time and provides enhanced throughput, security and privacy.

The BT860 modules are ideal when designers need both performance and minimum size. For maximum flexibility in integration, they support a host UART interface, I2S and PCM audio interfaces, GPIO, and Cypress' GCI coexistence(2-Wire). The modules provide excellent RF performance and identical footprint options for an integrated antenna or an external antenna via a trace pin.

These modules present a Bluetooth standard HCI interface with support for Linux / Android and Embedded Bluetooth software stacks for operating system-backed devices. Additionally, Laird has partnered with SEARAN for support of their ultra-small, flexible ‘dotstack’ platform for embedded Cortex M3 and M4 implementations.


Features

  • Bluetooth v5.0 – Dual Mode – BR / EDR / LE – Classic Bluetooth and Bluetooth Low Energy (BLE)
  • Compact Footprint – As small as 8.5 x 12.85 mm
  • Class 1 Output – up to 8 dBm
  • UART Host interface
  • GPIO, GCI, I2S, and PCM
  • Industrial Operating Temp: -30° to +85°C
  • Bluetooth SIG approved – Hardware Controller Subsystem
  • International regulatory approvals – FCC, IC, CE, RCM, Korea, and Japan approvals
  • Broad BT Stack Support – Linux, Android, Embedded
  • Fully-Featured Development Kit – Low-cost kit for prototyping/debugging/integration testing to speed development time

  • Specifications

    Antenna Options
    Integrated or External via Trace Pad
    BLE Connections
    Yes
    Bluetooth Version
    5.0
    BT Class
    1
    Central Role
    Yes
    Certifications
    FCC, IC, CE, RMC, KC Giteki, SIG
    Chipset
    Cypress CYW20704 A2
    Dual Mode
    Yes
    Logical Interfaces
    UART, GPIO, I2S and PCM
    Operating Temp (°C)
    -30 °C - 85 °C
    Peripheral Role
    Yes
    Processor On Board
    No
    Receive Sensitivity
    -94dBm
    Stack On Board
    No
    Transmit Power
    8 dBM
    Wi-Fi Coexistence
    2-wire Cypress Global Coexistence Interface (GCI)
