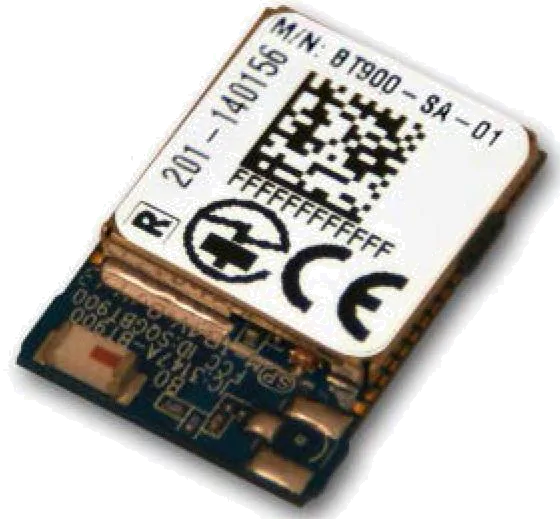

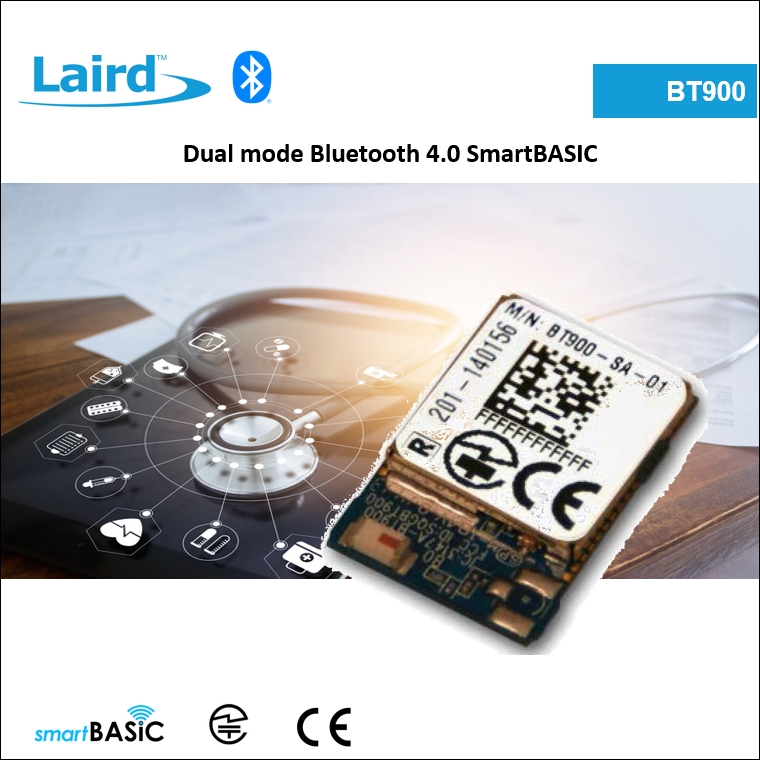

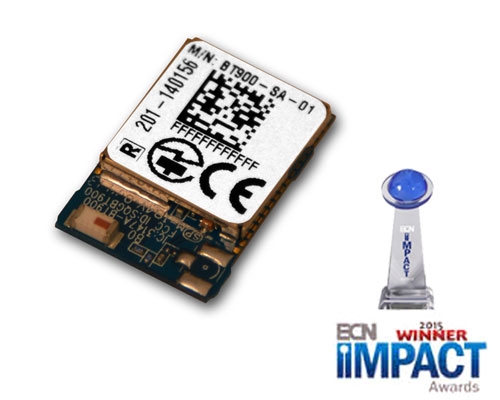

BT900 BTv4.0 dual Mode smartBASIC
SMALL. SMART. SIMPLE. Laird's BT900 modules reduce the engineering burden and design risk of integrating Bluetooth and Bluetooth Low Energy into any OEM device. The BT900s tiny form factor, optimized power schemes and smartBASIC language provide a secure, stable Bluetooth environment for any embedded design. Let Laird's innovative BT900 series and decades of expertise in Bluetooth module design speed your product to market. Available in BT900-SA and BT900-SC variants.
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Overview
SMALL. SMART. SIMPLE. Laird's BT900 modules reduce the engineering burden and design risk of integrating Bluetooth and Bluetooth Low Energy into any OEM device. The BT900s tiny form factor, optimized power schemes, and smartBASIC language provide a secure, stable Bluetooth environment for any embedded design. Let Laird's innovative BT900 series and decades of expertise in Bluetooth module design speed your product to market. Available in BT900-SA and BT900-SC variants.
Download the NEW UwTerminalX as well as the two companion applications: MultiDeviceLoader and TermNotify.
Features
Bluetooth v4.0 - Dual Mode (Classic Bluetooth and BLE)
External or Internal Antennas
smartBASIC programming language
Full Bluetooth EPL
Compact Footprint
Programmable TX power 8 dBm to -20 dBm
RX sensitivity: -90 dBm
Ultra-low power consumption
TX: 85 mA peak (at +8dBm)
Standby Doze: 2.8 mA (see Power Consumption Note 2)
Deep Sleep: 2.7 uA
UART, GPIO, ADC, PWM, FREQ output, TIMERS, I2C, and SPI interfaces
Fast Time to Market
FCC, EU, ISED, and Japan certified; other certs on request
No external components required
Applications
Specifications for BT900 BTv4.0 dual Mode smartBASIC
| MCU | |
|---|---|
| Interfaces | UART |
| Uncategorized | |
| Antenna | External Antenna or Integrate Antenna |
| BT Class | Class 1 |
| Other wireless | None |
| Operation Temperature | -40 °C ~ +85 °C |
| Stack on Board | Yes |
| BLE connection | 7 |
| Bluetooth mode | Dual mode 4.0 |
| Chipset | CSR8811 |
Once the user has seen at least one product this snippet will be visible.
Recently viewed Products
BT900 Series modules from Laird make it easy to add Classic BT and Bluetooth Low Energy (BLE) functionality to small, portable, power-conscious devices, including those powered by batteries. The fully approved, programmable modules feature Laird’s innovative, event-driven smartBASIC programming language, which significantly reduces OEM development risk and speeds time to market. Based on the Cambridge Silicon Radio (CSR) 8811 silicon and a low power Cortex M3 microcontroller, the BT900 modules provide exceptionally low power consumption with outstanding wireless range, all within a compact footprint of 19 mm x 12.5 mm. The modules incorporate all the hardware and firmware required to support the development of Dual Mode applications, including:
▪ Complete radio hardware
▪ UART, I2C, SPI, ADC, and GPIO interfaces
▪ Embedded BTv4.0 software stack
– Classic BT profile - SPP
– GATT Client and Peripheral modes
What makes the modules truly innovative is smartBASIC, an event-driven programming language that enables the standalone operation of the module. Laird has extended the implementation of smartBASIC from the popular BL6xx series of single mode BLE modules into the BT900 series. This allows developers the flexibility of utilizing the Core and BLE specific smartBASIC functions from the BL6xx series to create fully interchangeable BLE applications between these product ranges.
Without the need for an external processor, a simple smartBASIC application encapsulates the complete end-to-end process of reading, writing, and processing of sensor data and then using Classic Bluetooth or BLE to transfer it to/from any Bluetooth device. Ultimately smartBASIC accelerates initial development, creation of prototypes, and mass production by providing you with your own Bluetooth expert within the module.

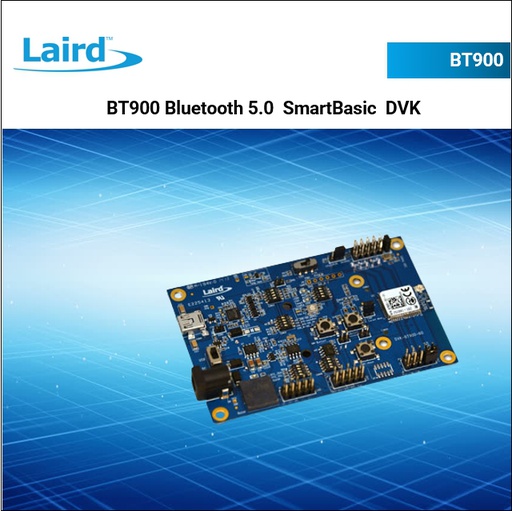

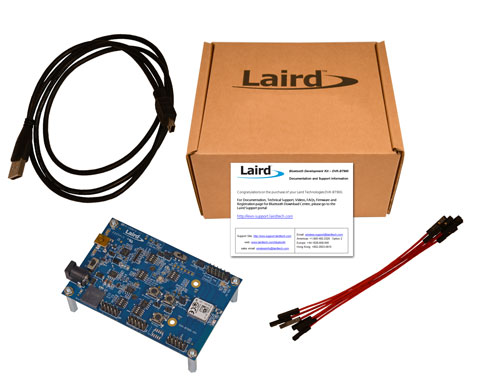

In addition to carrying FCC modular, ISED, EU, and MIC approvals, BT900 modules are fully qualified as a Bluetooth product, enabling designers to integrate the modules in devices without the need for further Bluetooth testing. A low-cost developer’s kit including simple software tools simplifies module integration and guarantees the fastest route to market.
Features
Bluetooth v4.0 - Dual Mode (Classic Bluetooth and BLE)
External or Internal Antennas
smartBASIC programming language
Full Bluetooth EPL
Compact Footprint
Programmable TX power 8 dBm to -20 dBm
RX sensitivity: -90 dBm
Ultra-low power consumption
TX: 85 mA peak (at +8dBm)
Standby Doze: 2.8 mA (see Power Consumption Note 2)
Deep Sleep: 2.7 uA
UART, GPIO, ADC, PWM, FREQ output, TIMERS, I2C, and SPI interfaces
Fast Time to Market
FCC, EU, ISED, and Japan certified; other certs on request
No external components required
ACCESSORIES

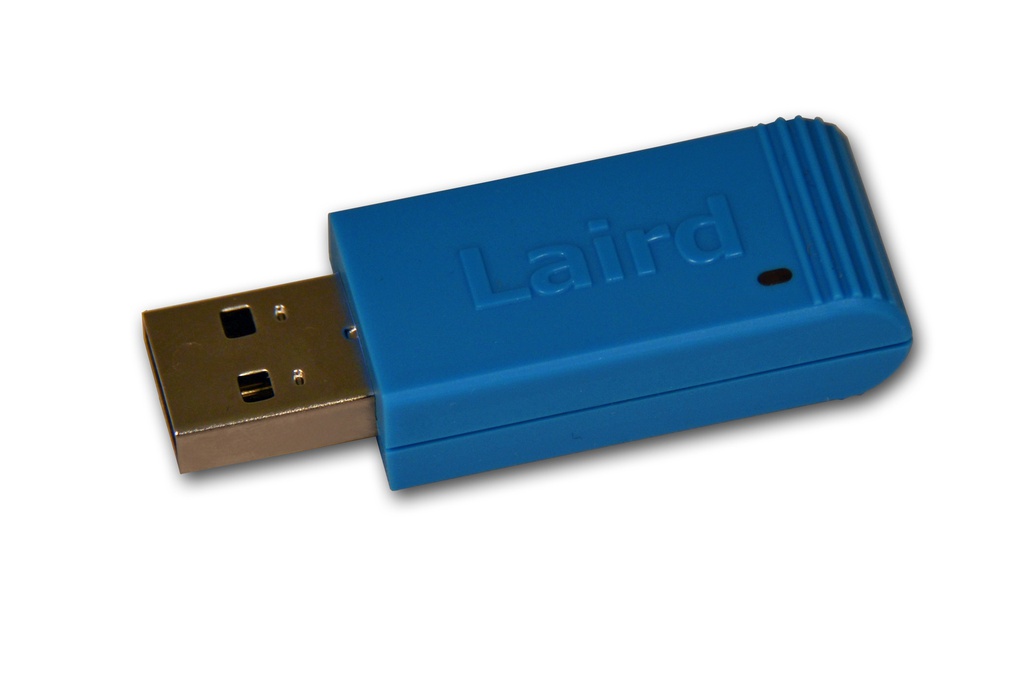

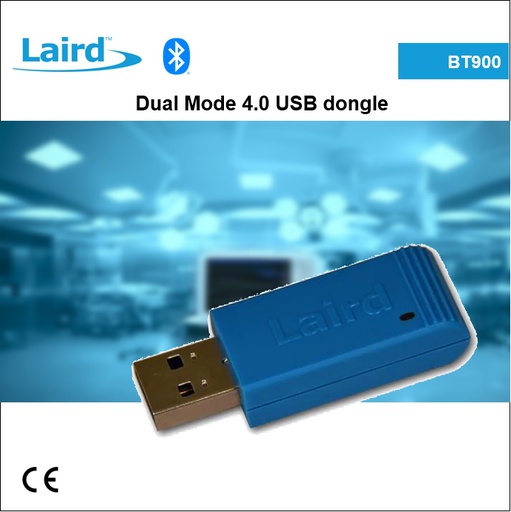

![[BT900-US] BT900 Dual Mode 4.0 USB dongle](/web/image/product.template/45433/image_512/%5BBT900-US%5D%20BT900%20Dual%20Mode%204.0%20USB%20dongle?unique=539c3a4)
