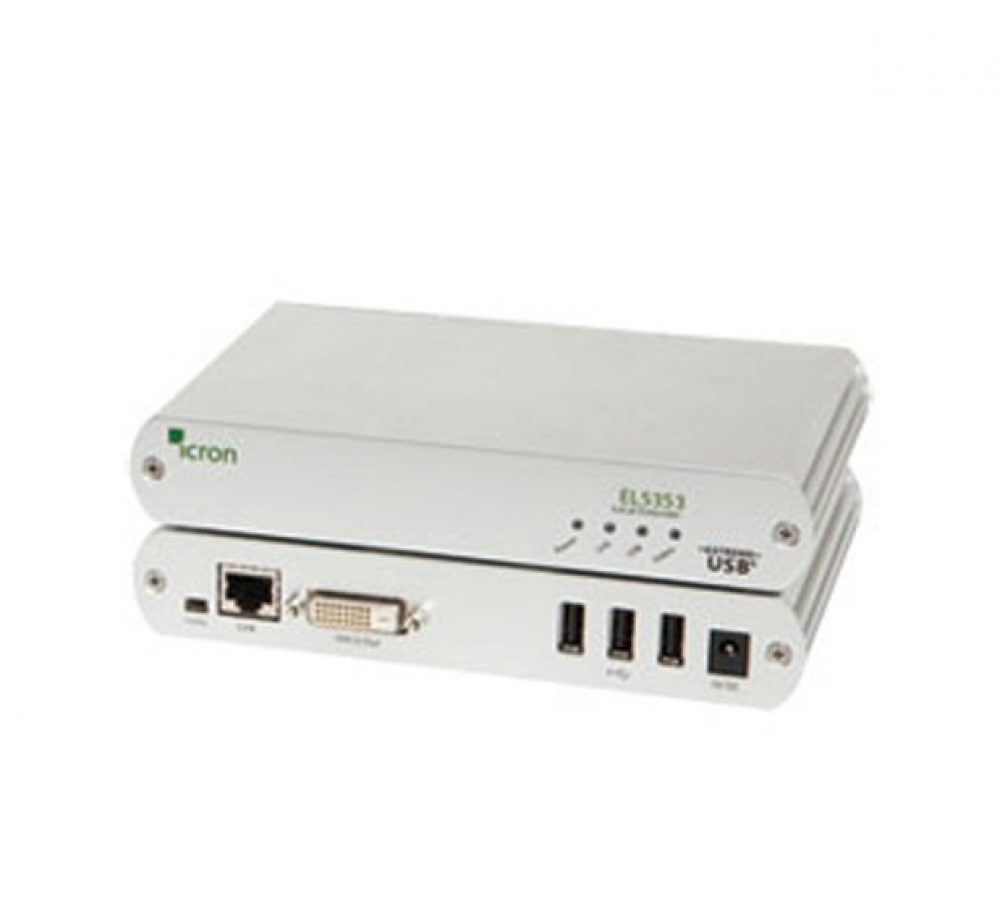

EL5353 KVM Extender DVI + USB 2.0 over 100m CAT 5e/6/7

The EL5353 comes with the following items in the box: Remote extender (REX) Local extender (LEX) 1 x USB 2.0 Type A to Type B cable 1 x DVI cable 2 x 100-240V power adapter 2 x Country specific power cord Quick start guide *Please be aware that the EL5353 does NOT come with a CAT5e cable.

  • Distance
  • Video Type
  • Maximum Resolution
  • USB 2.0 Throughput
  • Power Adapter
  • Transmission Media

SG$ 1,326.34

This combination does not exist.

Lead Time : 5.0 weeks

Add to Cart Get Best Price

The EL5353 comes with the following items in the box:

Remote extender (REX)
Local extender (LEX)
1 x USB 2.0 Type A to Type B cable
1 x DVI cable
2 x 100-240V power adapter
2 x Country specific power cord
Quick start guide
*Please be aware that the EL5353 does NOT come with a CAT5e cable.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Icron

Icron is a Maxim Integrated brand, as well as a leading global developer and manufacturer of high-performance USB and video extension solutions for commercial and industrial markets including Medical, Military, Industrial Automation, Machine Vision, ProAV, Education, and Mining/Exploration.


FIND OUT MORE

Overview

The EL5353 extends DVI uncompressed HD video, audio, and USB 2.0 up to 100 meters. This KVM extender can be used in applications for proAV, interactive digital signage, medical and industrial environments. The video resolution is 1920 x 1200 with 24-bit color depth and it can support USB 2.0 throughput up to 40 Mbps. The video quality remains high even at the full 100-meter distance.

Features

  • Point-to-point video and USB extension up to 100m over a single CAT 5e/6/7 cable
  • Full uncompressed 1920 x 1200 resolution HD video
  • 24-bit color depth
  • USB 2.0 throughput support up to 40 Mbps
  • ExtremeUSB® suite of features:
    • Transparent USB extension
    • True plug and play; no software drivers required
    • Works with all major operating systems:  Windows®, OS X®, and Linux®
  • Mounting Kit: allows units to be mounted to walls, desks or trays for 19″ racks.
  • 2-year warranty

Specifications for EL5353 KVM Extender DVI + USB 2.0 over 100m CAT 5e/6/7

USB Extender
Distance 100m
KVM extender
Video Type DVI Uncompressed
Maximum Resolution 1920 x 1200
USB 2.0 Throughput 40Mbps
Uncategorized
Power Adapter Australia or Europe or Japan or North America or Unit Kingdom
Transmission Media CAT 5e/6/7
This is a preview of the recently viewed products by the user.
Once the user has seen at least one product this snippet will be visible.

Recently viewed Products


Overview

The EL5353 extends DVI uncompressed HD video, audio, and USB 2.0 up to 100 meters. This KVM extender can be used in applications for proAV, interactive digital signage, medical and industrial environments. The video resolution is 1920 x 1200 with 24-bit color depth and it can support USB 2.0 throughput up to 40 Mbps. The video quality remains high even at the full 100-meter distance.

Features

Key features include:

  • Point-to-point video and USB extension up to 100m over a single CAT 5e/6/7 cable
  • Full uncompressed 1920 x 1200 resolution HD video
  • 24-bit color depth
  • USB 2.0 throughput support up to 40 Mbps
  • ExtremeUSB® suite of features:
    • Transparent USB extension
    • True plug and play; no software drivers required
    • Works with all major operating systems:  Windows®, OS X®, and Linux®
  • Mounting Kit: allows units to be mounted to walls, desks or trays for 19″ racks.
  • 2-year warranty

Specifications

RANGE

  • Direct Connect: Up to 100m (330 ft) over a single CAT 5e/6/7 cable

VIDEO

  • Resolution: High Definition 1920 x 1200
  • Color Depth: 24-bit color depth
  • Latency: Less than 1ms

SPEEDS

  • USB 2.0: Up to 40 Mbps
  • USB 1.1: Up to 12 Mbps

LEX

  • Video Connector: 1 x DVI
  • USB Connector: 1 x USB Type B Receptacle
  • Link Connector: 1 x RJ45
  • Dimensions: 112mm x 175mm x 30mm (4.4″ x 6.9″ x 1.2″)
  • Enclosure Material: Silver Anodized Aluminum
  • Power Supply: 100-240V AC input, 5V DC output

REX

  • Video Connector: 1 x DVI
  • USB Connectors: 3 x USB Type A Receptacles
  • Link Connector: 1 x RJ45
  • Dimensions: 112mm x 175mm x 30mm (4.4″ x 6.9″ x 1.2″)
  • Enclosure Material: Silver Anodized Aluminum
  • Available Current: 500mA for each USB port
  • Power Supply: 100-240V AC input, 5V DC output

ENVIRONMENTAL

  • Operating Temperature: 0°C ~ 40°C (32°F to 104°F)
  • Operating Humidity: +20% ~ 80% (non condensing)

COMPLIANCE

  • EMC: FCC (Class A), CE (Class A), ICES-003
  • Environmental: RoHS2 (CE)

SUPPORT

  • Warranty: 2-year

Applications

Applications include professional audio and visual, security, medical, interactive digital signage, and industrial environments where the computer must be remotely accessible.
