EL5363 KVM Extender HDMI + USB 2.0 over 100m CAT 5e/6/7

The EL5363 comes with the following items in the box: Remote extender (REX) Local extender (LEX) 1 x USB 2.0 Type A to Type B cable 1 x HDMI cable 2 x 100-240V power adapter 2 x Country specific power cord Quick start guide *Please be aware that the EL5363 does NOT come with a CAT5e cable.

  • Distance
  • Video Type
  • Maximum Resolution
  • USB 2.0 Throughput
  • Power Adapter
  • Transmission Media

SG$ 1,341.08

This combination does not exist.

Lead Time : 5.0 weeks

Add to Cart Get Best Price

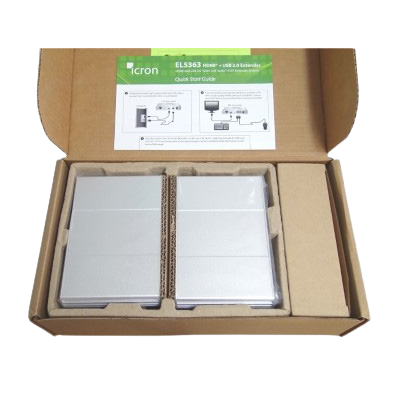

The EL5363 comes with the following items in the box:

Remote extender (REX)
Local extender (LEX)
1 x USB 2.0 Type A to Type B cable
1 x HDMI cable
2 x 100-240V power adapter
2 x Country specific power cord
Quick start guide
*Please be aware that the EL5363 does NOT come with a CAT5e cable.


Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Icron

Icron is a Maxim Integrated brand, as well as a leading global developer and manufacturer of high-performance USB and video extension solutions for commercial and industrial markets including Medical, Military, Industrial Automation, Machine Vision, ProAV, Education, and Mining/Exploration.



FIND OUT MORE

Overview

Overview

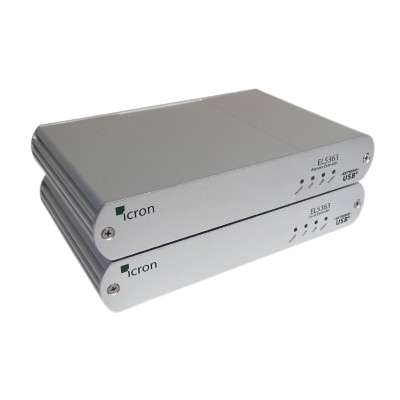

The EL5363 KVM Extender provides HDMI uncompressed HD video, and USB 2.0 up to 100 meters over a single CAT 5e/6/7 cable.  This extender supports HDMI video features such as 1080p, 4Kp30, Deep Color, and CEC/HDCP pass-through. This KVM extender can be used in applications for proAV, interactive digital signage, security, medical, and industrial. There is no video degradation even at the full 100-meter distance.

Features

  • Long Distance: Video and USB over a single solid core shielded CAT 5e/6/7 cable at distances up to 100m (330ft)
  • Full uncompressed 1080p or 1920 x 1200 resolution HD video
  • 3D
  • 4Kp30
  • Deep Color
  • x.v. Color
  • Lip Sync Pass-through
  • CEC Pass-through
  • HDCP Pass-through
  • USB 2.0: all device types supporting up to 40 Mbps. Recommended with keyboard, mouse, flash drive, printer, speakers, microphones, USB 1.1 web camera, and other USB devices which require moderate amounts of bandwidth.
  • ExtremeUSB® suite of features:
    • Transparent USB extension
    • True plug and play; no software drivers required
    • Works with all major operating systems:  Windows®, OS X®, and Linux®
  • Mounting Kit: allows units to be mounted to walls, desks or trays for 19″ racks.
  • 2-year warranty

Specifications for EL5363 KVM Extender HDMI + USB 2.0 over 100m CAT 5e/6/7

USB Extender
Distance 100m
KVM extender
Video Type HDMI Uncompressed
Maximum Resolution 4K, 1080p or 1920 x 1200
USB 2.0 Throughput 40Mbps
Uncategorized
Power Adapter Australia or Europe or Japan or North America or Unit Kingdom
Transmission Media CAT 5e/6/7
This is a preview of the recently viewed products by the user.
Once the user has seen at least one product this snippet will be visible.

Recently viewed Products


Overview

The EL5363 KVM Extender provides HDMI uncompressed HD video, and USB 2.0 up to 100 meters over a single CAT 5e/6/7 cable.  This extender supports HDMI video features such as 1080p, 4Kp30, Deep Color, and CEC/HDCP pass-through. This KVM extender can be used in applications for proAV, interactive digital signage, security, medical, and industrial. There is no video degradation even at the full 100-meter distance.

Features

  • Long Distance: Video and USB over a single solid core shielded CAT 5e/6/7 cable at distances up to 100m (330ft)
  • Full uncompressed 1080p or 1920 x 1200 resolution HD video
  • 3D
  • 4Kp30
  • Deep Color
  • x.v. Color
  • Lip Sync Pass-through
  • CEC Pass-through
  • HDCP Pass-through
  • USB 2.0: all device types supporting up to 40 Mbps. Recommended with keyboard, mouse, flash drive, printer, speakers, microphones, USB 1.1 web camera, and other USB devices which require moderate amounts of bandwidth.
  • ExtremeUSB® suite of features:
    • Transparent USB extension
    • True plug and play; no software drivers required
    • Works with all major operating systems:  Windows®, OS X®, and Linux®
  • Mounting Kit: allows units to be mounted to walls, desks or trays for 19″ racks.
  • 2-year warranty

Specifications

RANGE

  • Direct Connect: Up to 100m (330 ft) over Cat 5e (or better)

VIDEO

  • Resolution: High Definition 1080p, 1920 x 1200, 4K
  • Color: 36-bit, Deep Color, and x.v. Color
  • Depth: 2D and 3D
  • Latency: Less than 1ms

SPEEDS

  • USB 2.0: Up to 40Mbps
  • USB 1.1: Up to 12Mbps

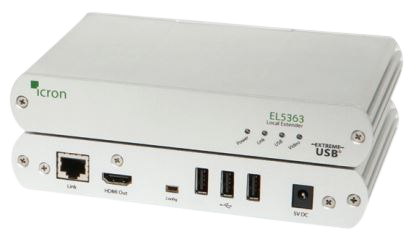

LEX

  • Video Connector: 1 x HDMI
  • USB Connector: 1 x USB Type B Receptacle
  • Link Connector: 1 x RJ45
  • Dimensions: 112mm x 175mm x 30mm (4.4″ x 6.9″ x 1.2″)
  • Enclosure Material: Silver Anodized Aluminum
  • Power Supply: 100-240V AC input, 5V DC output

REX

  • Video Connector: 1 x HDMI
  • USB Connectors: 3 x USB Type A Receptacles
  • Link Connector: 1 x RJ45
  • Dimensions: 112mm x 175mm x 30mm (4.4″ x 6.9″ x 1.2″)
  • Enclosure Material: Silver Anodized Aluminum
  • Available Current: 500mA for each USB port
  • Power Supply: 100-240V AC input, 5V DC output

ENVIRONMENTAL

  • Operating Temperature: 0°C to 40°C (32°F to 104°F)
  • Operating Humidity: 20% to 80% relative humidity, non-condensing

COMPLIANCE

  • EMC: FCC (Class A), CE (Class A), ICES-003
  • Environmental: RoHS2 (CE)

SUPPORT

  • Warranty: 2 years

Applications

Applications include medical imaging, high-end home theater, proAV, and interactive digital signage.
