Manufacturing Company :

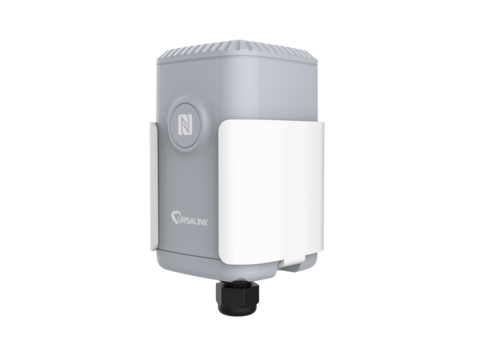

EM500-SMT Soil measurement

19000 mAh Li-SOCL2 battery NFC enabled IP66 rated Cable Length: 5m

Configuration Interface
Cable length
Sensor
Waterproof
Frequency band
Power type
Sensor Measurement Range
Battery Capacity
Payload Format

SG$ 668.94

This combination does not exist.

Lead Time : 3.0 weeks

Add to Cart Get Best Price

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Milesight

At Milesight IoT, we are passionate about the connectivity of “things” to the cloud. We leverage the value of the top trending technologies that transform the world we live in and are committed to our partners who share the same passion.

FIND OUT MORE

Overview

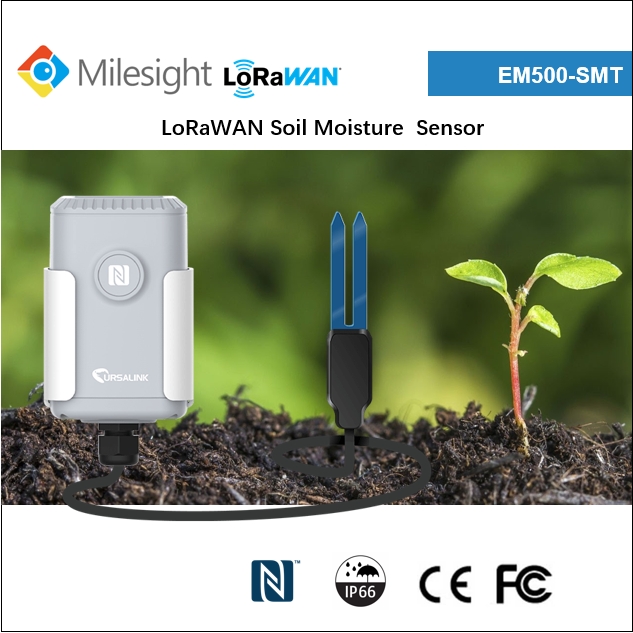

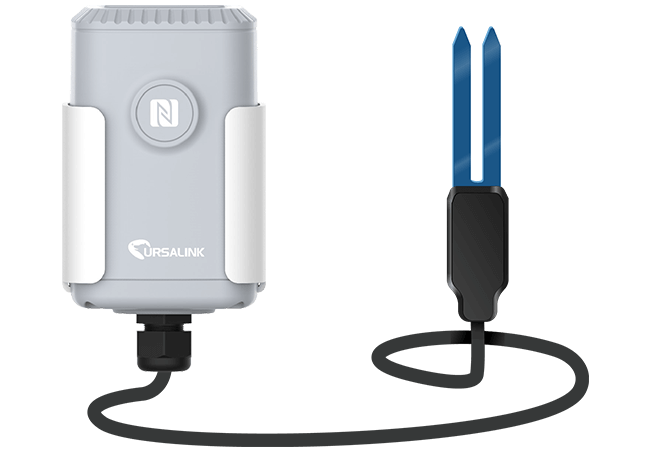

EM500-SMT provides an external probe for receiving accurate and instantaneous information on soil moisture content. You can choose to upgrade the sensor and also measure soil temperature and salinity with the EM500-SMTC.

Features

Research grade accuracy.
Easy installtion into undesturbed soil.
Rapid monitoring of soil conditions.
Built-in 19000 mAh high-capacity battery can be used for 10-years
IP66 rated protective case (IP67 on request)
LoRaWAN wireless transmission
Configure the device via NFC
Monitor your data in the office or on-the-go with Milesight IoT Cloud.

Specifications for EM500-SMT Soil measurement

LoRaWAN
Configuration Interface	NFC
Uncategorized
Sensor	Moisture or Moisture+Temp+salinity
Frequency band	AS923 or AU915 or KR920 or US915
Cable length	2m
Waterproof	IP66
Power type	Battery
Sensor Measurement Range	0% ~ 100% RH
Battery Capacity	19000mAh
Payload Format	Caynne

EM500 Series User Guide
Release date: December 10, 2020
Download
EM500-SMT Datasheet
Release date: December 10, 2020
Download
EM500-SMTC Datasheet
Release date: December 10, 2020
Download

LoRaWAN®	Frequency	AU915/AS923
	Tx Power	20dBm
	Sensitivity	-147dBm @300bps
	Mode	OTAA/ABP Class A
Measurement	Range	0% to 100%
Measurement	Accuracy	±2%
Physical Characteristics	Probe Length	3m
	Power Supply	19000 mAh Li-SOCL2
	Operating Temperature	-30°C to +70°C
	Ingress Protection	IP66 (IP67 if required)
	Dimension	105.4 × 71 × 69.5 mm (Sensor and cable are not included)
	Mounting	DIN rail, wall, pole mounting

Model		Moisture	Temperature	Electrical Conductivity
EM500-SMT 5m cable	Range	0 – 100% RH	n/a	n/a
	Accuracy	±2%RH
	Resolution	0.25%RH
EM500-SMTC 2m cable	Range	0 – 100% RH	– 40 to 80°C	0 – 20000 μS/cm
	Accuracy	2% RH (0-50%) 3% RH (50-100%)	±0.5°C	±3% (0 – 10000 μS/cm) ±5% (10000 – 20000 μS/cm)
	Resolution	0.03% RH (0-50%) 1% RH (50-100%)	0.1°C	10μS/cm (0 – 10000 μS/cm) 50μS/cm (10000 – 20000 mS/cm)
