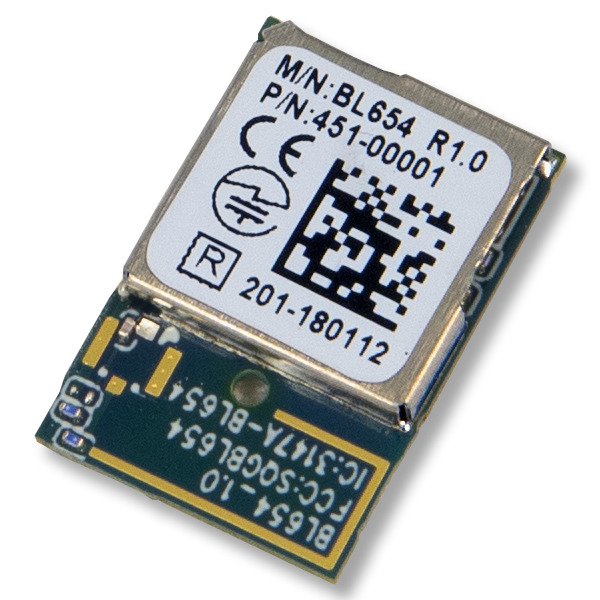

Laird BL654 Bluetooth Module with NFC
The BL654 series brings out all nRF52840 hardware features and capabilities including USB access, up to 5.5V supply considerations, and 802.15.4 (Thread) implementation.
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
BL654 Bluetooth 5.1 module
A complete multi-protocol embedded wireless offering with exceptional processing capability, all at a micropower budget. Powered by Nordic’s nRF52840 silicon, the small form factor BL654 modules, DVKs and USB Dongle provide for a secure, robust BLE and Cortex -M4F CPU for any OEM’s product design. The BL654 provides you with maximum development flexibility with programming options for the Nordic SDK, a simple, intuitive AT Command Set, as well as Laird’s own smartBASIC environment.
Features
Bluetooth 5.1 & Thread (802.15.4) - Bluetooth Low Energy (BLE) plus NFC, featuring Nordic nRF52840
Widest Range of Configurable Interfaces - UART, I2C, SPI, ADC, GPIO, PWM, FREQ, USB, and NFC
2Mbps & LE Long Range - Support for 2Mbps, 1Mbps, & 125kps coded
Hostless Operation with Powerful Core - Internal MCU reduces BOM and Cortex-M4F (1Mbit Flash, 256k RAM)
Application Design Choice - Leverage Laird’s smartBASIC, simple AT Command Set or utilize Nordic SDK directly
USB Dongle Option - Packaged USB Adapter – bring full Bluetooth 5.1 connectivity to ANY device with a virtual COM port capability
Applications
Specifications for Laird BL654 Bluetooth Module with NFC
| MCU | |
|---|---|
| Interfaces | UART, I2C, SPI, ADC, PDM, GPIO, USB |
| Uncategorized | |

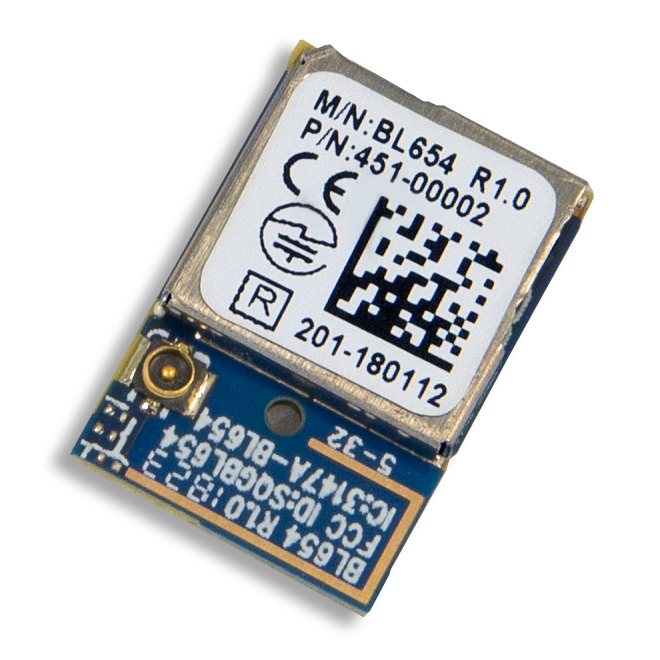

| Antenna | External Antenna or Integrate Antenna |
| BT Class | Class 1 |
| Standard Compliance | RoHS REACH |
| Dual Mode | No |
| Other wireless | NFC |
| MCU | Cortex M4F |
| Operation Temperature | -40 °C ~ +85 °C |
| Stack on Board | Yes |
| Certification | FCC CE IC RCM SIG |
| Transmit Power | 8dBm |
Once the user has seen at least one product this snippet will be visible.
Recently viewed Products
Datasheet - BL654
Product Brief - BL654 Series
Application Notes
Building on Laird’s expertise with Nordic from the BL600 and BL652 series comes the most powerful yet -the BL654 series! It provides OEMs with maximum design flexibility and performance. A complete multi-protocol embedded wireless offering with exceptional processing capability, all at a micropower budget. Powered by Nordic’s nRF52840 silicon, the small form factor BL654 modules, DVKs and USB Dongle provide for a secure, robust BLE and Cortex -M4F CPU for any OEM’s product design. The BL654 provides you with maximum development flexibility with programming options for the Nordic SDK, a simple, intuitive AT Command Set, as well as Laird’s own smartBASIC environment.
The BL654 series brings out all nRF52840 hardware features and capabilities including USB access, up to 5.5V supply considerations, and 802.15.4 (Thread) implementation. Complete regulatory certifications enable faster time to market and reduced development risk completes Laird’s simplification of your next Bluetooth design!
Secure, Efficient, and Optimized
Bluetooth 5.1 & Thread (802.15.4) - Bluetooth Low Energy (BLE) plus NFC, featuring Nordic nRF52840
Widest Range of Configurable Interfaces - UART, I2C, SPI, ADC, GPIO, PWM, FREQ, USB, and NFC
2Mbps & LE Long Range - Support for 2Mbps, 1Mbps, & 125kps coded
Hostless Operation with Powerful Core - Internal MCU reduces BOM and Cortex-M4F (1Mbit Flash, 256k RAM)
Application Design Choice - Leverage Laird’s smartBASIC, simple AT Command Set or utilize Nordic SDK directly
USB Dongle Option - Packaged USB Adapter – bring full Bluetooth 5.1 connectivity to ANY device with a virtual COM port capability
