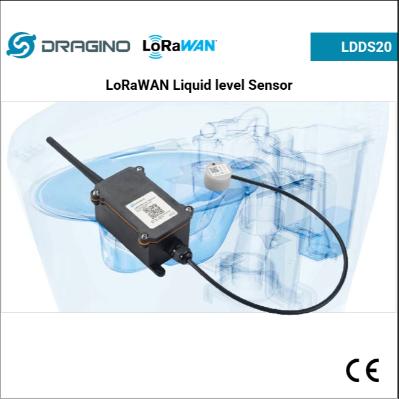

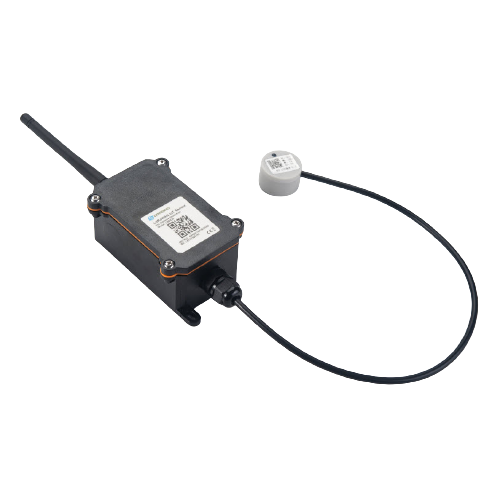

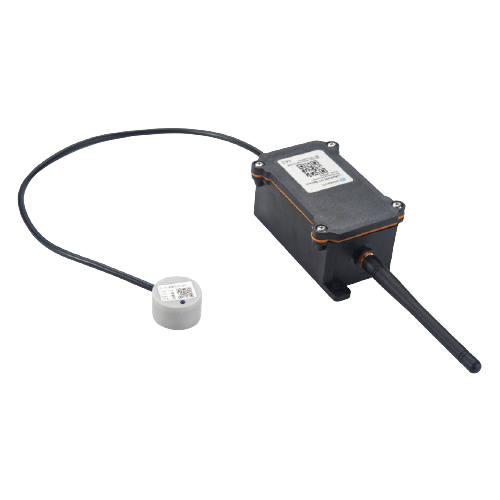

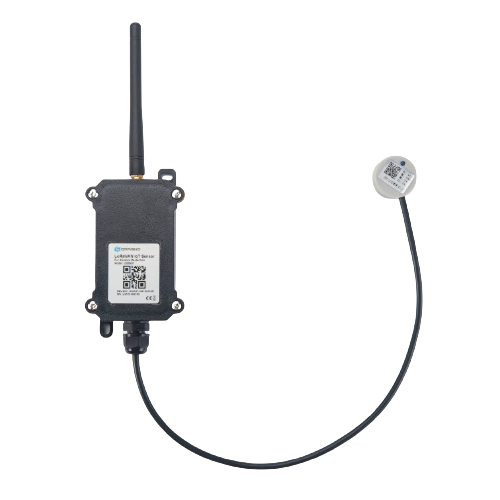

LoRaWAN Liquid Level Sensor

The Dragino LDDS20 is a LoRaWAN Ultrasonic liquid level sensor for Internet of Things solution. It uses non contact method to measure the height of liquid in a container without opening the container, and send the value via LoRaWAN network to IoT Server

  • LoRa transceiver
  • Cable length
  • Frequency band
  • OpenCPU
  • Sensor
  • Waterproof
  • Class
  • Power type
  • LoRaWAN version
  • Sensor Measurement Range
  • Battery Capacity

SG$ 95.20

This combination does not exist.

Lead Time : 3.0 weeks

Add to Cart Get Best Price

The Dragino LDDS20 is a LoRaWAN Ultrasonic liquid level sensor for Internet of Things solution. It uses non contact method to measure the height of liquid in a container without opening the container, and send the value via LoRaWAN network to IoT Server

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Dragino


We focus on the Internet of Things industry and keep evaluating new technology on improving user experience in IoT solution. We provide OEM/ODM service to worldwide clients. We have a set of offshore products and development kits to help clients to test, design and produce innovation IoT products in the shorter time, lower cost and lowest risk. Dragino dedicates to promote Open Source IoT solution. Our Open Source products are sold world widely and gain good name in the Open Source Internet of Things filed.


More Detail

Overview

The Dragino LDDS20 is a LoRaWAN Ultrasonic liquid level sensor for Internet of Things solution. It uses non contact method to measure the height of liquid in a container without opening the container, and send the value via LoRaWAN network to IoT Server

The LDDS20 sensor is installed directly below the container to detect the height of the liquid level. User doesn’t need to open a hole on the container to be tested. The non contact measurement makes the measurement safety, easier and possible for some strict situation.

 LDDS20 uses ultrasonic sensing technology for distance measurement. LDDS20 is of high accuracy to measure various liquid such as: toxic substances, strong acids, strong alkalis and various pure liquids in high-temperature and high-pressure airtight containers.

The LoRa wireless technology used in LDDS20 allows device to send data and reach extremely long ranges at low data-rates. It provides ultra-long range spread spectrum communication and high interference immunity whilst minimizing current consumption.



Features

  • LoRaWAN 1.0.3 Class A

  • Ultra low power consumption

  • Liquid Level Measurement by Ultrasonic technology

  • Measure through container, No need to contact Liquid.

  • Valid level range 20mm - 2000mm

  • Accuracy: ±(5mm+S*0.5%) (S: Measure Value)

  • Cable Length : 25cm

  • Bands: CN470/EU433/KR920/US915/EU868/AS923/AU915/IN865

  • AT Commands to change parameters

  • Uplink on periodically

  • Downlink to change configure

  • IP66 Waterproof Enclosure

  • 8500mAh Battery for long term use

Applications

Specifications for LoRaWAN Liquid Level Sensor

LoRaWAN
LoRa transceiver SX1262
Uncategorized
Cable length 0.25m
Frequency band AS923
OpenCPU No
Sensor Ultrasonic
Waterproof IP67
Class Class A
Power type Built-in Li-SOCL2 battery
LoRaWAN version 1.0.3
Sensor Measurement Range 0.28~7.5m
Battery Capacity 8500mAh
This is a preview of the recently viewed products by the user.
Once the user has seen at least one product this snippet will be visible.

Recently viewed Products


The Dragino LDDS20 is a LoRaWAN Ultrasonic liquid level sensor for Internet of Things solution. It uses non contact method to measure the height of liquid in a container without opening the container, and send the value via LoRaWAN network to IoT Server

The LDDS20 sensor is installed directly below the container to detect the height of the liquid level. User doesn’t need to open a hole on the container to be tested. The non contact measurement makes the measurement safety, easier and possible for some strict situation.

 LDDS20 uses ultrasonic sensing technology for distance measurement. LDDS20 is of high accuracy to measure various liquid such as: toxic substances, strong acids, strong alkalis and various pure liquids in high-temperature and high-pressure airtight containers.

The LoRa wireless technology used in LDDS20 allows device to send data and reach extremely long ranges at low data-rates. It provides ultra-long range spread spectrum communication and high interference immunity whilst minimizing current consumption.

LDDS20 is powered by 8500mA Li-SOCI2 battery; It is designed for long term use up to 10 years*.

Each LDDS20 pre-loads with a set of unique keys for LoRaWAN registrations, register these keys to local LoRaWAN server and it will auto connect if there is network coverage, after power on.

Features:

  • LoRaWAN 1.0.3 Class A
  • Ultra low power consumption
  • Liquid Level Measurement by Ultrasonic technology
  • Measure through container, No need to contact Liquid.
  • Valid level range 20mm - 2000mm
  • Accuracy: ±(5mm+S*0.5%) (S: Measure Value)
  • Cable Length : 25cm
  • Bands: CN470/EU433/KR920/US915/EU868/AS923/AU915/IN865
  • AT Commands to change parameters
  • Uplink on periodically
  • Downlink to change configure
  • IP66 Waterproof Enclosure
  • 8500mAh Battery for long term use



Applications:

  • Smart liquid control solution
  • Smart liquefied gas solution
