Manufacturing Company :

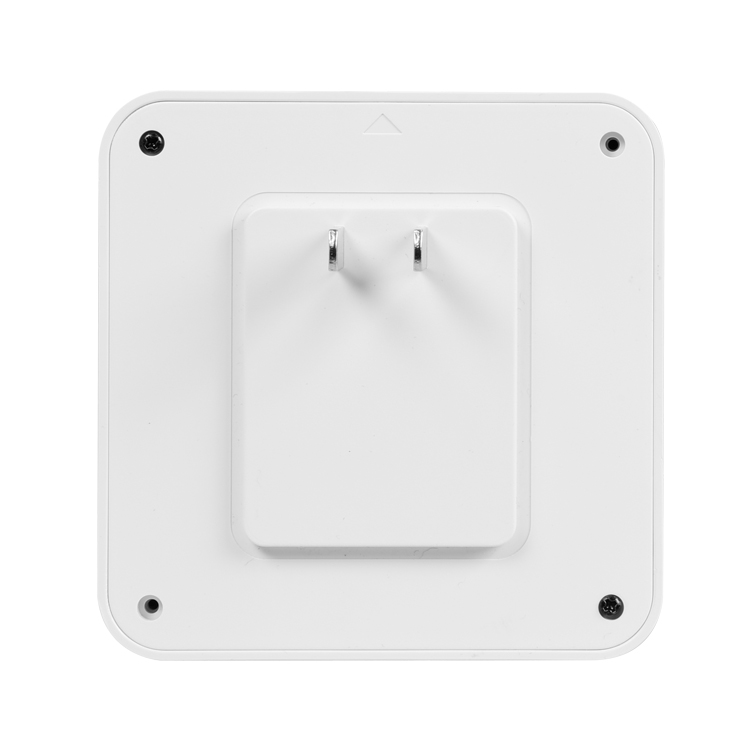

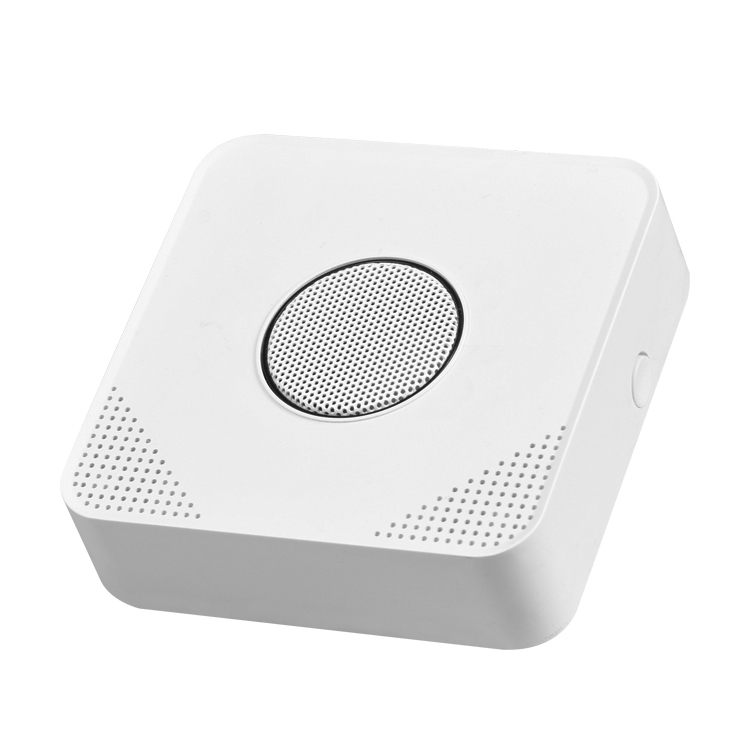

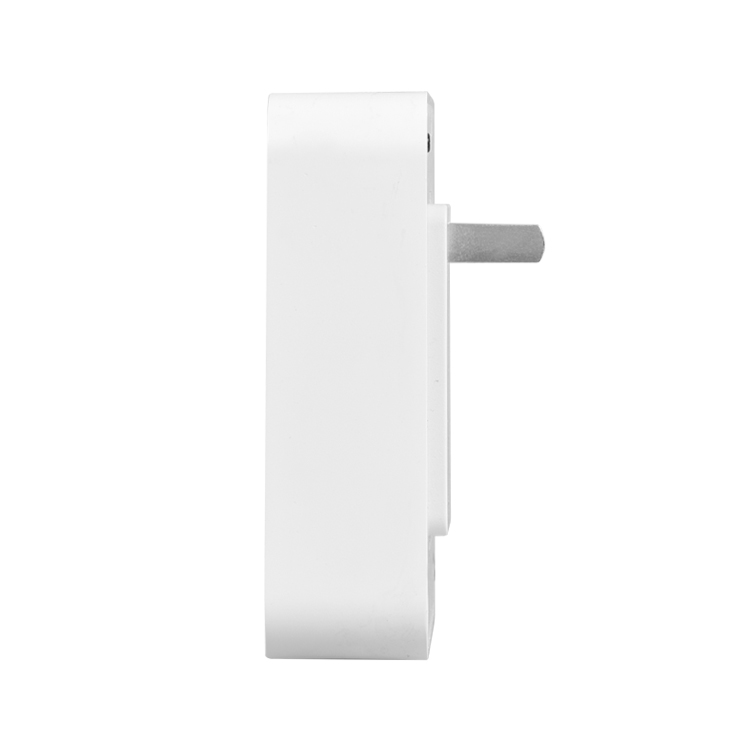

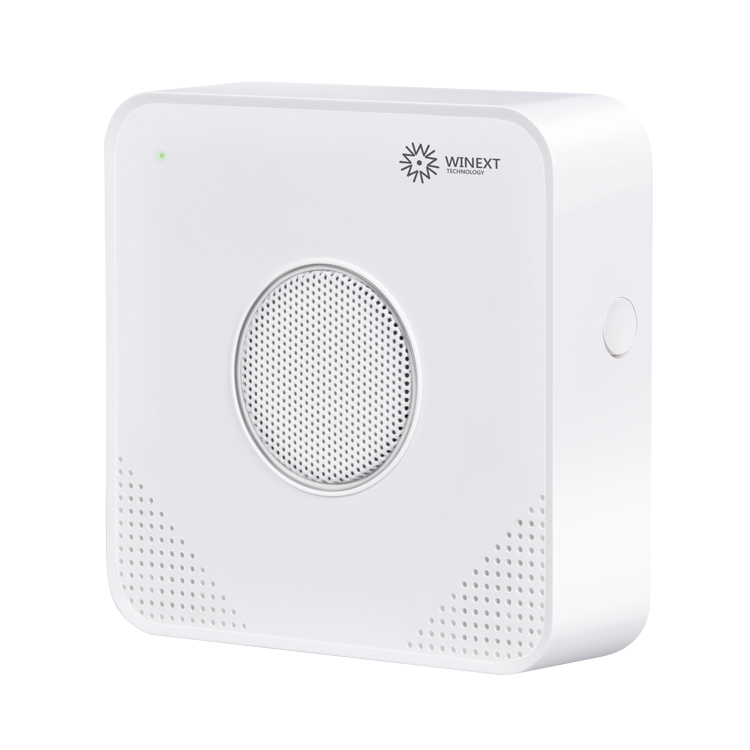

LoRaWAN Gas Monitor AN-302

AN-302 is a wireless gas leakage detector. It has a built-in gas detection sensor with low power consumption and high detection accuracy. When there is gas leakage, and the gas density is up to a set threshold value, the device will report the alarm to the cloud monitoring platform through a LoRa gateway. The cloud monitoring platform processes and analyzes the data, and interacts with the application platform to achieve real-time monitoring of combustible gas leakage status.

  • Configuration Interface
  • Cable length
  • Sensor
  • Waterproof
  • Class
  • Frequency band
  • Power type
  • Sensor Measurement Range
  • Battery Capacity

SG$ 95.82

This combination does not exist.

Lead Time : 3.0 weeks

Add to Cart Get Best Price

AN-302 is a wireless gas leakage detector. It has a built-in gas detection sensor with low power consumption and high detection accuracy. When there is gas leakage, and the gas density is up to a set threshold value, the device will report the alarm to the cloud monitoring platform through a LoRa gateway. The cloud monitoring platform processes and analyzes the data, and interacts with the application platform to achieve real-time monitoring of combustible gas leakage status.


Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Winext

Winext Technology is an AIoT "end-to-end" one-stop solution provider. Focusing on R&D for IoT, we offer whole stack IoT products and system solutions. Our business covers smart city, smart community, smart firefighting, smart elevator, smart street lighting, smart parking and so on..


FIND OUT MORE

Overview

AN-302 is a wireless gas leakage detector. It has a built-in gas detection sensor with low power consumption and high detection accuracy. When there is gas leakage, and the gas density is up to a set threshold value, the device will report the alarm to the cloud monitoring platform through a LoRa gateway. The cloud monitoring platform processes and analyzes the data, and interacts with the application platform to achieve real-time monitoring of combustible gas leakage status.

Features

  • Support LoRaWANTM Class A

  • Detecting methane gas leakage within 2 meters

  • Support AC220V

  • Built-in hardware watchdog circuit to ensure the long-term stable performance

  • Plastic shell with flame-retardant material

  • Working temperature range of -10℃~ +55℃

  • Strong anti-interference capability

  • Easy to install

  • Plug and play

Specifications for LoRaWAN Gas Monitor AN-302

LoRaWAN
Configuration Interface UART
Uncategorized
Frequency band AS923 or AU915 or KR920 or US915
Cable length NA
Sensor Methane Sensor
Waterproof IP30
Class Class A
Power type AC220V
Sensor Measurement Range 7% LEL
Battery Capacity NA
This is a preview of the recently viewed products by the user.
Once the user has seen at least one product this snippet will be visible.

Recently viewed Products


LoRaWAN gas monitor AN-302 for smart restaurant, smart home:



AN-302 is a wireless gas leakage detector. It has a built-in gas detection sensor with low power consumption and high detection accuracy. When there is gas leakage, and the gas density is up to a set threshold value, the device will report the alarm to the cloud monitoring platform through a LoRa gateway. The cloud monitoring platform processes and analyzes the data, and interacts with the application platform to achieve real-time monitoring of combustible gas leakage status.




          Application:

          It is mainly used in the family kitchen, school canteen, factory canteen, hotel restaurant and other application scenarios.



      Product Features:



Support LoRaWANTM Class A

Detecting methane gas leakage within 2 meters

Support AC220V

Built-in hardware watchdog circuit to ensure the long-term stable performance

Plastic shell with flame-retardant material

Working temperature range of -10℃~ +55℃

Strong anti-interference capability

Easy to install

Plug and play


Product parameters:



Item

Description

Performance

Hardware

Detecting Gas

Methane

Alarm Threshold Value

7% LEL

Alarm Volume

75dB(at 1 meter)

Wireless Parameter

Tx Rate

300bps-5.4kbps

Frequency

CN470-510MHz

EU863-870MHz

US902-928MHz

AS923MHz

AU915-928MHz

KR920-923MHz

Max Tx Power

19dBm

Rx sensibility

-141dBm(SF=12)

Working Ambient

Temperature

-10℃-+50℃

Humidity

20%-90% (no condensing)

Electrical Parameter

Power supply

AC220V

Sleep current

≤20uA

Tx current

≤130mA

Physical Parameter

Dimension

86mm*86mm*26mm(plug excluded)
