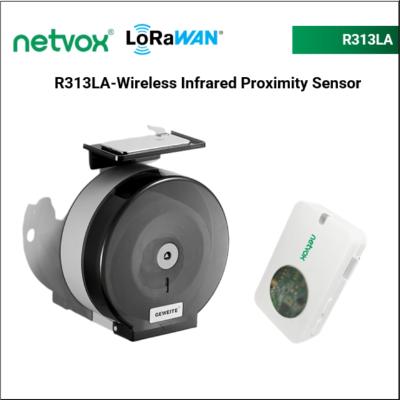

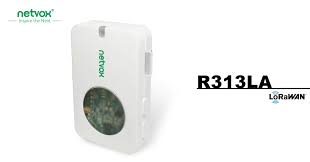

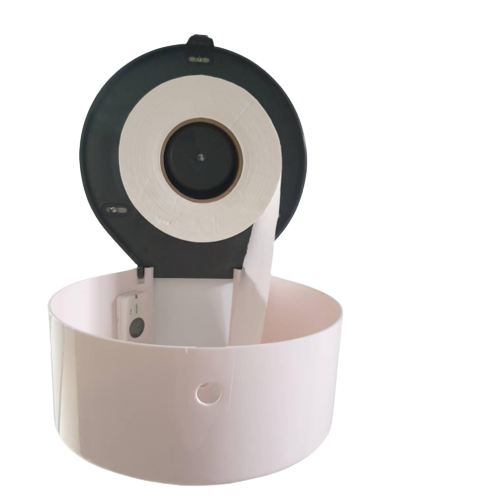

R313LA-Wireless Infrared Proximity Sensor

R313LA is able to detect the existence of the object nearby. It has an infrared proximity sensor that can detect if there is object existing within it detection range and transmits the detected data to Gateway for display via a wireless network; it uses the SX1276 wireless communication module.

  • Configuration Interface
  • Waterproof
  • Class
  • Frequency band
  • Power type
  • Sleep Power consumption
  • Rx Sensitivity
  • Transmit Power
  • Chipset
  • Sensors

SG$ 113.09

This combination does not exist.

Lead Time : 6.0 weeks

Add to Cart Get Best Price

R313LA is able to detect the existence of the object nearby. It has an infrared proximity sensor that can detect if there is object existing within it detection range and transmits the detected data to Gateway for display via a wireless network; it uses the SX1276 wireless communication module.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Netvox

Netvox pioneers in the development and manufacture of Wireless Sensor Network applications based on LoRaWAN and Zigbee Pro Home Automation profile open standard.  Since 2005, we have developed over 200 LoRaWAN devices and 250 Zigbee devices that are based on worldwide standards to work with existing systems.

There are more than 70 items in our LoRaWAN magnetic-mounted R718 series that comes with an IP 65/67 housing, and most of them are battery powered with long battery life.  For example, the battery life of our Temperature and Humidity Sensor for Low Temperature Environment R718A is more than 5 years based on 25℃, 15-minute report interval, 20dBm Tx power and SF=10.


FIND OUT MORE

Overview

R313LA is able to detect the existence of the object nearby. It has an infrared proximity sensor that can detect if there is object existing within it detection range and transmits the detected data to Gateway for display via a wireless network; it uses the SX1276 wireless communication module.

    Features

    • Applying SX1276 wireless communication module
    • 2 sections of 3.0V CR2450 coin cell batteries in parallel
    • Infrared proximity sensor
    • Compatible with LoRaWANTM Class A
    • Using frequency hopping spread spectrum technology
    • Configure parameters through third-party platform
    • Read data and set alarms via SMS text and email (optional)
    • Applicable to third-party platforms: Actility / ThingPark, TTN, MyDevices / Cayenne
    • The product has low power consumption and supports longer battery life

    Note:
    The battery life is determined by the frequency reported by the sensor and other variables, please refer to http://www.netvox.com.tw/electric/electric_calc.html .
    On this website, users can find various types of batteries with different configurations.

              Specifications for R313LA-Wireless Infrared Proximity Sensor

              LoRaWAN
              Configuration Interface UART
              Uncategorized
              Frequency band AS923 or AU915 or EU868 or US915
              Waterproof IP30
              Class Class A
              Power type 2 pcs 3.0V CR2450 button batteries
              Sleep Power consumption 12uA
              Rx Sensitivity -136dBm
              Transmit Power 16dBm
              Chipset SX1276
              Sensors Infra sensor
              This is a preview of the recently viewed products by the user.
              Once the user has seen at least one product this snippet will be visible.

              Recently viewed Products


              Electric:

              Input power supply

              2 sections of 3V CR2450 coin cell batteries in parallel
              (single CR2450 battery capacity 620 mAh)

              Working voltage range

              DC +2.4 V to 3.0V

              Sleeping current

              12uA / 3.0V

              Emission current (max)

              120mA / 3.0V

              Receive current (max)

              11mA / 3.0V

              Battery measurement accuracy

              ± 0.1V

              * Specific electrical characteristics will vary depending on the power supply voltage


              Frequency:

              Frequency range

              863MHz-928MHz 470MHz-510MHz

              Power output

              US915   20dbm；
              AS923   16dbm；
              AU915   20dbm；
              CN470   19.15dbm；
              EU868   16dbm；
              KR920   14dbm；
              IN865    20dbm；

              Receive sensitivity

              -136dBm(LoRa，Spreading Factor=12，Bit Rate=293bps )；
              -121dBm(FSK,Frequency deviation=5kHz, Bit Rate=1.2kbps)

              Antenna type

              External antenna

              Communication distance

              Up to 10 km, the actual transmission distance depends on the environment.

              Data transfer rate

              0.3kbps～50k bps

              Modulation system mode

              LoRa / FSK (Note: you can choose one of them)

              Supported LoRaWAN Band

              EU863-870, US902-928, AU915-928, KR920-923, AS923, CN470-510
              (Note: Band optional, to be done in the factory configuration before shipment.)


              Physical:

              Size

              57 mm x 35 mm x 15.2 mm

              Weight

              48.9g

              Operating temperature

              -20°C ～ 55°C

              Ambient humidity range

              <90% RH (no condense)

              Storage temperature range

              -40℃ ～ 85℃
