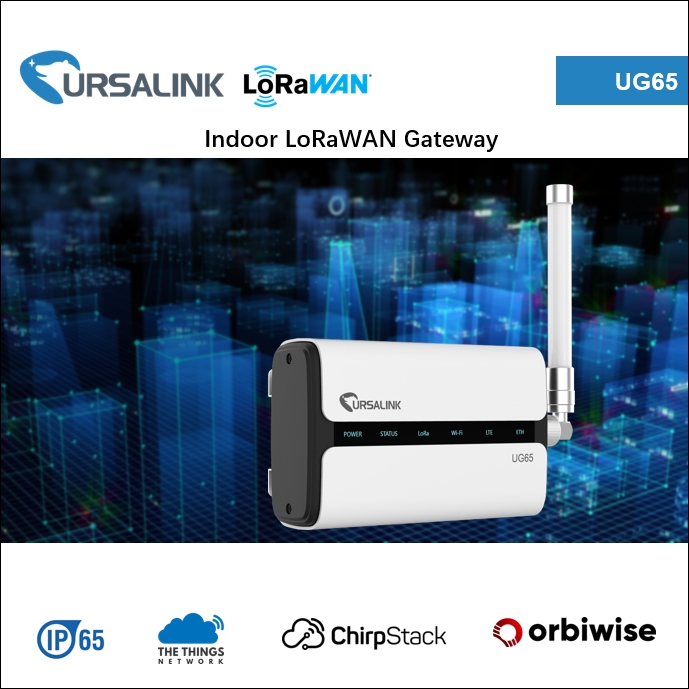

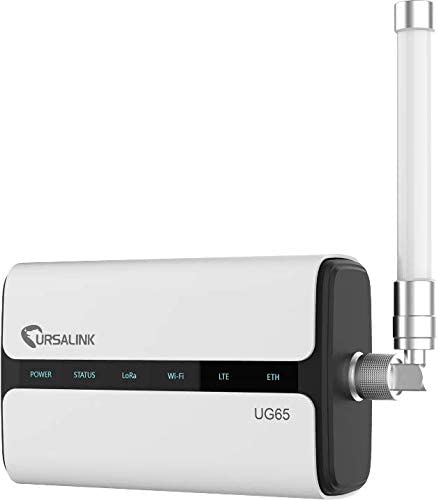

UG65 Indoor LoRaWAN gateway
The Next Generation of Semi-Industrial LoRaWAN Gateway
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Overview
UG65 is a robust 8-channel indoor LoRaWAN® gateway. Adopting SX1302 LoRa chip and high-performance quad-core CPU, UG65 supports connection with more than 2000 nodes. UG65 has a line of sight up to 15km and can cover about 2km in an urbanized environment, which is ideally suited to smart offices, smart buildings, and many other indoor applications. UG65 supports not only multiple back-haul backups with Ethernet, Wi-Fi and cellular but also has integrated mainstream
network servers (such as TTN, ChirpStack, etc.) and built-in network server and Milesight IoT Cloud for easy deployment.
Feature
IP65 rating – dustproof and waterproof
NXP 64-bit Quad-Core processor
Handles a higher amount of traffic with lower consumption
Semtech SX1302 LoRa chip – supports SF5 & SF6
Deep penetration – covering 10,000 to 15,000ft² in city applications
Supports up to 2000 end-devices
Multiple backhaul connectivities. Stay connected via Ethernet, cellular and Wi-Fi.
High compatibility – embedded network server and compatible with network servers
Supported by Milesight IoT Cloud (Android & iOS)
Flexible installation – Wall/ Desktop/ Pole
Specifications for UG65 Indoor LoRaWAN gateway
| LoRaWAN | |
|---|---|
| Extra Antenna | No or 2dBi Antenna |
| PoE | Yes |
| Channels | 8 channels |
| LNS build in | Yes |
| WAN Port | 1Gbps |
| Remote Configure | DeviceHub |
| Uncategorized | |
| Frequency band | AS923 or AU915 or EU868 or IN865 or US915 or Helium AS923 |
| 4G LTE | without 4G LTE or with 4G LTE |
| Chipset | SX1302 |
| Waterproof | IP65 |
Once the user has seen at least one product this snippet will be visible.
Recently viewed Products
| Hardware System | |
| CPU | Quad-core 1.5 GHz, 64-bit ARM Cortex-A53 |
| Memory | 512 MB DDR4 RAM |
| Flash | 8 GB eMMC |
| LoRaWAN® | |
| Antenna | Fully Integrated Internal Antenna (Optional: 1 × 50 Ω N-Female External Antenna Connector) |
| Channel | 8 |
| Frequency Band | AU915/AS923 |
| Sensitivity | -140dBm Sensitivity @292bps |
| Output Power | 27dBm Max |
| Protocol | V1.0 Class A/Class C and V1.0.2 Class A/Class C |
| Ethernet Interface | |
| Port | 1 × RJ45 (PoE PD support) |
| Physical Layer | 10/100/1000 Base-T (IEEE 802.3) |
| Data Rate | Rate 10/100/1000 Mbps (Auto-Sensing) |
| Interface | Auto MDI/MDIX |
| Mode | Full or Half-Duplex (Auto-Sensing) |
| Wi-Fi | |
| Antenna | Fully Integrated and Internal Antenna |
| Standards | IEEE 802.11 b/g/n |
| Tx Power | 802.11b: 18 dBm +/-2.0 dBm (11 Mbps) |
| 802.11g: 15 dBm +/-2.0 dBm (6 Mbps) | |
| 802.11g: 15 dBm +/-2.0 dBm (54 Mbps) | |
| 802.11n@2.4 GHz: 14 dBm +/-2.0 dBm (MCS0_HT20) | |
| 802.11n@2.4 GHz: 14 dBm +/-2.0 dBm (MCS7_HT20) | |
| 802.11n@2.4 GHz: 13 dBm +/-2.0 dBm (MCS0_HT40) | |
| 802.11n@2.4 GHz: 13 dBm +/-2.0 dBm (MCS7_HT40) | |
| Cellular Interface (Optional) | |
| Antenna | Fully Integrated and Internal Antenna |
| SIM Slot | 1 |
| Software | |
| Network Protocols | PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, DDNS,HTTP, HTTPS, DNS, ARP, SNTP, Telnet, SSH, MQTT, etc. |
| VPN Tunnel | OpenVPN/IPsec/PPTP/L2TP/GRE/DMVPN |
| Access Authentication | CHAP/PAP/MS-CHAP/MS-CHAPV2 |
| Firewall | ACL/DMZ/Port Mapping/MAC Binding/URL Filter |
| Management | Web, CLI, SMS, On-demand dial-up, DeviceHub, Milesight IoT Cloud |
| Reliability | WAN Failover |
| Power Supply and Consumption | |
| Power Supply | 1. DC Jack Connector for 9-24 VDC power supply |
| 2. 1 × 802.3 af PoE input | |
| Consumption | ≤ 4.2W |
| Physical Characteristics | |
| Ingress Protection | Protection IP65 |
| Dimensions | 180 x 110 x 56.5 mm |
| Mounting | Desktop, Wall or Pole Mounting |
| Others | |
| Reset Button | 1 × RST |
| Console Port | 1 × Type-C Port |
| LED Indicators | 1 × POWER, 1 × STATUS, 1 × LoRa, 1 × Wi-Fi, 1 × LTE, 1 × ETH |
| Built-in | Watchdog, RTC, Timer |
| Certification | CE, FCC |
| Physical Characteristics | |
| Ingress Protection | Protection IP65 |
| Dimensions | 180 x 110 x 56.5 mm |
| Mounting | Desktop, Wall or Pole Mounting |
| Environmental | |
| Operating Temperature | -40°C to +70°C |
| Reduced Cellular Performance Above 60°C | |
| Storage Temperature | -40°C to +85°C |
| Ethernet Isolation | 1.5 kV RMS |
| Relative Humidity | 0% to 95% (non-condensing) at 25°C |
