1. Products
  2. R711 Wireless Temperature and Humidity Sensor
SGD Pricelist
Manufacturing Company :

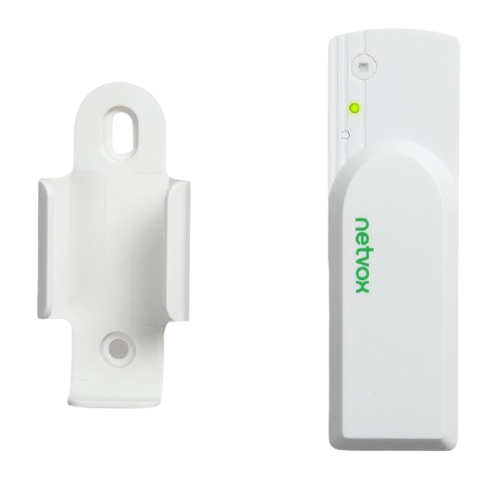

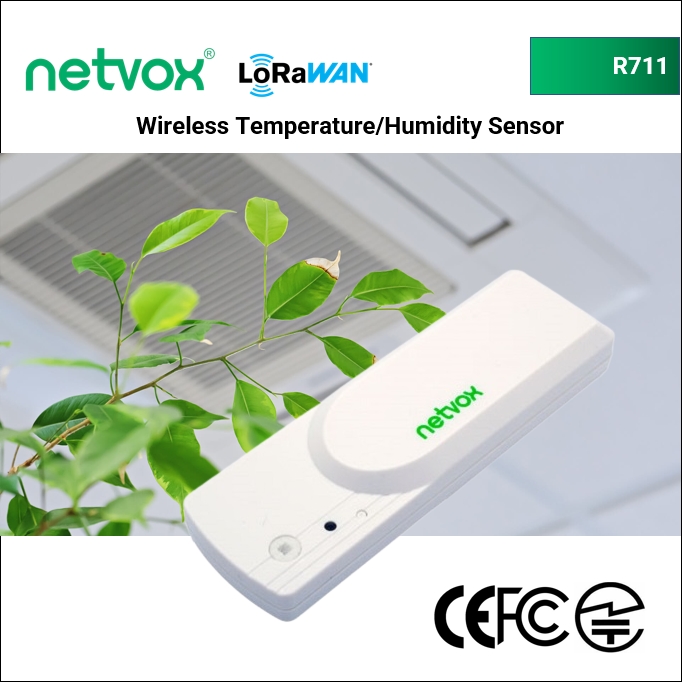

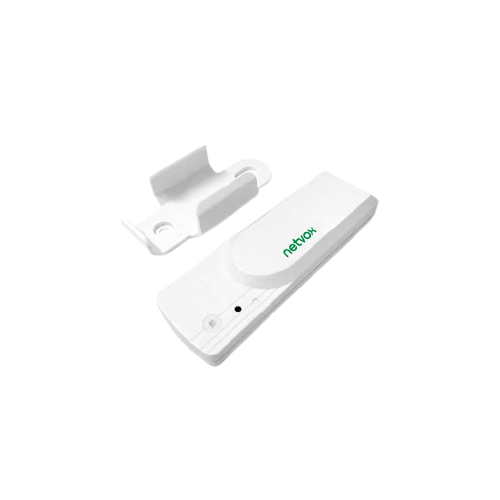

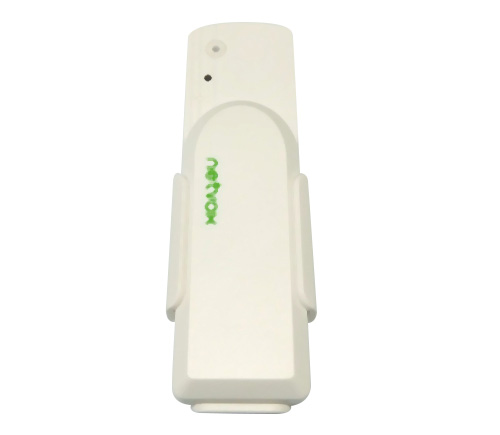

R711 Wireless Temperature and Humidity Sensor

R711 is mainly used to detect the temperature and humidity of indoor air. It transmits the collected data to other devices for display through the wireless network communication module. The device conforms to the LoRa protocol standard.

  • Configuration Interface
  • Waterproof
  • Class
  • Frequency band
  • Power type
  • Sleep Power consumption
  • Rx Sensitivity
  • Sensor Measurement Range
  • TX Power
  • Chipset
  • Certification
  • Sensors

SG$ 107.24

This combination does not exist.

Lead Time : 6.0 weeks

Add to Cart Get Best Price

R711 is mainly used to detect the temperature and humidity of indoor air. It transmits the collected data to other devices for display through the wireless network communication module. The device conforms to the LoRa protocol standard.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Netvox

Netvox pioneers in the development and manufacture of Wireless Sensor Network applications based on LoRaWAN and Zigbee Pro Home Automation profile open standard.  Since 2005, we have developed over 200 LoRaWAN devices and 250 Zigbee devices that are based on worldwide standards to work with existing systems.

There are more than 70 items in our LoRaWAN magnetic-mounted R718 series that comes with an IP 65/67 housing, and most of them are battery powered with long battery life.  For example, the battery life of our Temperature and Humidity Sensor for Low Temperature Environment R718A is more than 5 years based on 25℃, 15-minute report interval, 20dBm Tx power and SF=10.


FIND OUT MORE

Overview

Netvox R711, mainly used to detect the indoor air temperature and humidity, collects the data and sends it to other devices for display through the wireless network communication module. The wireless communication meets standard LoRaWAN™ Protocol (Class A).



    Features

    • Compatible With LoRaWAN™ Protocol
    • 2 X 1.5V AA Alkaline Battery
    • Reports Battery Voltage, Indoor Air Temperature and Humidity
    • Easy Set-Up and Installation



              Specifications for R711 Wireless Temperature and Humidity Sensor

              LoRaWAN
              Configuration Interface UART
              Uncategorized
              Frequency band AS923 or AU915 or EU868 or US915
              Waterproof IP67
              Class Class A
              Power type 2 x 1.5V AA batteries
              Sleep Power consumption 12uA
              Rx Sensitivity -136dBm
              Sensor Measurement Range -20°C ~ 55°C
              TX Power 16dBm
              Chipset SX1276
              Certification FCC/CE/TELEC/LORAWAN
              Sensors Temperature/Humidity
              This is a preview of the recently viewed products by the user.
              Once the user has seen at least one product this snippet will be visible.

              Recently viewed Products


              R711 NETVOX LORAWAN WIRELESS INDOOR TEMPERATURE HUMIDITY SENSOR

              Netvox R711, mainly used to detect the indoor air temperature and humidity, collects the data and sends it to other devices for display through the wireless network communication module. The wireless communication meets standard LoRaWAN™ Protocol (Class A).

              Frequency Range: AU915-928，AS923

              FEATURES:

              • Compatible With LoRaWAN™ Protocol
              • 2 X 1.5V AA Alkaline Battery
              • Reports Battery Voltage, Indoor Air Temperature and Humidity
              • Easy Set Up and Installation

                Electric

                Input Power

                2 X 1.5V AA Batteries

                Operating Power

                DC 2.4V～3V

                Standby Current

                12uA/3V

                Transmitting Current (Max)

                120mA/3V

                Receiving Current (Max)

                11mA/3V


                Physical

                Dimension

                L:112mm*W:34mm*H:17mm

                Weight

                83.8g

                Operating Humidity

                ＜90%RH

                Operating Temperature

                -20°C - 55°C

                Storage Temperature

                -40°C － 85°C

                Temperature Measurement Range

                -20°C － 55°C

                Temperature Measurement Accuracy

                ±0.5°C @25°C    Max. +/-0.8°C@ -20°C~55°C

                Humidity Measurement Range

                10%RH － 0%RH

                Humidity Measurement  Accuracy

                ±4%RH @25°C
