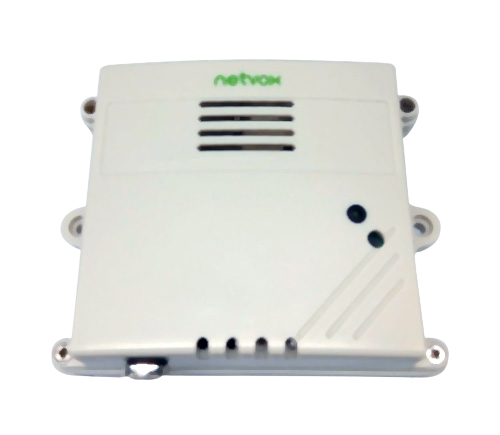

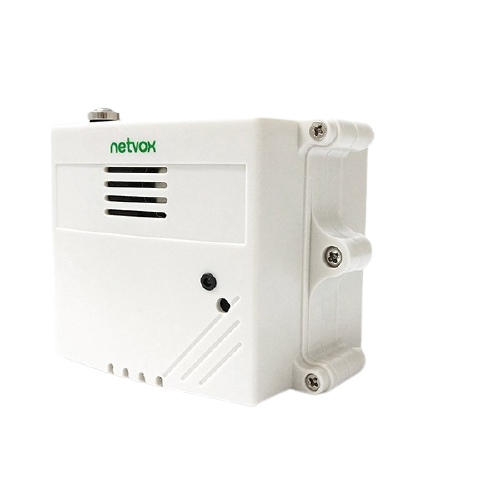

R72615A Wireless CO2/Temperature/Humidity Sensor

Manufacturing Company :

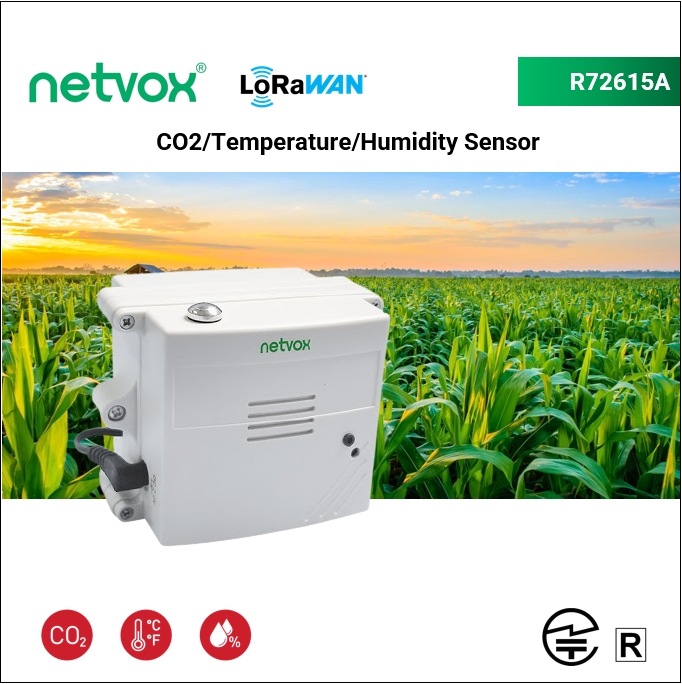

R72615A Wireless CO2/Temperature/Humidity Sensor

Netvox R72616A is mainly used to measure PM2.5, ambient temperature and humidity in an indoor environment, communicating over the LoRaWAN™ Protocol (Class A). R72616A carries a PM2.5 sensor that can be used to obtain the concentration of suspended particles per unit volume in the air. R72616A is LoRaWAN™ Certified.

Class
Frequency band
Power type
Sleep Power consumption
Rx Sensitivity
Sensor Measurement Range
TX Power
Chipset
Sensors

SG$ 428.98

This combination does not exist.

Lead Time : 5.0 weeks

Add to Cart Get Best Price

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Netvox

Netvox pioneers in the development and manufacture of Wireless Sensor Network applications based on LoRaWAN and Zigbee Pro Home Automation profile open standard. Since 2005, we have developed over 200 LoRaWAN devices and 250 Zigbee devices that are based on worldwide standards to work with existing systems.

There are more than 70 items in our LoRaWAN magnetic-mounted R718 series that comes with an IP 65/67 housing, and most of them are battery powered with long battery life. For example, the battery life of our Temperature and Humidity Sensor for Low Temperature Environment R718A is more than 5 years based on 25℃, 15-minute report interval, 20dBm Tx power and SF=10.

FIND OUT MORE

Overview

R72615A has a temperature and humidity sensor that detects and transmits ambient temperature and humidity data. It applies wireless communication method that uses the SX1276 wireless communication module. The R72615A has a CO2 sensor that detects the concentration of CO2 in the air.

Features

Frequency Hopping Spread Spectrum (FHSS)
Improved interference immunity
Improved power management for longer battery life
Encrypt-RF™ Security (Diffie-Hellman Key Exchange + AES-128 CBC for sensor data messages)
Battery Life*2:
Please refer to web: http://www.netvox.com.tw/electric/electric_calc.html
On this website, users can find battery life for varier models at different configurations.
Over-the-air updates (future)
Third-Party online wireless sensor monitoring and notification system to configure sensors, view data, and set alerts via SMS text and email (optional)
Available third-party platform: Actility/ThingPark, TTN, MyDevices/Cayenne
*1. Actual range may vary depending on environment.
*2. Battery life is determined by sensor reporting frequency and other variables.

Specifications for R72615A Wireless CO2/Temperature/Humidity Sensor

Frequency band	AS923 or AU915 or EU868 or US915
Class	Class A
Power type	8 Sections Of ER14505
Sleep Power consumption	250uA
Rx Sensitivity	-136dBm
Sensor Measurement Range	0-5000ppm
TX Power	16dBm
Chipset	SX1276
Sensors	CO2/Temperature/Humidity

The R72615 is equipped with a temperature and humidity sensor that detects and transmits ambient temperature and humidity data. It is a wireless communication method that uses the SX1276 wireless communication module. The R72615 has a CO2 sensor that detects the concentration of CO2 in the air.

Features

•Compatible with LoRaWAN™ protocol
•Detection of water leak detection line contact with the water location
•Power supply: DC 12V
•Adopt SX1276 wireless communication module
•Compatible with LoRaWANTM Class A
•Frequency hopping spread spectrum technology
•Configuring parameters and reading data via the third-party software platforms, and set alarms via SMS text and email (optional)
•Applicable to the third-party platforms: Actility/ ThingPark/ TTN/ MyDevices/ Cayenn
Electric:

Power Supply	DC12V/1A
Operating Current 1	40mA (no radio frequency signal transmission)
Operating Current 2	80mA (a radio frequency signal emission)
Position Water Leak Detector	100m (max);
Leak Detection Error Range	1% ± 0.5 meters of sensor cable length

Frequency:

Frequency Range	863MHz-928MHz 470MHz-510MHz
TX Power	US915 20dbm； AS923 16dbm； AU915 20dbm； CN470 19.15dbm； EU868 16dbm； KR920 14dbm； IN865 20dbm；
Receiving Sensitivity	-136dBm（LoRa，Spreading Factor=12，Bit Rate=293bps )； -121dBm (FSK,Frequency deviation=5kHz, Bit Rate=1.2kbps)
Antenna Type	Built-in antenna
Communication Distance	Up to 10 km (visible linear obstacle-free transmission distance , actual transmission distance depends on the environment )
Data Transfer Rate	0.3kbps～50kbps
Modulation	LoRa/FSK (Note: You can choose one of them)
Supportable LoRaWAN Band	EU863-870,US902-928,AU915-928,KR920-923,AS923-1,AS923-2,AS923-3, IN865-867,CN470-510 (Note: The frequency band is optional and needs to be configured before shipment)
