  2. RA0730Y Wireless Wind speed sensor/Wind direction sensor/Temperature/Humidity Sensor
SGD Pricelist
Manufacturing Company :

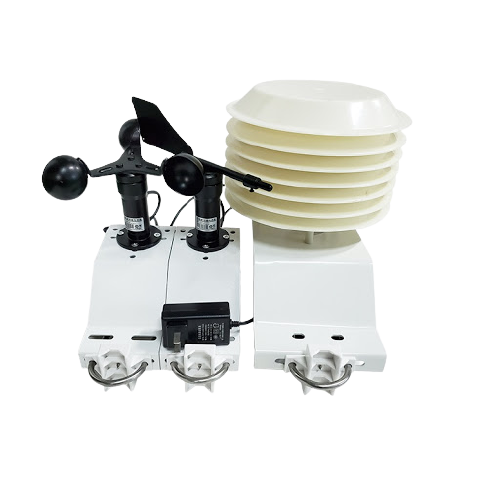

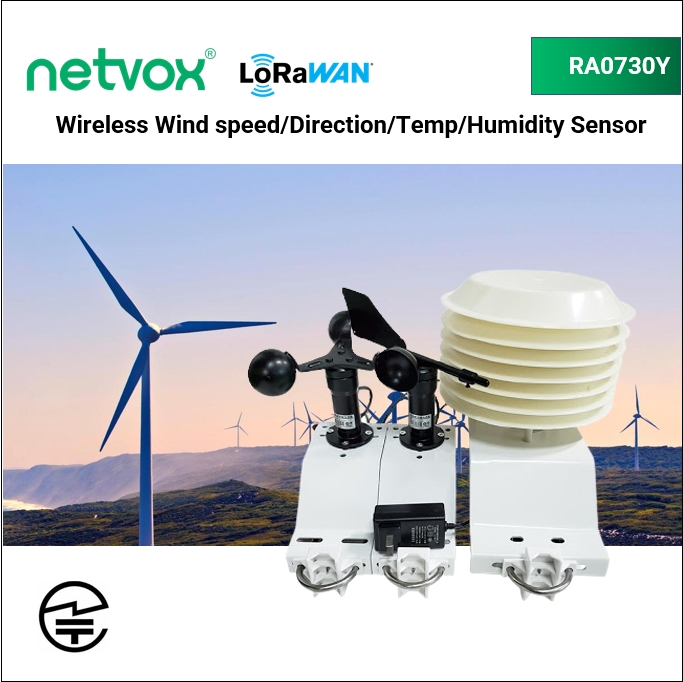

RA0730Y Wireless Wind speed sensor/Wind direction sensor/Temperature/Humidity Sensor

RA0730Y is equipped with wind speed sensor, wind direction sensor, and temperature and humidity sensor. It can detect and send the data of the wind speed, wind direction, temperature and humidity of the environment.

  • Waterproof
  • Class
  • Frequency band
  • Power type
  • Sleep Power consumption
  • Rx Sensitivity
  • Sensor Measurement Range
  • TX Power
  • Chipset
  • Certification
  • Sensors

SG$ 539.45

This combination does not exist.

Lead Time : 5.0 weeks

Add to Cart Get Best Price

RA0730Y is equipped with wind speed sensor, wind direction sensor, and temperature and humidity sensor. It can detect and send the data of the wind speed, wind direction, temperature and humidity of the environment.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Netvox

Netvox pioneers in the development and manufacture of Wireless Sensor Network applications based on LoRaWAN and Zigbee Pro Home Automation profile open standard.  Since 2005, we have developed over 200 LoRaWAN devices and 250 Zigbee devices that are based on worldwide standards to work with existing systems.

There are more than 70 items in our LoRaWAN magnetic-mounted R718 series that comes with an IP 65/67 housing, and most of them are battery powered with long battery life.  For example, the battery life of our Temperature and Humidity Sensor for Low Temperature Environment R718A is more than 5 years based on 25℃, 15-minute report interval, 20dBm Tx power and SF=10.


FIND OUT MORE

Overview

RA0730Y is equipped with a wind speed sensor, wind direction sensor, and temperature and humidity sensor. It can detect and send the data of the wind speed, wind direction, temperature and humidity of the environment.


          Feature

          • Adopt SX1276 wireless communication module
          • Wind speed detection
          • Wind direction detection
          • Temperature and humidity detection
          • Compatible with LoRaWANTM Class A
          • Frequency hopping spread spectrum technology
          • Configuring parameters and reading data via the third-party software platforms, and set alarms via SMS text and email (optional)
          • Applicable to third-party platforms: Actility/ThingPark, TTN, MyDevices/Cayenne

                    Specifications for RA0730Y Wireless Wind speed sensor/Wind direction sensor/Temperature/Humidity Sensor

                    Frequency band AS923 or AU915 or EU868 or US915
                    Waterproof IP67
                    Class Class A
                    Power type DC12V/1A
                    Sleep Power consumption 30mA
                    Rx Sensitivity -136dBm
                    Sensor Measurement Range 0-30 m/s
                    TX Power 16dBm
                    Chipset SX1276
                    Certification TELEC
                    Sensors Wind speed/Direction/Temperature/humidity
                    This is a preview of the recently viewed products by the user.
                    Once the user has seen at least one product this snippet will be visible.

                    Recently viewed Products


                    Introduction

                    RA0730Y is equipped with a wind speed sensor, wind direction sensor, and temperature and humidity sensor. It can detect and send the data of the wind speed, wind direction, temperature and humidity of the environment. It adopts a wireless communication method and conforms to the LoRa protocol standard. It can detect the four elements of the air.

                    Features

                    • Temperature and humidity detection

                    • Wind speed detection

                    • Wind direction detection

                    • Compatible with LoRaWANTM Class A

                    • Frequency hopping spread spectrum

                    • Configuring parameters and reading data via the third-party software platforms, and set alarms via SMS text and email (optional)

                    • Applicable to the third-party platforms: Actility/ThingPark, TTN, MyDevices/Cayenne

                    Electric:

                    Power Supply

                    DC12V/1A

                    Temperature Measurement Range

                    -20°C ~ 55°C

                    Temperature Measurement Accuracy

                    ±1.5°C @25°C

                    Humidity Measurement Range

                    0%RH~100%RH　

                    Humidity Measurement Accuracy

                    ±12%RH @25°C

                    Wind Speed Sensor Measurement Range

                    0-30 m/s

                    Wind Direction Sensor

                    sixteen bearings


                    Frequency:

                    Frequency Range

                    863MHz-928MHz 470MHz-510MHz

                    TX Power

                    US915 20dbm；
                    AS923 16dbm；
                    AU915 20dbm；
                    CN470 19.15dbm；
                    EU868 16dbm；
                    KR920 14dbm；
                    IN865 20dbm；

                    Receiving Sensitivity

                    -136dBm（LoRa，Spreading Factor=12，Bit Rate=293bps )；
                    -121dBm (FSK,Frequency deviation=5kHz, Bit Rate=1.2kbps)

                    Antenna Type

                    Built-in antenna

                    Communication Distance

                    Up to 10 km
                    (visible linear obstacle-free transmission distance , actual transmission distance depends on the environment )

                    Data Transfer Rate

                    LoRa: 0.3kbps～50kbps
                    FSK: 1.2kbps～300kbps

                    Modulation

                    LoRa/FSK (Note: You can choose one of them)

                    Supportable LoRaWAN Band

                    EU863-870,US902-928,AU915-928,KR920-923,AS923-1,AS923-2,AS923-3,
                    IN865-867,CN470-510

                    (Note: The frequency band is optional and needs to be configured before shipment)


                    Physical:

                    Operating Temperature

                    -20℃ ～ 55℃

                    Environment Humidity Range

                    <90% RH (No condensation)

                    Storage Temperature

                    -40℃ ～ 85℃
