  2. Raven 3104 4-port USB 3.1, 200m Multimode Fiber Extender System
SGD Pricelist
Manufacturing Company :

Raven 3104 4-port USB 3.1, 200m Multimode Fiber Extender System

The Raven 3104 extender system includes: Local Extender (LEX) Remote Extender (REX) USB 3.1 Gen 1 Cable LEX 24V DC 1A International Power Adapter REX 24V DC 2.71A International Power Adapter 2 x Country Specific Power Cords Quick Start Guide Two year warranty

  • USB standard
  • Distance
  • Power Adapter
  • USB ports
  • Transmission Media
  • Power Adapter Location

SG$ 1,718.60

This combination does not exist.

Lead Time : 34.0 weeks

Add to Cart Get Best Price

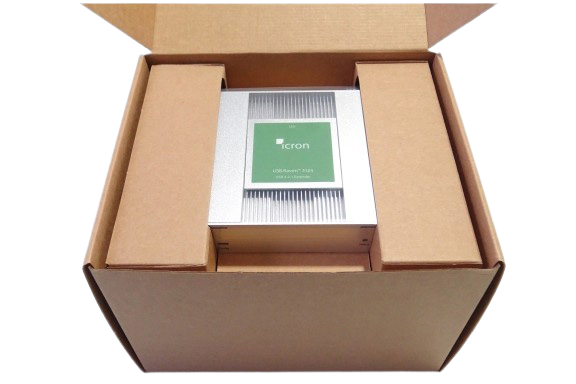

The Raven 3104 extender system includes:

Local Extender (LEX)
Remote Extender (REX)
USB 3.1 Gen 1 Cable
LEX 24V DC 1A International Power Adapter
REX 24V DC 2.71A International Power Adapter
2 x Country Specific Power Cords
Quick Start Guide
Two year warranty

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Icron

Icron is a Maxim Integrated brand, as well as a leading global developer and manufacturer of high-performance USB and video extension solutions for commercial and industrial markets including Medical, Military, Industrial Automation, Machine Vision, ProAV, Education, and Mining/Exploration.



FIND OUT MORE

Overview

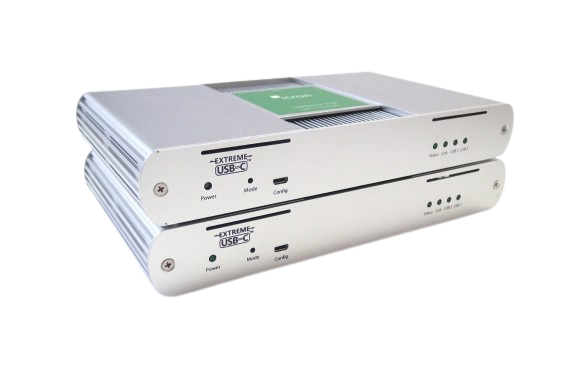

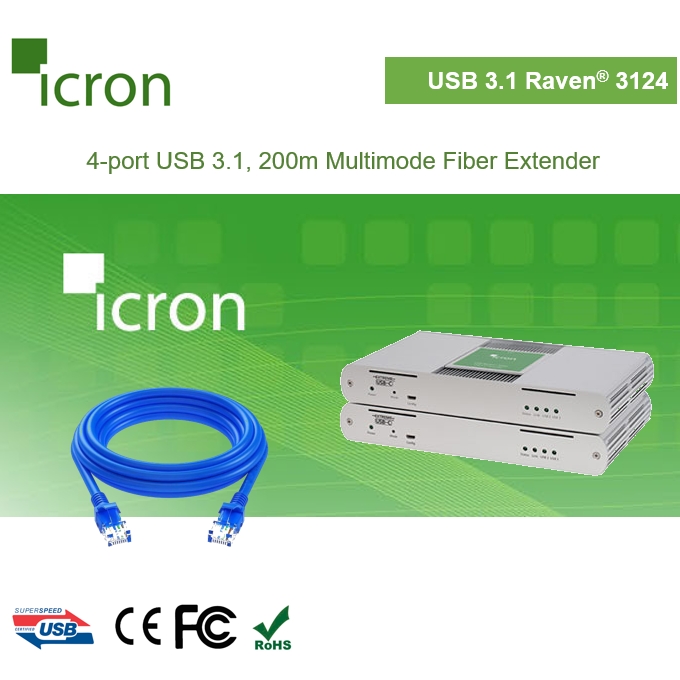

The Icron USB  3-2-1 Raven™ 3124 allows users to extend all USB 3.1 Gen 1 (5 Gbps) device types and is backward compatible to USB 2.0 and 1.1 across a point-to-point connection up to 200m over a single duplex Multimode Fiber cable.


This 4-port USB 3.1 extender supports data rates at up to 5 Gbps and is plug and play – no software drivers required – for all major operating systems: Windows®, macOS™, Linux®, and Chrome OS™.


Additionally, this ExtremeUSB-C™ based Multimode Fiber USB 3.1 extender system is FCC/CE Class B certified and ideal for use with all USB peripherals including USB 3.1 conferencing cameras, flash drives, hard drives, keyboards, mice, interactive whiteboards, touchscreens, docking stations, USB to video converters, audio devices, and any other USB 3, 2 and 1 device.

Features

  • USB 3.1 Gen 1 data rate up to 5 Gbps

  • Integrated four-port USB 3.1 hub supporting all USB 3.1, 2.0, 1.1 devices simultaneously at full bandwidth

  • Up to 1.2A (6W) per USB port

  • 100 Mbps Ethernet channel; LAN pass-through

  • Single cable, OM3 Multimode Fiber up to 200m

  • Point-to-point connection

  • FCC and CE (Class B) compliance

  • Electrical isolation

  • Two-year warranty

  • ExtremeUSB-C™ suite of features:

  • Transparent USB extension supporting USB 3, 2 and 1

  • True plug and play; no software drivers required

  • Works with all major operating systems:  Windows®, macOS™, Linux® and Chrome OS™

Specifications for Raven 3104 4-port USB 3.1, 200m Multimode Fiber Extender System

USB Extender
USB standard USB 3.1
Distance 200m
Uncategorized
Power Adapter Europe or Australia or Japan or North America or Unit Kingdom
USB ports 4 USB ports
Transmission Media Multimode Fiber
Power Adapter Location LEX and REX
This is a preview of the recently viewed products by the user.
Once the user has seen at least one product this snippet will be visible.

Recently viewed Products


Overview

The Icron USB  3-2-1 Raven™ 3124 allows users to extend all USB 3.1 Gen 1 (5 Gbps) device types and is backward compatible to USB 2.0 and 1.1 across a point-to-point connection up to 200m over a single duplex Multimode Fiber cable.

This 4-port USB 3.1 extender supports data rates at up to 5 Gbps and is plug and play – no software drivers required – for all major operating systems: Windows®, macOS™, Linux®, and Chrome OS™.

Additionally, this ExtremeUSB-C™ based Multimode Fiber USB 3.1 extender system is FCC/CE Class B certified and ideal for use with all USB peripherals including USB 3.1 conferencing cameras, flash drives, hard drives, keyboards, mice, interactive whiteboards, touchscreens, docking stations, USB to video converters, audio devices, and any other USB 3, 2 and 1 device.

Features

  • USB 3.1 Gen 1 data rate up to 5 Gbps
  • Integrated four-port USB 3.1 hub supporting all USB 3.1, 2.0, 1.1 devices simultaneously at full bandwidth
  • Up to 1.2A (6W) per USB port
  • 100 Mbps Ethernet channel; LAN pass-through
  • Single cable, OM3 Multimode Fiber up to 200m
  • Point-to-point connection
  • FCC and CE (Class B) compliance
  • Electrical isolation
  • Two-year warranty
  • ExtremeUSB-C™ suite of features:
    • Transparent USB extension supporting USB 3, 2 and 1
    • True plug and play; no software drivers required
    • Works with all major operating systems:  Windows®, macOS™, Linux®, and Chrome OS™


Specifications

RANGE

  • Directly connect up to 200m (656 ft) over OM3 or better Multimode Fiber

SPEEDS

  • USB 3.1: up to 5 Gbps
  • USB 2.0: up to 480 Mbps
  • USB 1.1: up to 12 Mbps

LEX (Local Extender)

  • 1x USB 3.1 Gen 1 Type B Receptacle
  • 1x RJ45 Ethernet 100 Mbps Port
  • 1x Duplex LC
  • 24V 1A DC Locking Jack
  • Enclosure Material: Silver anodized aluminum
  • Dimensions: 137.3mm x 232.1mm x 33.0mm (5.4″ x 9.1″ x 1.3″)
  • 920g (2.03 lbs.)
  • Mounting: 4 surface mounting holes or optional mounting kit available

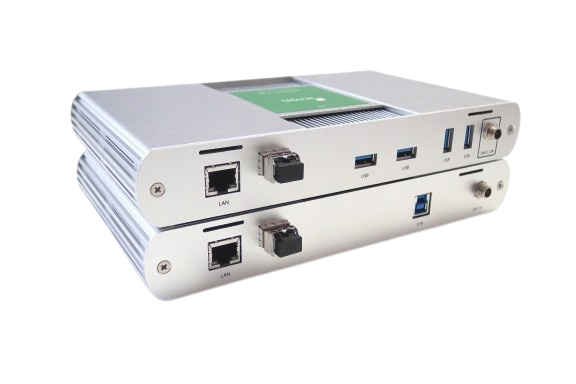

REX (Remote Extender)

  • 4x USB 3.1 Gen 1 Type-A Receptacles
  • 1x RJ45 Ethernet 100 Mbps Port
  • 1x Duplex LC
  • 24V 2.71A DC Locking Jack
  • Available Current: up to 1.2A (6W) per USB port
  • Enclosure Material: Silver anodized aluminum
  • Dimensions: 137.3mm x 232.1mm x 33.0mm (5.4″ x 9.1″ x 1.3″)
  • 990g (2.18 lbs.)
  • Mounting: 4 surface mounting holes or optional mounting kit available

ENVIRONMENTAL

  • Operating Temperature: 0C to 50C (32F to 122F)
  • Storage Temperature: -20C to 70C (-4F to 158F)
  • Operating Humidity: 20% to 80% relative humidity, non-condensing
  • Storage Humidity: 10% to 90% relative humidity, non-condensing

COMPLIANCE

  • EMC: FCC (Class B), CE (Class B)
  • Environmental: RoHS2, REACH, Conflict Minerals

SUPPORT

  • Warranty: 2-year

Applications

Icron USB 3-2-1 Raven 3124 200m MMF Fiber Point-to-Point Extender System Application Diagram
