Manufacturing Company :

450-470 MHz Phantom Antenna Permanent Mount

  • Gain
  • Frequency
  • Mounting method
  • Bandwidth
  • Power (watts)
  • Whip Material
  • Connector Type
  • Warranty

SG$ 120.16

This combination does not exist.

Add to Cart Get Best Price

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Laird Connectivity

Laird Connectivity simplifies the enablement of wireless technologies with market-leading wireless modules and antennas, integrated sensor and gateway platforms, and customer-specific wireless solutions. Our best-in-class support and comprehensive engineering services help reduce risk and improve time-to-market. When you need unmatched wireless performance to connect electronics with security and confidence, Laird Connectivity delivers — no matter what.

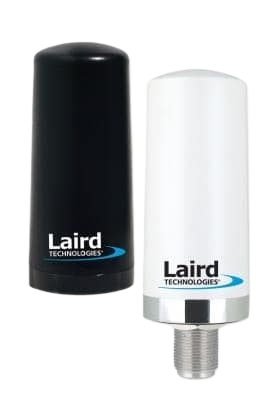

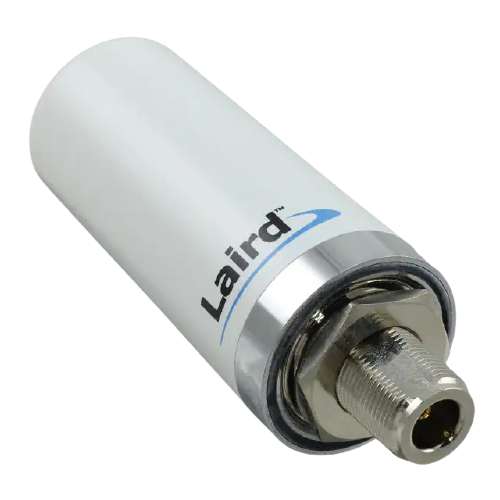

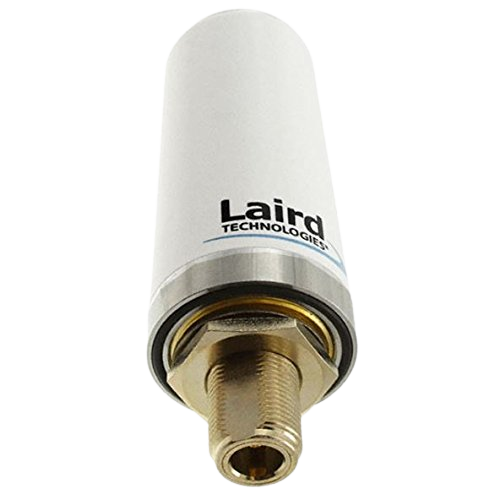

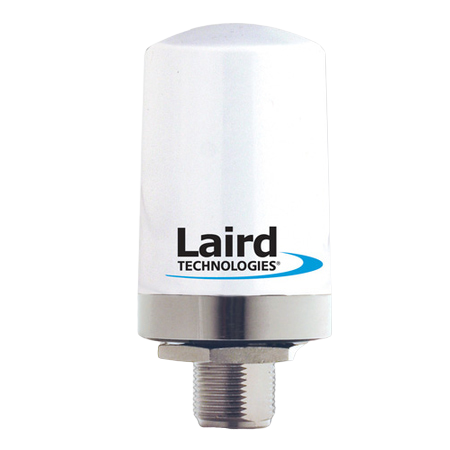

Laird's unique patented Phantom® is a tough antenna for outdoor or indoor applications. Measuring only 3.4” tall, the Phantom UHF antenna’s revolutionary design features vertical polarization components. The Phantom®provides low visibility, wide bandwidth, and a low angle radiation pattern that is superior to traditional gain antennas in most applications. The industry standard NMO mounting socket mates with all Laird magnetic, trunk lid, and hole mounts. A threaded permanent stud mount model is also available for vandal-resistant mounting on brackets, panels, ceilings, or any other kind of housing. The Phantom® patented technology is beneficial when high performance is desired and extreme ruggedness and low profile is required


  • Phantom® outperforms a 3dB whip in many applications

  • U.S. Patent Nos. 5,977,931 – 6,292,156 and 7,209,096


Specifications for 450-470 MHz Phantom Antenna Permanent Mount

Gain 3dBi
Frequency 450~470MHz
Mounting method Permanent Mount
Bandwidth 20 MHz
Power (watts) 200
Whip Material High grade plastic
Connector Type N-Female
Warranty 2 Year
