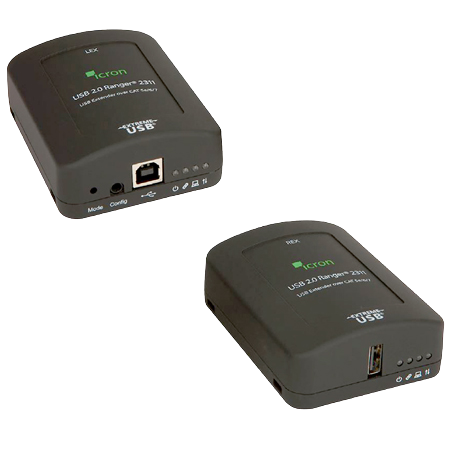

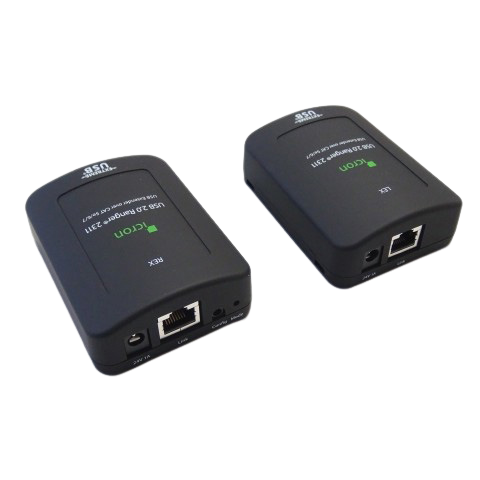

USB 2.0 Ranger® 2311 Single Port CAT 5e/6/7 100m Extender

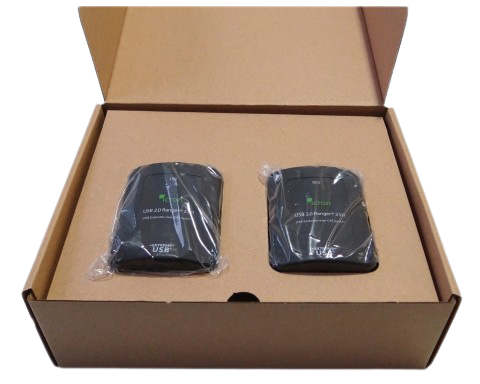

The Ranger 2311 comes with the following items in the box: Remote extender (REX) Local extender (LEX) 1 x USB 2.0 Type A to Type B cable 100-240V power adapter Country specific power cord Quick start guide *Please be aware that the Ranger 2311 does NOT come with a CAT5e cable.
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Overview
The USB 2.0 Ranger® 2311 allows users to extend USB 2.0/1.1 connections up to 330 ft (100m) over a single CAT 5e/6/7 cable.
This USB 2.0 extender with flexible power provides installers the choice of applying power at either the LEX or REX, wherever most convenient. The Ranger 2311 is plug and play – no software drivers required – and works with all major operating systems: Windows®, macOSTM, and Linux®
Additionally, this ExtremeUSB® based extension system is ideal for use with all USB peripherals including keyboards, mice, interactive whiteboards, flash drives, hard drives, audio devices, web cameras, and any other USB 2.0 or 1.1 devices.
Features
- USB 2.0 extender with flexible power – connect the power adapter to either the LEX or REX
- Supplies up to 1 Amp to the USB port
- Mass Storage Acceleration for USB 2.0 device bulk transfers
- Supports all USB 2.0/1.1 devices up to 480 Mbps
- Two-year warranty
- ExtremeUSB® suite of features:
- Transparent USB extension
- True plug and play; no software drivers required
- Works with all major operating systems: Windows®, macOSTM, and Linux®
Specifications for USB 2.0 Ranger® 2311 Single Port CAT 5e/6/7 100m Extender
USB Extender | |
---|---|
USB standard | USB 2.0 |
Distance | 100m |
Uncategorized | |
Power Adapter | Europe or Australia or Japan or North America or Unit Kingdom |
USB ports | 1 USB ports |
Transmission Media | CAT 5e/6/7 |
Power Adapter Location | LEX and REX |
Once the user has seen at least one product this snippet will be visible.
Recently viewed Products
Datasheet
Overview
The USB 2.0 Ranger® 2311 allows users to extend USB 2.0/1.1 connections up to 330 ft (100m) over a single CAT 5e/6/7 cable.
This USB 2.0 extender with flexible power provides installers the choice of applying power at either the LEX or REX, wherever most convenient. The Ranger 2311 is plug and play – no software drivers required – and works with all major operating systems: Windows®, macOSTM, and Linux®
Additionally, this ExtremeUSB® based extension system is ideal for use with all USB peripherals including keyboards, mice, interactive whiteboards, flash drives, hard drives, audio devices, web cameras, and any other USB 2.0 or 1.1 devices.
Features
- USB 2.0 extender with flexible power – connect the power adapter to either the LEX or REX
- Supplies up to 1 Amp to the USB port
- Mass Storage Acceleration for USB 2.0 device bulk transfers
- Supports all USB 2.0/1.1 devices up to 480 Mbps
- Two-year warranty
- ExtremeUSB® suite of features:
- Transparent USB extension
- True plug and play; no software drivers required
- Works with all major operating systems: Windows®, macOSTM, and Linux®
Specifications
RANGE
- Direct connect up to 100m (330 ft) over CAT 5e/6/7
SPEEDS
- USB 2.0: up to 480 Mbps
- USB 1.1: up to 12 Mbps
POWER
- Power Supply: 100-240V AC Input, 24V 1A DC Output. Apply at either LEX or REX.
LEX (Local Extender)
- USB Connector: 1 x USB Type B Receptacle
- Link Connector: 1 x RJ45
- Dimensions: 65.0mm x 87.5mm x 30.0mm (2.6″ x 3.4″ x 1.2″)
- Mounting: Slots for cable ties
- Enclosure Material: Black ABS with rubberized coating
REX (Remote Extender)
- USB Connector: 1 x USB Type A Receptacle
- Link Connector: 1 x RJ45
- Available Current: up to 1 Amp to USB port
- Dimensions: 65.0mm x 87.5mm x 30.0mm (2.6″ x 3.4″ x 1.2″)
- Mounting: Slots for cable ties
- Enclosure Material: Black ABS with rubberized coating
ENVIRONMENTAL
- Operating Temperature: 0C to 50C (32F to 122F)
- Storage Temperature: -20C to 70C (-4F to 158F)
- Operating Humidity: 20% to 80% relative humidity, non-condensing
- Storage Humidity: 10% to 90% relative humidity, non-condensing
COMPLIANCE
- EMC: FCC (Class A), CE (Class A)
- Environmental: RoHS2, REACH, Conflict Minerals
- Safety: Flammability V-0
SUPPORT
- Warranty: 2-year
Applications
- Industrial Control
- Interactive whiteboard
- Keyboard and mouse extension
- Sensor/data acquisition
- Webcam extension
