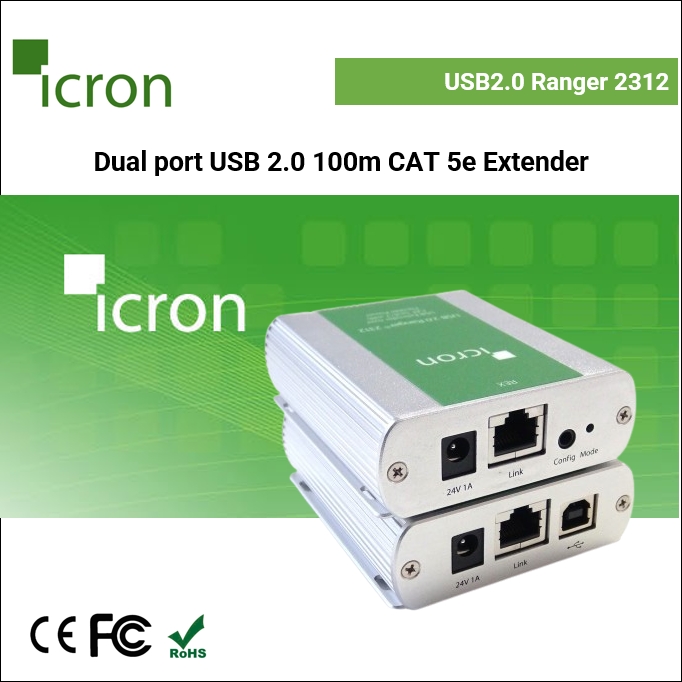

USB 2.0 Ranger® 2312 Dual port CAT 5e/6/7 100 meter extender

The Ranger 2312 comes with the following items in the box: Remote extender (REX) Local extender (LEX) 1 x USB 2.0 Type A to Type B cable 100-240V power adapter Country specific power cord Quick start guide *Please be aware that the Ranger 2312 does NOT come with a CAT5e cable.

  • USB standard
  • Distance
  • Power Adapter
  • USB ports
  • Transmission Media
  • Power Adapter Location

SG$ 552.67

This combination does not exist.

Lead Time : 20.0 weeks

Add to Cart Get Best Price

The Ranger 2312 comes with the following items in the box:

Remote extender (REX)
Local extender (LEX)
1 x USB 2.0 Type A to Type B cable
100-240V power adapter
Country specific power cord
Quick start guide
*Please be aware that the Ranger 2312 does NOT come with a CAT5e cable.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Icron

Icron is a Maxim Integrated brand, as well as a leading global developer and manufacturer of high-performance USB and video extension solutions for commercial and industrial markets including Medical, Military, Industrial Automation, Machine Vision, ProAV, Education, and Mining/Exploration.



Do something



Overview

The USB 2.0 Ranger® 2312 allows users to extend USB 2.0/1.1 connections up to 330 ft (100m) over a single CAT 5e/6/7 cable.

This dual-port USB 2.0 extender with flexible power provides installers the choice of applying power at either the LEX or REX, wherever most convenient. The Ranger 2312 is plug and play – no software drivers required – and works with all major operating systems: Windows®, macOS™, and Linux®

Additionally, this ExtremeUSB® based extension system is FCC/CE Class B certified and ideal for use with all USB peripherals including keyboards, mice, interactive whiteboards, flash drives, hard drives, audio devices, web cameras, and any other USB 2.0 or 1.1 devices.

Features

  • USB 2.0 extender with flexible power – connect the power adapter to either the LEX or REX
  • Supplies up to 1.5 Amps total when both USB ports are in use
  • Mass Storage Acceleration for USB 2.0 device bulk transfers
  • Supports all USB 2.0/1.1 devices up to 480 Mbps
  • Metal enclosures with FCC/CE Class B certification
  • Two-year warranty
  • ExtremeUSB® suite of features:
    • Transparent USB extension
    • True plug and play; no software drivers required
    • Works with all major operating systems:  Windows®, macOS™M, and Linux®

Specifications for USB 2.0 Ranger® 2312 Dual port CAT 5e/6/7 100 meter extender

USB Extender
USB standard USB 2.0
Distance 100m
Uncategorized
Power Adapter Europe or Australia or Japan or North America or Unit Kingdom
USB ports 2 USB ports
Transmission Media CAT 5e/6/7
Power Adapter Location LEX and REX
This is a preview of the recently viewed products by the user.
Once the user has seen at least one product this snippet will be visible.

Recently viewed Products


Overview

The USB 2.0 Ranger® 2312 allows users to extend USB 2.0/1.1 connections up to 330 ft (100m) over a single CAT 5e/6/7 cable.

This dual-port USB 2.0 extender with flexible power provides installers the choice of applying power at either the LEX or REX, wherever most convenient. The Ranger 2312 is plug and play – no software drivers required – and works with all major operating systems: Windows®, macOS™, and Linux®

Additionally, this ExtremeUSB® based extension system is FCC/CE Class B certified and ideal for use with all USB peripherals including keyboards, mice, interactive whiteboards, flash drives, hard drives, audio devices, web cameras, and any other USB 2.0 or 1.1 devices.

  • USB 2.0 extender with flexible power – connect the power adapter to either the LEX or REX
  • Supplies up to 1.5 Amps total when both USB ports are in use
  • Mass Storage Acceleration for USB 2.0 device bulk transfers
  • Supports all USB 2.0/1.1 devices up to 480 Mbps
  • Metal enclosures with FCC/CE Class B certification
  • Two-year warranty
  • ExtremeUSB® suite of features:
    • Transparent USB extension
    • True plug and play; no software drivers required
    • Works with all major operating systems:  Windows®, macOS™M, and Linux®


Specifications

RANGE

  • Direct connect up to 100m (330 ft) over CAT 5e/6/7

SPEEDS

  • USB 2.0: up to 480 Mbps
  • USB 1.1: up to 12 Mbps

POWER

  • Power Supply: 100-240V AC Input, 24V 1A DC Output. Apply at either LEX or REX.

LEX (Local Extender)

  • USB Connector: 1 x USB Type B Receptacle
  • Link Connector: 1 x RJ45
  • Dimensions: 87.0mm x 75.0mm x 26.0mm (3.4″ x 3.0″ x 1.0″)
  • Mounting: Slots for cable ties or optional mounting kit available
  • Enclosure Material: Silver anodized aluminium

REX (Remote Extender)

  • USB Connector: 2 x USB Type A Receptacle
  • Link Connector: 1 x RJ45
  • Available Current: up to 1 Amp to USB port; 1.5 Amps total shared
  • Dimensions: 87.0mm x 75.0mm x 26.0mm (3.4″ x 3.0″ x 1.0″)
  • Mounting: Slots for cable ties or optional mounting kit available
  • Enclosure Material: Silver anodized aluminium

ENVIRONMENTAL

  • Operating Temperature: 0C to 50C (32F to 122F)
  • Storage Temperature: -20C to 70C (-4F to 158F)
  • Operating Humidity: 20% to 80% relative humidity, non-condensing
  • Storage Humidity: 10% to 90% relative humidity, non-condensing

COMPLIANCE

  • EMC: FCC (Class B), CE (Class B)
  • Environmental: RoHS2, REACH, Conflict Minerals

SUPPORT

  • Warranty: 2-year
