  2. USB 2.0 Ranger 2324 Four-port Multimode Fiber 500m extender
SGD Pricelist
Manufacturing Company :

USB 2.0 Ranger 2324 Four-port Multimode Fiber 500m extender

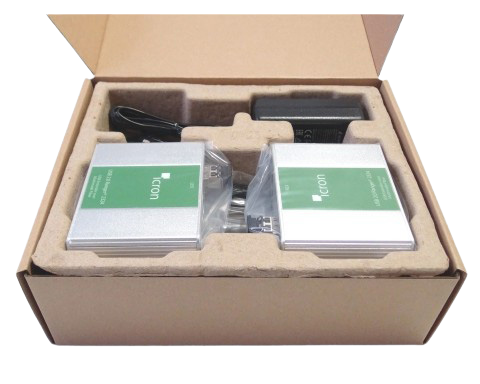

The Ranger 2324 comes with the following items in the box: Remote extender (REX) Local extender (LEX) 1 x USB 2.0 Type A to Type B cable 100-240V power adapter Country specific power cord Quick start guide *Please be aware that the Ranger 2324 does NOT come with a Multi-mode fibre cable.

  • USB standard
  • Distance
  • Power Adapter
  • USB ports
  • Transmission Media
  • Power Adapter Location

SG$ 1,253.43

This combination does not exist.

Lead Time : 20.0 weeks

Add to Cart Get Best Price

The Ranger 2324 comes with the following items in the box:

Remote extender (REX)
Local extender (LEX)
1 x USB 2.0 Type A to Type B cable
100-240V power adapter
Country specific power cord
Quick start guide
*Please be aware that the Ranger 2324 does NOT come with a Multi-mode fibre cable.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Icron

Icron is a Maxim Integrated brand, as well as a leading global developer and manufacturer of high-performance USB and video extension solutions for commercial and industrial markets including Medical, Military, Industrial Automation, Machine Vision, ProAV, Education, and Mining/Exploration.



Do something



Overview

The USB 2.0 Ranger® 2324 allows users to extend USB 2.0/1.1 connections up to 500m using OM2 (or better) fiber optic cable.

This 4-port USB 2.0 multimode fiber extender supports data rates at up to 480 Mbps and is plug and play – no software drivers required – for all major operating systems: Windows®, macOSTM, and Linux®

Additionally, this ExtremeUSB® based USB 2.0 multimode fiber extender system is FCC/CE Class B certified and ideal for use with all USB peripherals including keyboards, mice, interactive whiteboards, flash drives, hard drives, audio devices, web cameras, and any other USB 2.0 or 1.1 devices..

Features

  • 4-port USB 2.0 extender supporting all USB 2.0/1.1 devices up to 480 Mbps
  • Up to 500m extensions using OM2 multimode fiber
  • Integrated hub supplying up to 1 Amp to each USB port; 2.5 Amps total shared
  • Electrical isolation
  • Mass Storage Acceleration for USB 2.0 device bulk transfers
  • Metal enclosures with FCC/CE Class B certification
  • Two-year warranty
  • ExtremeUSB® suite of features:
    • Transparent USB extension
    • True plug and play; no software drivers required
    • Works with all major operating systems:  Windows®, macOSTM, and Linux®

Specifications for USB 2.0 Ranger 2324 Four-port Multimode Fiber 500m extender

USB Extender
USB standard USB 2.0
Distance 500m
Uncategorized
Power Adapter Europe or Australia or Japan or North America or Unit Kingdom
USB ports 4 USB ports
Transmission Media Multimode Fiber
Power Adapter Location LEX and REX
This is a preview of the recently viewed products by the user.
Once the user has seen at least one product this snippet will be visible.

Recently viewed Products


Overview

The USB 2.0 Ranger® 2324 allows users to extend USB 2.0/1.1 connections up to 500m using OM2 (or better) fiber optic cable.

This 4-port USB 2.0 multimode fiber extender supports data rates at up to 480 Mbps and is plug and play – no software drivers required – for all major operating systems: Windows®, macOSTM, and Linux®

Additionally, this ExtremeUSB® based USB 2.0 multimode fiber extender system is FCC/CE Class B certified and ideal for use with all USB peripherals including keyboards, mice, interactive whiteboards, flash drives, hard drives, audio devices, web cameras, and any other USB 2.0 or 1.1 devices.

Features

  • 4-port USB 2.0 extender supporting all USB 2.0/1.1 devices up to 480 Mbps
  • Up to 500m extensions using OM2 multimode fiber
  • Integrated hub supplying up to 1 Amp to each USB port; 2.5 Amps total shared
  • Electrical isolation
  • Mass Storage Acceleration for USB 2.0 device bulk transfers
  • Metal enclosures with FCC/CE Class B certification
  • Two-year warranty
  • ExtremeUSB® suite of features:
    • Transparent USB extension
    • True plug and play; no software drivers required
    • Works with all major operating systems:  Windows®, macOSTM, and Linux®

Specifications

RANGE

  • Direct connect up to 500m (1.640 ft) over multimode OM2; up to 275m (902 ft) over OM1

SPEEDS

  • USB 2.0: up to 480 Mbps
  • USB 1.1: up to 12 Mbps

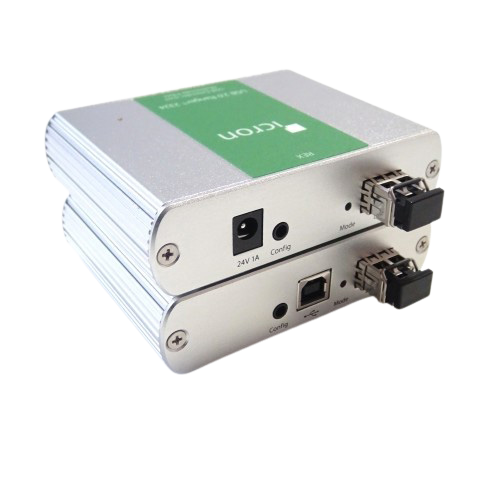

LEX (Local Extender)

  • USB Connector: 1 x USB Type B Receptacle
  • Link Connector: 1 x SFP Duplex LC
  • Dimensions: 100.0mm x 76.0mm x 26.0mm (3.9″ x 3.0″ x 1.0″)
  • Mounting: 4 surface mounting holes or optional mounting kit available
  • Enclosure Material: Silver anodized aluminium

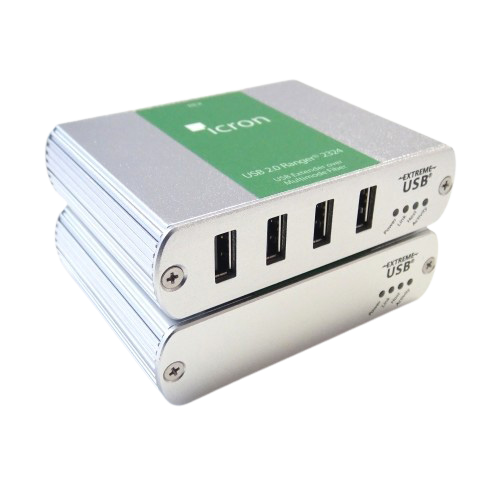

REX (Remote Extender)

  • USB Connector: 4 x USB Type A Receptacles
  • Link Connector:  1 x SFP Duplex LC
  • Available Current: up to 1 Amp to each USB port; 2.5 Amps total shared
  • Power Supply: 100-240V AC Input, 24V 1A DC Output
  • Dimensions: 100.0mm x 76.0mm x 26.0mm (3.9″ x 3.0″ x 1.0″)
  • Mounting: 4 surface mounting holes or optional mounting kit available
  • Enclosure Material: Silver anodized aluminium

ENVIRONMENTAL

  • Operating Temperature: 0C to 50C (32F to 122F)
  • Storage Temperature: -20C to 70C (-4F to 158F)
  • Operating Humidity: 20% to 80% relative humidity, non-condensing
  • Storage Humidity: 10% to 90% relative humidity, non-condensing

COMPLIANCE

  • EMC: FCC (Class B), CE (Class B)
  • Environmental: RoHS2, REACH, Conflict Minerals

SUPPORT

  • Warranty: 2-year

Applications
